Outdoor Slim Programmable RGB LED Wall Washer

Outdoor Slim Programmable RGB LED Wall Washer
Model:LED-WW5525-24
Brand:ISEELED
Origin:Made In China
Category:Consumer Electronics & Lighting / Lighting / Professional Lighting
Label:Outdoor wall washer , RGB LED Wall washer , Programmable RGB Led
Price: US $105 / pc
Min. Order:1 pc

Product Description

IP68 LED Wall Washer

1. Tight waterproof structure

2. International standard DMX 512 Control

3. Optional on Optic Lens

4. Detachable bracket for easy installation and adjustable the wall washer angle

5. Use 3W power LED, high efficient heat conductivity to ensure long lifespan

6. DMX 512 dimming with constant current driver

7. RGB/RGBW dimming available

Application: adapted for all kinds of led lighting control with dmx 512 protocol way.

Model

LED-WW5525-24V3601RGB

LED-WW6269-24V3601RGB

LED-WW8466-24V2401RGB

LED-WW7267-24V3601RGB

Dimension

1012mm*55*25mm

1019mm*62*69mm

1019mm*84*66mm

1000mm*72*67mm

Input Voltage

24V DC

24V DC

24V DC

24V DC

Power

36W

36W

72W

36W

LED QTY

36

36

24

36

LED

Cree LED/ Everlight 1W-3W LED

Edison 3W RGB LED

Cree LED

DMX Driver

DMX 512 high power constant current driver

Dimming

DMX 512

Pixel

1

1

1

1

DMX Channel

1-3CH

3CH

3CH

1-3CH

Housing Material

Aluminum base

Diffuser

Clear Tempered Glass

PC

Temperature

-40℃-+60℃

Color Range

RGB/Red/Green/Blue/Amber/Pink/White/Warm white

LED Lens

16°, 30°, 45°, 60°, 20°*40°, 10°*45°, 10°*80°, 20°*60°

Protection

IP65

IP68

Lifespan

50,000 hours

Weight

2KG

4.5KG

5KG

5KG

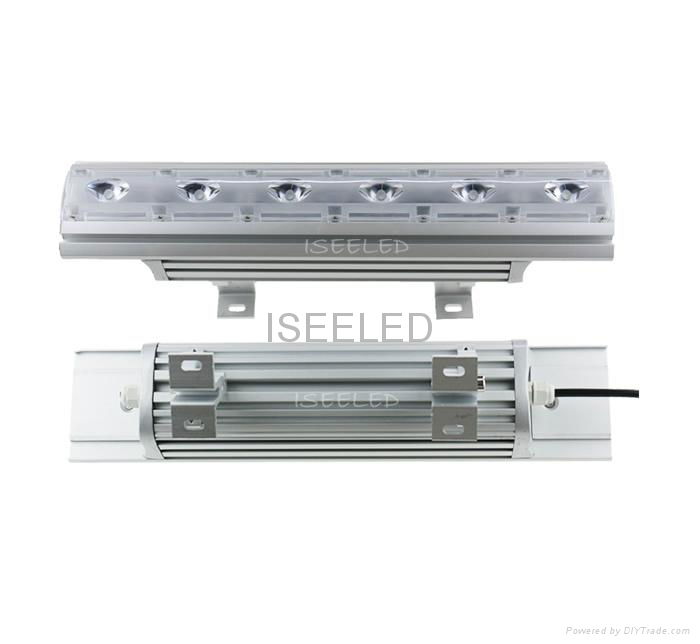

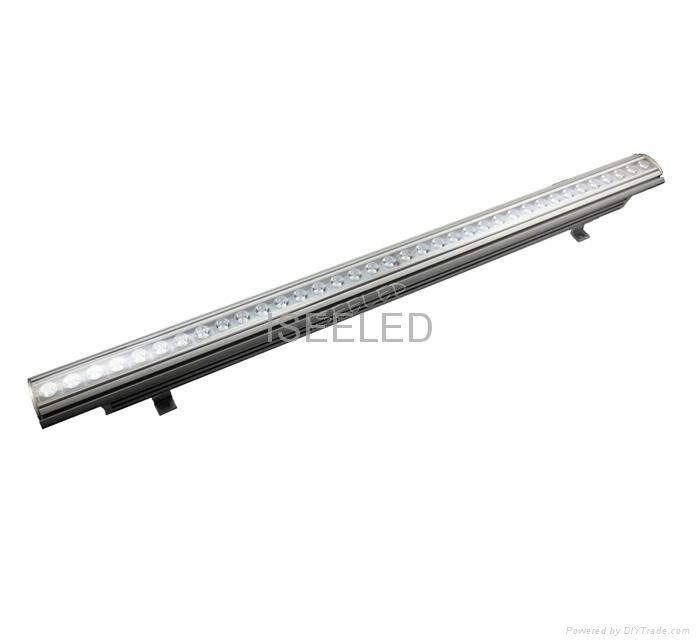

Outdoor Slim Programmable RGB LED Wall Washer  1Outdoor Slim Programmable RGB LED Wall Washer  2Outdoor Slim Programmable RGB LED Wall Washer  3Outdoor Slim Programmable RGB LED Wall Washer  4
