Die Cutting and Creasing Machine

Die Cutting and Creasing Machine
Model:ML series
Brand:KSPACK
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:die cutting machine , creasing machine , flat die cutter
Price: US $9658 / set
Min. Order:1 set

Product Description

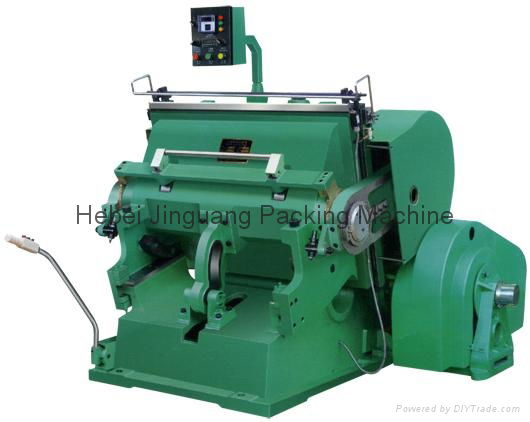

ML series manual feeding die cutting and creasing machine, also called as clam shell die-cutter, is a kind of special equipment for die cutting and creasing a wide range of materials, such as paper, cardboard, corrugated board, plastic sheet and leather. It is applicable to the fields of printing, packaging,decorating and plastic industries. It has been well accepted by the customers from home and abroad due to its outstanding performance, reliable in quality, easy for operating and economical in price.

Features:

1) Sliding bearings are made of high quality alloy cooper, thus to enhance the effect of anti-friction and vibration reducing

2) Flywheel with big moment of force and large pressure

3) High strength due to whole iron casting by using high quality material for machine body

4) Single plate electromagnetic clutch is sensitive and reliable

5) With functions of single piece, continuous and opening delay operating, dwell range is adjustable from 1-10 seconds

6) Operating position is reasonably designed, moving-bed can be open to its maximum

7) Central lubrication system guarantees fine lubrication and reduce friction

8) Safety system is reliable

9) Adjustable chase clamp structure can adapt all kind of die mould plate

10) Easy to operation and maintenance

11) Electric control system is in line with international standard

12)It has three functions for single slitting, successive slitting, time delay. Its can be adjusted

13) CE standard model can be made upon request

Advantages
1. Our die cutting machine uses centralized lubrication pump system
2. It adopts world famous brand electrical components
3. Strengthened construction ensures smooth operation and long service life.
4. The adoption of active plate frame makes it convenient to install die cutting rule and adjust pressure, producing clear and beautiful results.

The technical parameter

Model


Inner Chase Size


Speed


Max.Rule Length


Motor Power


Machine Weight

Overall Dimensions

PYQ401C

750×520mm

25

15m

2.2kw

2000kg

2300×1500×1500mm

PYQ203C

930×670mm

23±3

25m

4kw

3000kg

2350×1900×1800mm

PYQ203A

930×670mm

23±3

30m

5.5kw

3500kg

2350×1900×1800mm

ML1040

1040*720mm

23±3

<28m

4kw

3500kg

2000×2010×1900mm

ML1100

1100×800mm

20±2

30m

5.5kw

4500kg

2450×2100×1900mm

ML1200

1200×820mm

20±2

32m

5.5kw

5000kg

2500×2100×1900mm

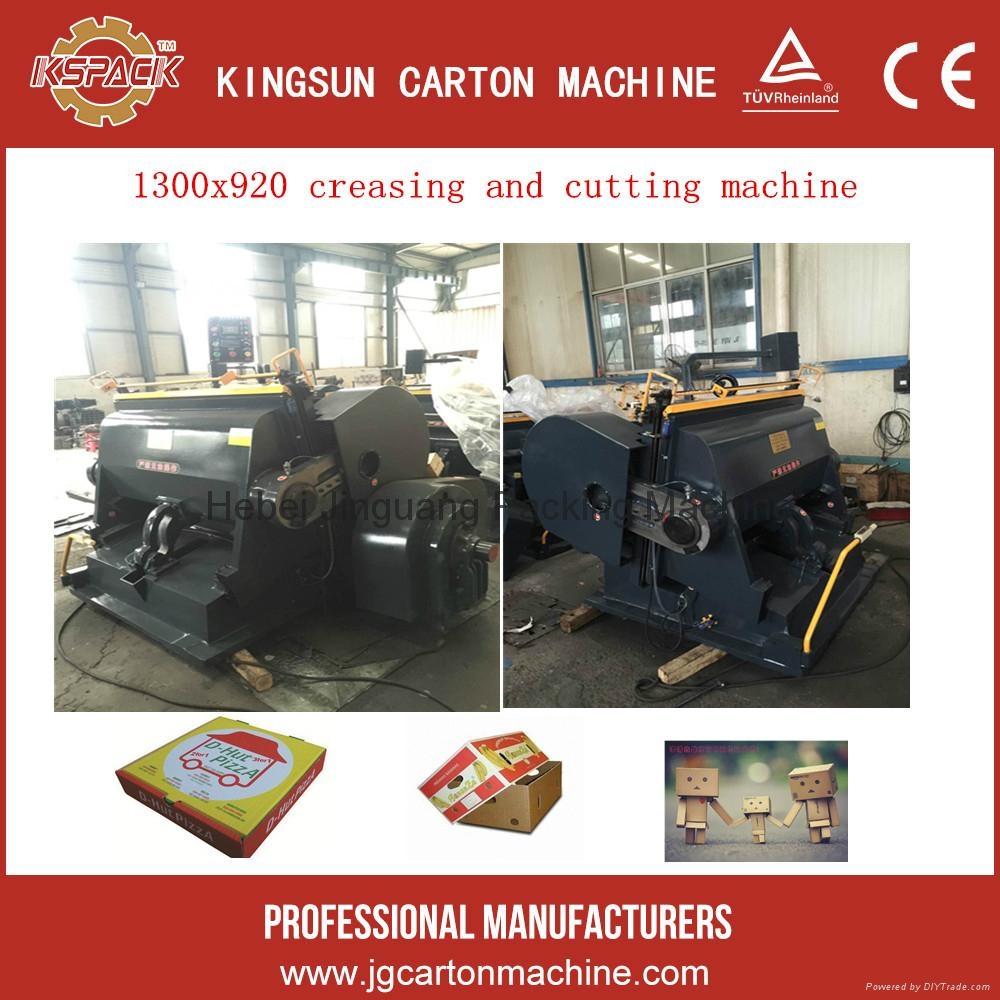

ML1300

1300×920mm

15±2

40m

7.5kw

6000kg

2550×2100×1950mm

ML1400

1400×1000mm

15±2

45m

7.5kw

6500kg

2650×2100×2000mm

ML1500

1500×1050mm

14±2

45m

7.5kw

7000kg

2700×2100×2150mm

ML1500A

1500×1150mm

14±2

45m

7.5kw

7300kg

2700×2100×2200mm

ML1600

1600×1250mm

13±2

50m

11kw

11500kg

2800×2250×2300mm

ML1800

1800×1280mm

13±2

60m

15kw

13000kg

3000×2250×2350mm

ML1800A

1800×1400mm

13±2

60m

15kw

14000kg

3000×2300×2500mm

ML2000

2000×1400mm

12±2

65m

15kw

15500kg

3100×2330×2600mm

ML2200

2200×1400mm

12±2

68m

18kw

16500kg

3300×2330×2800mm

ML2500

2500×1400mm

12±2

70m

18kw

18500kg

3600×2330×3100mm

ML2600

2600×1500mm

12±2

<70m

22kw

20000kg

3700×2250×2550mm

ML2800

2800×1600mm

12±2

<75m

22kw

23000kg

3900×2300×2800mm

ML3000

3000×1600mm

12±2

<80m

30kw

35000kg

4200×2300×3000mm
