High Frequency Milling Cutter Induction Heating Welding Machine

High Frequency Milling Cutter Induction Heating Welding Machine
Model:WH-VI-30
Brand:LIPAI
Origin:Made In China
Category:Industrial Supplies / Machinery / Heater
Label:induction heating , induction welding , welding machine
Price: US $2200 / set
Min. Order:1 set

Product Description

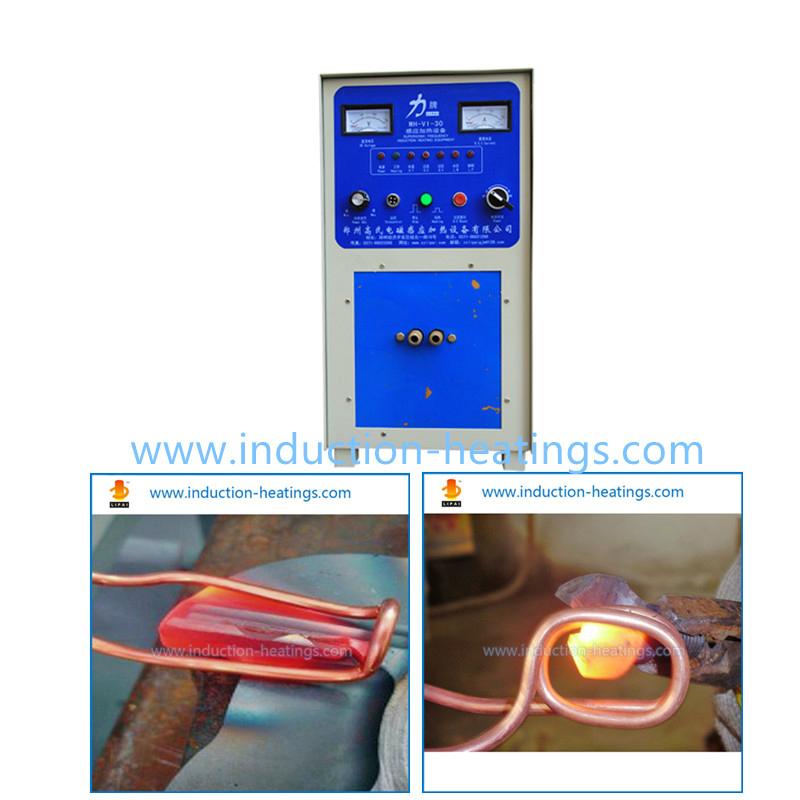

High Frequency Milling Cutter Induction Heating Welding Machine


Product Description:
High Frequency Induction Heating Machine Features:
A Small volume,light weight :500*240*450mm,easy to move and install,and easy to operate.
B WH-VI-16kw high frequency induction heating equipment adopt Germany IGBT,which can save more than 30% power than KGPS ans normal electric heating machine
C This model is good at small workpiece heating/brazing and hardening,such as Cutters copper/silver/brass brazing
D Good heating effect: Almost no oxide layer, no exhaust, no wastewater
E No high voltage---the voltage on induction coils is less than 36v,very safe for operating
F the frequency bandwidth to meet the different parts of brazing, heat treatment, forging before heating
G a unique cooling system, ensure that the equipment 24 hours of continuous work
Applications of WH-VI-30kw High Frequency Induction Brazing Equipment :
(1) copper/silver/brass welding brazing
various hardware cutting tools brazing, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit
Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting,precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper
(2) small workpiece heating,heat treating and hot fitting
connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube,motor rotor and sealing of tubular electric heating elemen.

Technical data of WH-VI-30 hf Induction Brazing Equipment:


Model
WH-VI-30
Work power Single phrase 220V/50-60Hz
Working voltage range(AC) 342v-430v
Max output power 5kw-16kw adjustable
Oscillation Frequency 10-60Khz
Continous 100% 24 hours
Packaging One standard wooden case-35kg,0.13CBM
Heating speed 1.2-1.5kg/minute
Water cooling syterm
Water pump 350W
Lift ;m/pressure Mpa Self- ;priming ;pump
Soft ;water ;pipe ;diameter φ12mm
Pool;volume 2


Our Heating Machine Discription and Package:
Packaging & Shipping
Packing material:
-WH-VI-16 induction brazing machine use wooden cases (plywood),no need fumigation
-plastic wrap for waterproof,
-plastic foam for shockproof,
-steel belt for fastening the wooden box corner

Our Services:

Certification: ISO9001

Technology: Solid state IGBT Inverter

Induction coils: Free design for customer

Warranty: One year free part replacement and lifelong technical service

After-sale service: Free replacement spares and can provide overseas support

Induction heating functions: Metal hardening,brazing,melting,annealing,melting and other heat treatment

Auxiliary device: Infrared thermometer,CNC quenching machine tool

Supply scope: Power unit+induction coils+spare parts

Cooling system: Industrial chiller,closed cooling tower,water pump,water wire(optional)

Customer preparation: Water pump,water tank,or industrial chiller,copper wire,soft water pipe

Cooling water pressure: 0.1-0.3MPa

Power factor: >0.95

Matching device: CNC hardening tool, cooling water device,automatic loading device,adjust tooling

Additional functions: Heating time 0.1-99.9 s Retaining time 0.1-99.9 s

Features: Save energy,save electric bill,heating fast,safe and reliable,fast delivery,competitive price,free design,ODM support,manufacturer,exporter,excellent supplier,professional

Company Information:
Zhengzhou Gou's professionally manufacture verious of frequency induction heating machine,
power range 10KW-800kw, frequency range 2-150KHZ.
And our induction heating equipment can be used for metal heating,different metals work pieces quenching, heat treatment,billet hot forging,brazing carbide cutters, annealing metal wire, melting precious metal, PWHT,preheating for coating, drying,shrink fitting etc.
Our Products List Please refer to our website:
http://www.inductionheating.com.cn/html/1384062226.html

FAQ
Why Choose Us
1. over 15 years eperience in induction heating field
2. heating furnace is safety and reliability, long life
3. our heating equipment export to Italy, Mexico ,Turkey, Slovakia, Pakistan, Iran,Vietnam,India, Malaysia,Brazil ,Indonesia,South Africa,etc. And winning great popularity
4. one year warranty and life-time technology support
5. fast, timely delivery & reliable after-sales service
6. spare parts & tools delivered with harvester for daily maintenance
7. customers & quality first
Transportation
Sea transportation, air transportation, railway transportation, highway transportation, express
transportation

Acceptable payment
T/T,  L/C, Western Union
For more details about heating machine and our company,
please feel free to contact me,Thanks!

My contact information:
Mobile phone:+86-18937170169

Skype:heating0086

Website:www.induction-heatings.com





High Frequency Milling Cutter Induction Heating Welding Machine 1High Frequency Milling Cutter Induction Heating Welding Machine 2High Frequency Milling Cutter Induction Heating Welding Machine 3High Frequency Milling Cutter Induction Heating Welding Machine 4High Frequency Milling Cutter Induction Heating Welding Machine 5
