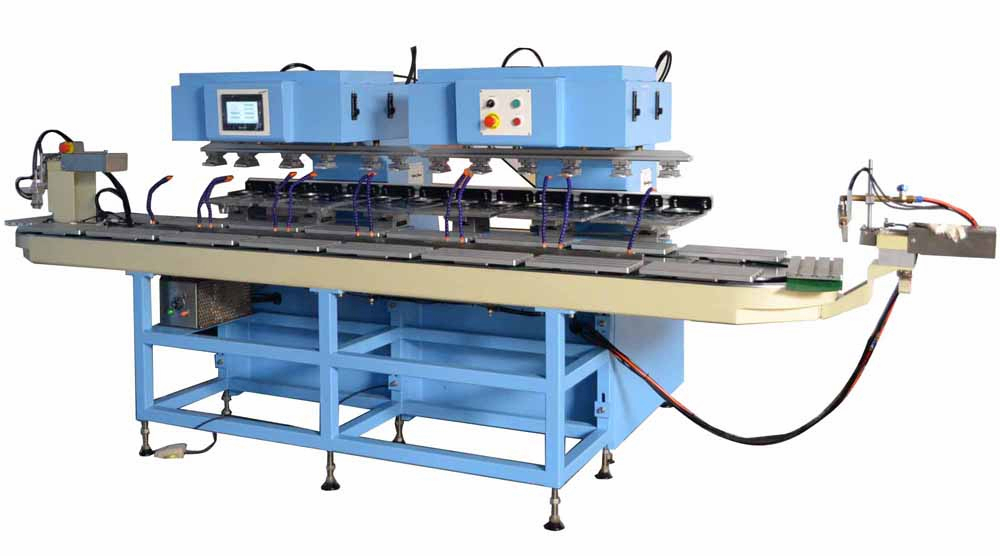

10 colors pad printer with 30-station conveyor//Structure

Working table

30-station conbveyor -type working table

Shuttle stroke

200mm

Ink supply system

Open inkwell ink supply system

Plate type and size

10mm steel plates/ plate.

Pad dropping control

Simple-cylinder , Continue pressing

Ink drying

Heat air

10 colors pad printer with 30-station conveyor //Usage and characters

Guide

• Print both one color to 10 colors with 30-station conveyor worktable， printing speed is more fast;
• With inkwell to store ink, ink adjustment more simple ;
• With coin aluminum structure ensure more stabilization and long life.
• Can print almost small size objects. So sold very nice in the world.
• Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
• Completely printing solution including ink and thinner, fixtures, steel plates, rubber pads provided when you send us samples to send.
• Independent Balance blade Technology Ensure ink removing easily . Make min Pressure to remove ink and prolong the life of steel plate

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

10 colors pad printer with 30-station conveyor//Parameter

Technical parameters

SPM10-150/30L​

• Max. plate size: 150×150 mm;
• Max. worktable area: 90×125mm;
• Max. printing area: 130×130mm;
• Max. printing speed: 500pcs/h;
• Colour number: 10;
• Air consumption: 330Litre/min(6bar);
• Printing objects dimension:100×140mm.
• Conveyer stroke: 200mm;
• Station number: 30

Works supply

• 110V-220VPower supply；
• 5-7Bar Compress air；

Package list

• Package dimension:1.450×0.910×1.560m;
• Gross weight: 315kg;
• CBM: 2.0585

H.S.Code

8443198000

Certicate

CE

10 colors pad printer with 30-station conveyor //Advantage

Function

• 30-station conveyer working table, can install 30 products for recycling printing, greatly improving production efficiency;
• Product positioning using wedge-shaped positioning device, positioning accuracy, positioning accuracy of 0.05mm.
• Speed can be freely adjusted, you can adjust the speed of the machine according to the technical proficiency ;
• The whole machine adopts microcomputer control system to operate, easy manipulation;
• With automatic counting function, can effectively measure the printing speed;
• Open inktray ink supply system to facilitate observation and adjustment of the ink;
• locations with independent steel and Rubber heads conditioning systems around the location of the next adjustment system;
• Self-balancing technology scraper, scraping ink cleaner;
• Automatic blow drying system, using ink drying after printing, to improve the printing speed;
• Cast aluminum body, runs smooth, long service life, the Machine head can be easily lifted conducive to machine maintenance and repair;
• Pad printing speed and scraping the upper and lower speed can be adjusted independently;
• Has a Blading inking function to prevent the machine during a brief stop ink dry
