Explosion proof air conditioning unit for positive pressure house

Model:	-
Brand:	YITONG
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Heat Exchange & Air Conditioners
Label:	Ex proof , positive pressure , air conditioner
Price:	US $2000 / pc
Min. Order:	1 pc

Inquire Now

Product Description

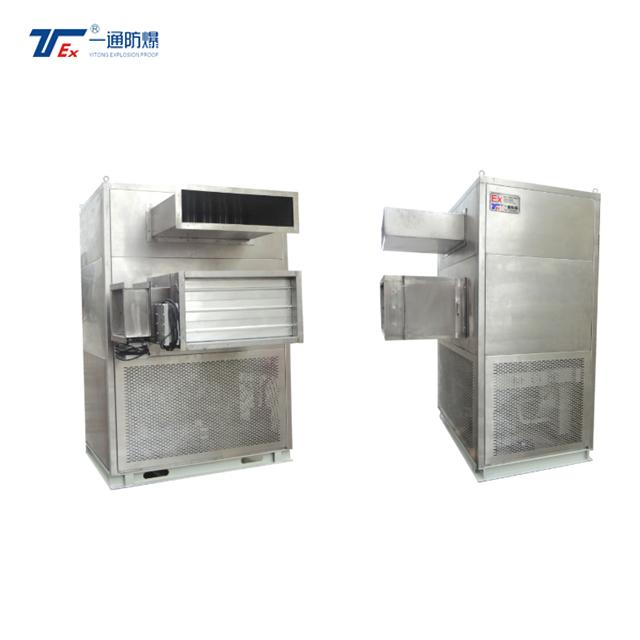

16KW BYTF-16YR Explosion Proof Air Conditioner Explosion Proof HVACExplosion Proof AC for Positive Pressure Driller Cabin

Product Description

1, This explosion proof HVAC is used for process analyzer shelters, analyzer houses,it can provide positive pressure air into the shelter, so it is also called explosion proof positive air conditioner.This explosion proof air conditioning system can keep the room’s air pressure higher than the outside air ,this can stop the outside dangerous air entering into the room,keeping the workers safe in inside the room.

Product Features:

Explosion-proof positive pressure room air conditioning unit (HVAC, hereinafter referred to as "unit") using internationally renowned brand compressor, stable performance, high efficiency and energy saving.
2, The heat exchanger using high-performance copper thread and hydrophilic aluminum foil fin, after advanced mechanical expansion process, to play the best heat transfer efficiency.
3, The unit shell is 304 stainless steel, corrosion resistance, nice, frame structure design, the panel attached to the inner wall of high quality sound insulation, insulation rubber material, the largest reduction of cold loss and reduce unit noise; open structure Design to disassemble, easy maintenance.
4, The unit uses advanced front curved wing centrifugal blower, impeller have been rigorously balancing check, low noise, small vibration, good performance curve, so that work more efficient.
5, The unit adopts PLC programmable system control to make the control more humane, more reliable and more comprehensive.

Technical parameters

Model Parameters		BYTF-6YR	BYTF-8YR	BYTF-10YR	BYTF-12YR	BYTF-16YR	BYTF-24YR
Cooling(kW)		6	8	10	12	16	24
Heating(kW)		6	9	9	12	15	24
Air volume(m3/h)		1800	2200	2800	3000	3500	5000
Total pressure(Pa)		300	320	380	400	450	420
Cooling input power(kW)		3.2	3.8	5.3	6.5	8.1	11.6
Heating input power(kW)		6.7	9.7	10.5	13.5	16.5	26.1
Indoor positive pressure value(Pa)		25~70(adjustable)
Power		380V 50Hz 3PH 5Lines
Supply air fan	Qty	1+1(one for using, another for standby)
	Power(kW)	0.37		0.7		0.75	1
Condensate fan	Qty	1	2		2
	Power(kW)	0.25	0.25×2		0.37×2
Refrigerant	Type	R22
	Charge volume (kg)	2.5	3.5	4.5	5	6	8.5
Compressor	Qty	1
	Power(kW)	2.2	2.6	3.3	4.1	5.6	8.8
New air volume(m3/h)		330	410	500	550	790	1080
Outlet size(mm)		700×200	800×200			1000×200
Return size(mm)		700×400	800×400			1000×400
New air size(mm)		240×240				300×300
Temperature range(℃)		16~25
Dimension	L(mm)	1000	1500			1750
	W(mm)	800	1000			1000
	H(mm)	2000	2170			2170
Explosion proof mark		Ex d ib mb ⅡC T4 Gb

Company Information

Nanyang Yitong have obtained the EU standard company and product certificate as ATEX,IEC Ex,CNEX,CCS( explosion proof electric products for Marine environment),MA,ISO9001,ISO14001,OHSAS18001,QS .

Nanyang Yitong are the licenced vendor of China National Offshore Oil Corporation(COOC),China National Petroleum Corporation(CNPC),China Oilfield Services Limited(COSL),Altrad Group(France),Hyundai Engineering Co., Ltd(Korea),etc.and we have exported many of explosion proof air conditioner in Northeast Asia. and Australia.we also have solo agent in UAE,Egypt,Russia and Korean.
