Explosion Proof Positive Pressure Cabinet Explosion Proof Pressurized AC

Model:	BYTF-6YR
Brand:	YITONG
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Heat Exchange & Air Conditioners
Label:	Explosion Proof , Positive Pressure C , YITONG
Price:	US $6500 / pc
Min. Order:	1 pc

Inquire Now

Product Description

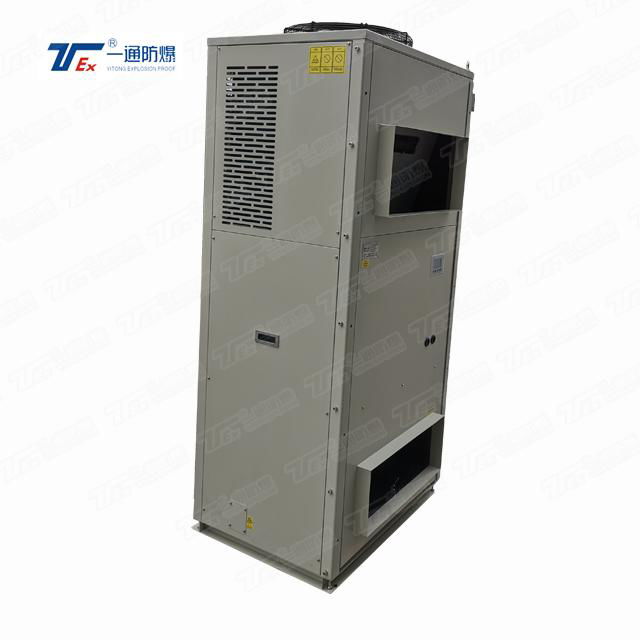

Explosion-proof HVAC for Driller Cabin Analyzer Room Explosion Proof Positive Pressure Room Air Conditioning Unit Capacity 6 KW

Explosion-proof HVAC is a combination of years of explosion-proof air-conditioning design experience, absorption of advanced design concepts at home and abroad, and functional design for various working environments and places of use. Wide range of cooling capacity, to meet the needs of a variety of special occasions containing explosive gases, such as refrigeration, heating and positive pressure, ventilation and ventilation. The product has high energy efficiency ratio, low noise, beautiful appearance and small size. Installation and maintenance are very simple and convenient. It is mainly used for temperature and humidity and airflow adjustment in analytical cabins, control rooms and other places with explosive gas environment.

Product Application

Can be use to do temperature and humidity adjustment,in places or area of army,chemcial,electric power,pharmaceutical,scientific research and so on.

Normal Working Conditions

1. The atmospheric pressure is 80 kPa to 110 kPa.
2. There are IIA, IIB, IIC grades, temperature groups are flammable gases in the T1~T4 group, explosion hazard sites formed by mixing steam and air, and environments where explosive gas mixtures may or may occur.
3. Locations without severe vibration and shock.

Main Features

1, explosion-proof positive pressure room air conditioning unit (HVAC, hereinafter referred to as "unit") using the international famous brand Emerson Copeland compressor, stable performance, high efficiency and energy saving.
2, the heat exchanger uses high-performance internal thread copper tube and hydrophilic aluminum foil fins, after the advanced mechanical expansion process, to achieve the best heat transfer efficiency.

3. The outer shell of the unit is made of 304 stainless steel, which has strong corrosion resistance and beautiful appearance. The frame structure design strengthens the mechanical properties of the unit. The inner wall of the panel is attached with high-quality sound insulation and thermal insulation rubber and plastic materials, which can reduce the loss of cooling capacity and effectively reduce the unit. Noise; open structure design makes disassembly and maintenance convenient.

4. The unit adopts advanced brand-name centrifugal blower. The impeller has undergone strict dynamic balance check, low noise, low vibration and good performance curve, which makes the work efficiency higher.
5. The unit adopts PLC programmable system control and has multiple protection measures to make the control more humanized, more reliable and more comprehensive. The LCD controller has operating parameters and fault code query functions, which are convenient and practical.

6. Each unit undergoes rigorous inspection and testing before leaving the factory to make the unit stable and reliable.
7, using industrial air conditioning standard design, can operate in harsh environments for a long time.
8. The product has passed the inspection of the National Quality Supervision and Inspection Center for Explosion-proof Electrical Products, and has obtained the certificate of explosion-proof.

9. The unit has RS485 communication interface, which can realize remote monitoring and other functions.
10. The unit reserves dry contact points to achieve fire interlocking and other functions.
11. The unit has the function of self-starting call, which can realize automatic unattended operation.
12, the unit function and its accessories, can be customized according to customer requirements.

Certifications

Detailed Images

Machine Parts

Name: Compressor

Brand: Emerson-Copland

Original: American

Emerson (American Emerson Electric Company) was founded in 1890 in St. Louis, Missouri, USA. Emerson Electric Company was a manufacturer of motors and fans.

Main Features

Name: Evaporator, condenser
Brand: Yitong customized
Original: China
Nanyang Yitong Explosion proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22..Our product have exported worldwide for many years since 2002.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

*Professional ODM&OEM

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

*1 year to replace defected parts during one year of operations or 18 months from shipping.

* seller will provide a life time technical support.

Packing & Delivery

Packaging
Size	L1210W810H2200,estimated data
Weight	refer to the actual
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

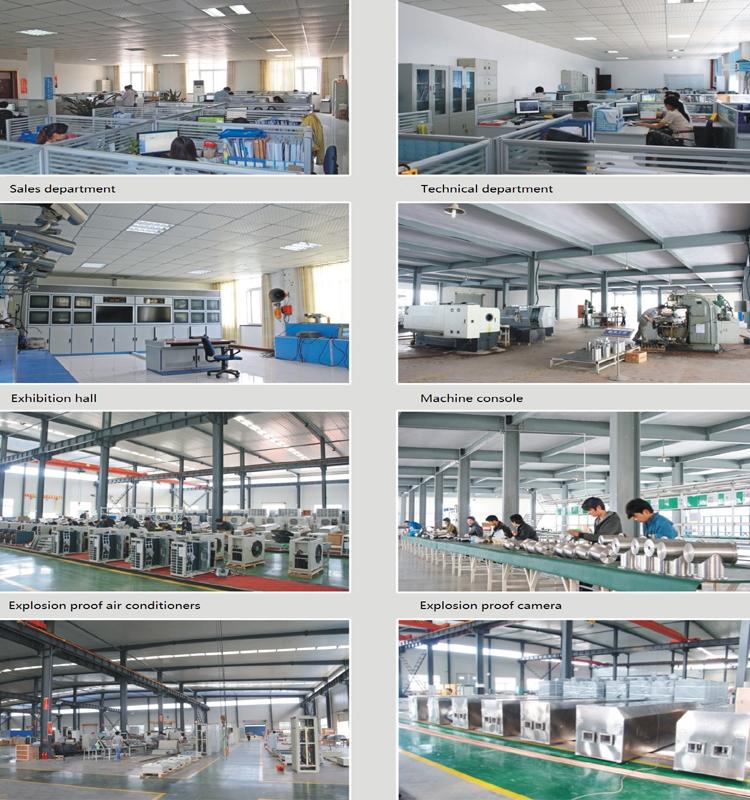

Our Company

Nanyang Yitong Explosion proof Electric Co., Ltd.

We are an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.

We have wide range explosion proof products of air conditioners, electrical control box, CCTV camera, lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.

Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
