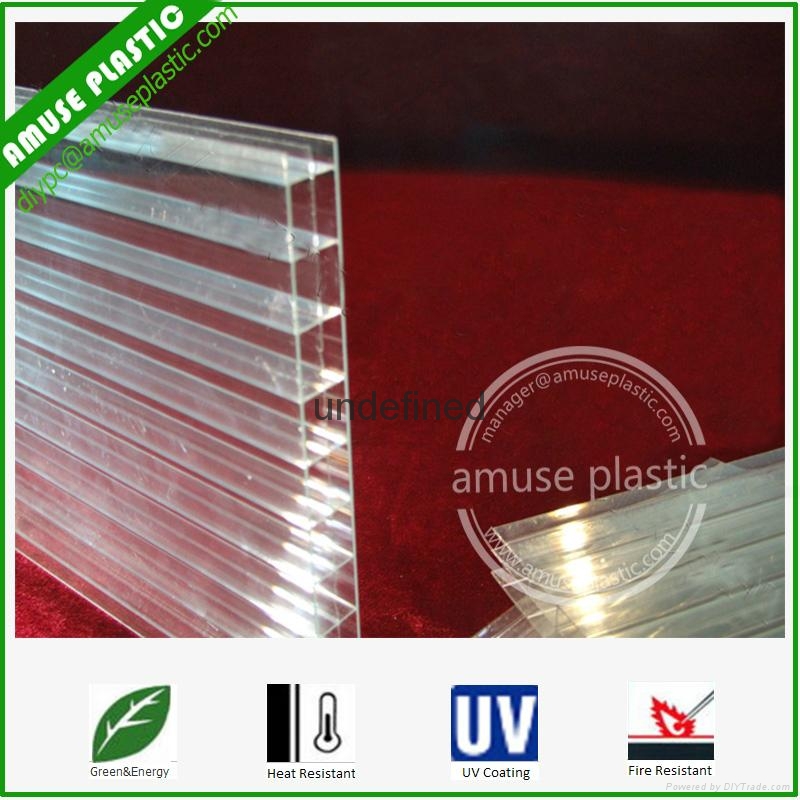

Hot Sell UV-Protection Grey Triple-Wall PC Hollow Layers Compact Sheet​

Product Features:

1. Light trasmission: up to 82%

2. Impact resistance: 80 times that of glass, 15 times that of acrylic sheet.

3. Temperature resitance range: -40 to 120°c.

4. Light weight: only 1/12 of the weight of glass at same thickness.

5. Ultraviolet resistance: with UV protective layer.

6. Weather proof

7. Flame resistance: B1 grade

8. Sound and Heat proof

9. Environment friendly

​

Polycarbonate Characteristics:

No.	Characteristics	Unit	Data
1	Impact Strength	J/m	850
2	Light Transmission	%	85
3	Specific Gravity	g/cm3	1.2
4	Coefficient of Thermal	mm/m °c	0.065
5	Service Temperature	°c	-40 to +120
6	Heat Conductivity	W/m2°c	2.3-3.9
7	Tensile Strength	N/mm2	>60
8	Flexural Strength	N/mm2	100
9	Modulus of Elasticity	MPa	2400
10	Tensile Stress at Break	MPa	>65
11	Elongation at Break	%	100
12	Specific Heat	kj/Kgk	1.17
13	Heat Deflection Temperature	°c	140
14	Effect of Soundproof	dB	3-4



PC Triple-wall Hollow Sheets Details:

Thickness: 10-20mm

Size: 2.1m for width, no limit for length

Colors: clear ( transparent ), blue, green, lake blue, opal, bronze for standard, others can be customized.

Unit weight: from 2.0 kg/sqm to 3.3 kg/sqm according to thickness

Lead time: 5 days for one full container at 30% TT deposit received

MOQ: 1x20GP CTN

Packing: both sides with PE Protective films

Item	Standard     Size   (W x L)	Thickness     (mm)	Weight   (kg/m2)	Min        Curving     Radius     (mm)	Min Span  Accordingly       (mm)	20GP  Loading Qty( pcs )	40HQ    Loading Qty( pcs )
PC          Triple-wall       Hollow           Sheet	2100             x             5800	10	2.0	1750	3500	230	530
		12	2.2	2100	4200	190	440
		14	2.4	2450	4900	165	375
		16	2.7	2800	5600	145	330
		18	3.0	3150	6300	125	295
		20	3.3	3500	7000	115	265

Kindly Note: Special colors and sizes can be customized.

​

Applications:

1. Roofing light sheet and sunshade for office building, department store, hotel, stadium,school,amusement center,hospital, ect.

2. Skylight, lighting for corridors, balcony, passages and subway entries, walkways.

3. DIY awning, canopy

4. Conservatories, agricultural greenhouses, zoos, botanical gardens.

5. Industrial Roofing and Glazing

6. Swimming Pools roofing/cover/sheet
​


Loading:
​​

PC Sheets Installation:

Step 1: Use screws to attach the base connecting profiles to the roof beams. Make sure the screws not                 bend, tear or exert excessive pressure on the profile.

Step 2: Place the sheet on top of the base profile support edges, with the side covered by the printed                   protective film facing upwards.

Step 3: Slide the base under the sheet and attach it to the beam.

Step 4: Place the side spacer profile onto the roof beam and attach the cap to the base by hammering                 into place with a rubber mallet.

Kindly Remark:

1. As expandable, the drilling diameter must be 1.5 times than that of the bolt.

2. Do not use gaskets made of PVC.

3. PC Sheets can't be installed too tight because there will be thermal expansion and contraction which will adversely affect the installation.
