Automatic Dies Vertical Grinding Machine for Feeding and Biomass LM1000

Automatic Dies Vertical Grinding Machine for Feeding and Biomass LM1000
Model:MLT-LM1000
Brand:Mltor
Origin:Made In China
Category:Industrial Supplies / Machinery / Machine Tool
Label:Vertical grinding , repair ring die , pellet ring die
Price: -
Min. Order:1 pc

Product Description

Key Specifications/Special Features:

This machine is used on feeding pellet mill product and other biomass pellet mills such as wooden pellet and straw pellet, it is suitable for holes machining operations such as grinding and milling, it is not only used on new ring die but also appropriate for old ring die

Equipment features:
1. Vertical type principal axis, super big workbench which may supports all kinds of ring die size
2. High-rigidity principal axis, big workbench and vertical type of clamping ring die which may reduce the chucking power impact of ring die transfiguration
3. Machine is suitable for various types of grinding wheel and it has the function of grinding wheel auto-repair so that guarantee ring dies grinding high-efficiency
4. Mltor adapted a famous brand of balls crew and linear guide way and combining with reliable automatic lubrication design, Mltor machine is durability and stability
5. User-friendly interface on CNC control system is easy to operate and Mltor CNC control system is the customized support that the user may choose programming or fool-style operation
6. System comes with a diagnostic interface, it is easy to find out the reason of the control failure so easy to repair
7. There is a cycle of water-cooled design, overflow filtration, to avoid overheating and dust of the ring die
8. Mltor uses frequency control for grinding wheel and workpiece speed, stepless speed variation to satisfy the requirements of best grinding

Services for item:

  1. Machine warranty period 12-month once the customer receives the machine, after 12-month, we may answer the customer's question on line or by E-mail within 24-hour
  2. Mltor will prepare one more set of quick-wear components with the machine for the customer
  3. Mltor will not provide or change any part or component for free if the customer damages them abnormally, the customer needs to purchase them separately
  4. Mltor will afford the customer's technician local transportation, accommodation and catering cost when the customer's technician comes to Mltor factory to have a train or inspects the machine before the machine delivery and the customer will afford their technician travelling cost
  5. In the warranty period, if the customer requests Mltor engineer to support in foreign country, Mltor will support to check equipment and train the customer technician for free but the customer needs to afford Mltor's engineer travelling expenses, local transportation, accommodation and catering cost
MLT-LM1000 main specifications
Maximum ring die external diameter 1000mm
Minimum ring die inner diameter  300mm
Maximum ring die width 430mm
Maximum ring die weight 1000kg
Grinding supports as  Inner, outer surface, end side and conical surface
Grinding wheel repair Supports self-motion and manual-motion
Grinding wheel choice Brown and plate shape grinding wheel
Cooling system Circulating water-cooling
Grinding head axis parameter
Motor power  4kW
Grinding head rotating speed 1000-4000 (frequency device for Mitsubishi)
Work piece axis parameter
Motor power  4kW
Rotating speed of workbench 0-60rpm/min (frequency device for Mitsubishi)
Max bearing weight of workbench 1000kg
Workbench surface size 1000mm
NC control and electric system
NC control system MLT-208
Control axis  X axis + Z axis
Servo motor Alternative current servo motor drive
Electric cabinet air-condition DLW5, compressor refrigeration
Voltage AC 380V 3P
Frequency 60Hz (adjustable)
Rated power 11.1KW
Machine size 1990mm x 2275mm x 2510mm
Machine weight 5200kg
Payment Terms:TT

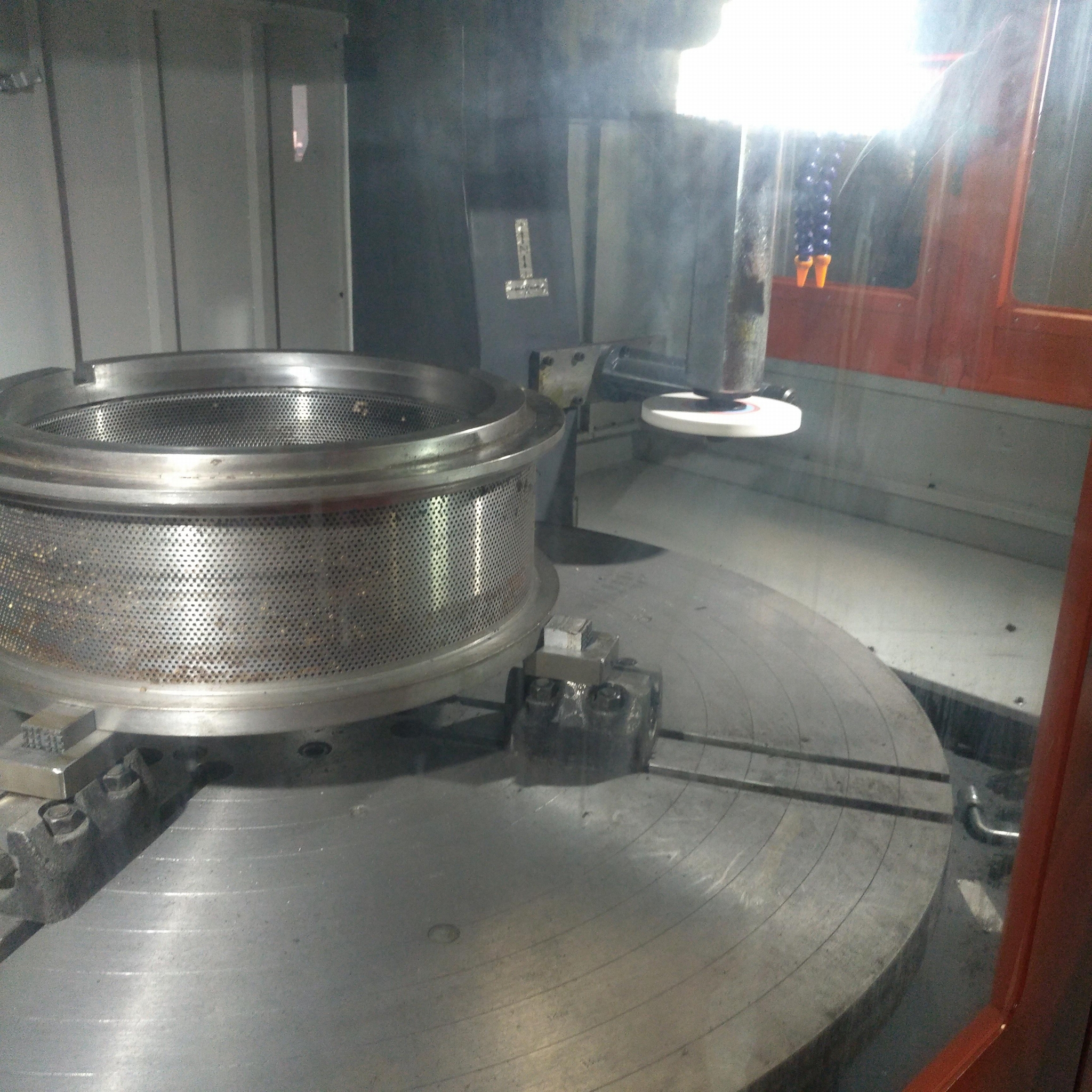

Automatic Dies Vertical Grinding Machine for Feeding and Biomass LM1000 1Automatic Dies Vertical Grinding Machine for Feeding and Biomass LM1000 2Automatic Dies Vertical Grinding Machine for Feeding and Biomass LM1000 3Automatic Dies Vertical Grinding Machine for Feeding and Biomass LM1000 4Automatic Dies Vertical Grinding Machine for Feeding and Biomass LM1000 5
