No Cabinet 320*160mm P5 Indoor LED Flexible Screen



Product Description



Features of Meiyad P5 Indoor LED Flexible Screen



• The third revolution, add silicone frame + mask. Embedded magnet, reduce stitching gap. Soft, thin, strong magnets column, patent soft mask.

• High Flexibility, can be any designed forrolled, bend and swing according to customers’ needs.

• Super Thin and Light, every flexible led module is weight of 800g.

• Easy to Splice, Install and Maintain.

• No cabinet, drastically deducting the screen weight. We can design any shape of structure as you need.

• Wide application, can be used in so many fields and occasions, especially in all kinds of irregular buildings.







Technical Parameters



Technical Parameters of P5 Indoor LED Flexible Screen



Pixel Pitch	5mm	Pixel Density	40000 pixels/m²
Pixels Per Panel	64×32 Dots	Module Size	W 320mm×H 160mm
Weight	0.12 kg/piece	Drive mode	16-bit constant current drive
Scan Mode	1/16S	LED Type	SMD
LED Configuration	1Red,1Green,1Blue	Brightness	800cd/m²
Area	0.0512 m²	Recommended Viewing Distance	≥5m
Environment	Indoor	Operating Temperature	-20℃~+60℃
Storage Temperature	-40℃~+80℃	Gap Between Modules	Seamless
Horizontal Viewing Angle	+/-120°	Vertical Viewing Angle	+/-120°
Video Frame Rate	50/60 Hz	Rate Refresh	≥1920 Hz
Color Temperature	9000±500K	Input Power <Max>	25W/ panel
LED Life Time	≥100,000 Hours	Acoustic Noise	Fanless operation





Cases

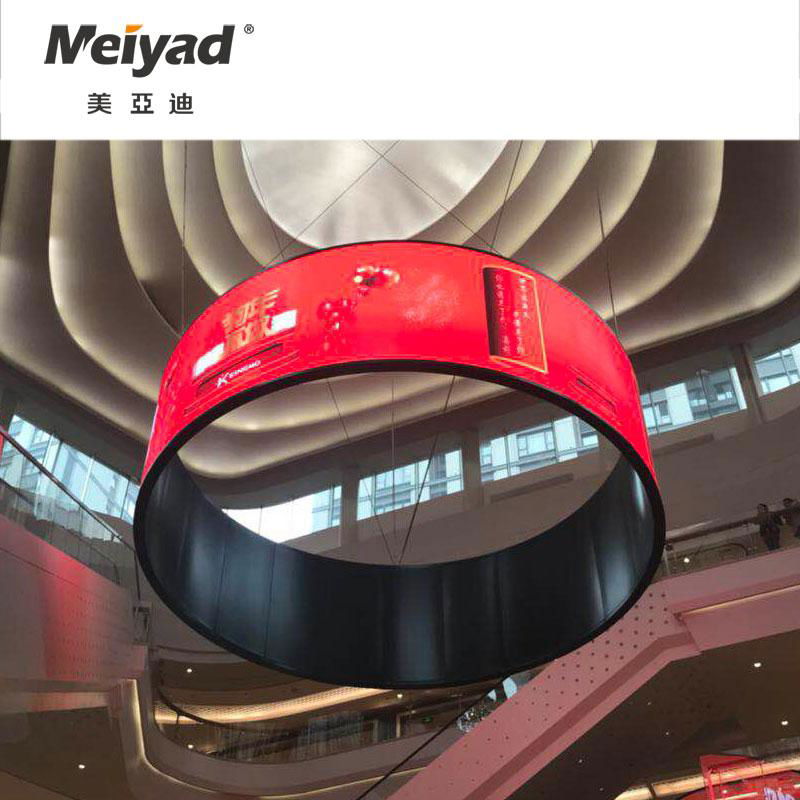

Some Cases of Meiyad LED Flexible Display Screen





Click Here For Good Price!



Packaging & Shipping



Packaging of Meiyad LED Flexible Screen







About Meiyad



Shenzhen Meiyad Optoelectronics Co, Ltd. was founded in 2008. Meiyad is a national high-tech enterprise which focuses on R&D, manufacturing, retail and serving of LED display. We have our own operation center and manufacturing base in Shenzhen.



Our products are widely used in indoor and outdoor commercial meida, sports venues, stage performances, special-shape creativity, etc. We also provide LED display integrated solutions. With the development of technology and manufacture workmanship, we have made many classical cases in the international market.
