network security appliance C236/H110/C206/H61 chipset 6 Rj45 GbE i3 i5 i7 CPU, 2 lan bypass, single power or redundant power.

support Linux fedora CentOS kernel2 Endian pfSense ubuntu Windows applications 1U/2U network appliance are applicable for IT security in the industrial DMZ and enterprise data centers.

20 model More models list:
F19611.................................................................................................................................... 9-1

Network appliance with Intel J1900 Processor, 6 to 10 GbE Lan Ports.......................................... 9-1

F19411.................................................................................................................................... 9-2
Network appliance with Intel J1900 Processor, 4 GbE Lan Ports.................................................... 9-2

F19401.................................................................................................................................... 9-3
Desktop Network appliance with 4 GbE Lan Ports......................................................................... 9-3
F19613.................................................................................................................................... 9-4
Fanless Network appliance with Intel J1900 CPU.......................................................................... 9-4
F61611.................................................................................................................................... 9-5
1u network security appliance based on H61 chipset..................................................................... 9-5
F61621.................................................................................................................................... 9-6
2u network security appliance based on H61 chipset..................................................................... 9-6
F20611.................................................................................................................................... 9-7
1u network security appliance based on C206 chipset................................................................... 9-7
F20621.................................................................................................................................... 9-8
2u network security appliance based on C206 chipset................................................................... 9-8
F11611.................................................................................................................................... 9-9

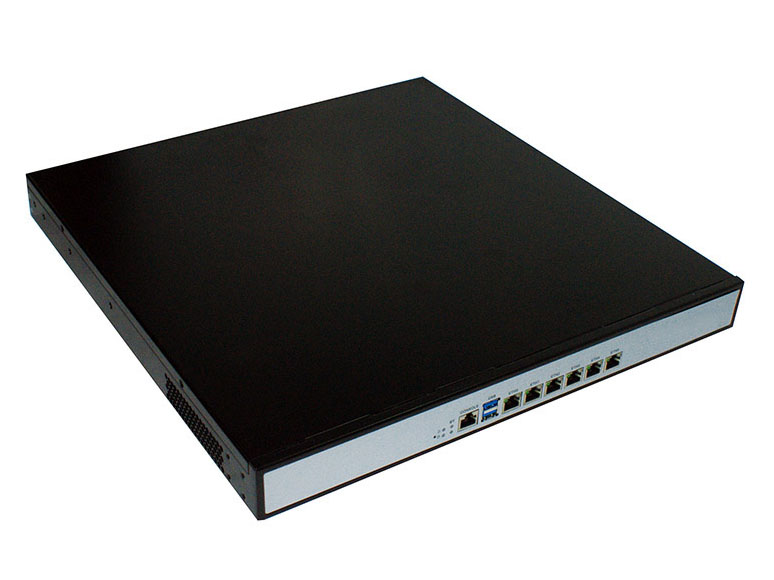

1u network security appliance based on H110 chipset................................................................... 9-9
F11621.................................................................................................................................... 9-10
2u network security appliance based on H110 chipset................................................................... 9-10
F23611.................................................................................................................................... 9-11
1u network appliance, C236 chipset , 6 Rj45 GbE......................................................................... 9-11
F23621.................................................................................................................................... 9-12
2u network appliance, C236 chipset , 6 Rj45 GbE......................................................................... 9-12
F23622.................................................................................................................................... 9-13

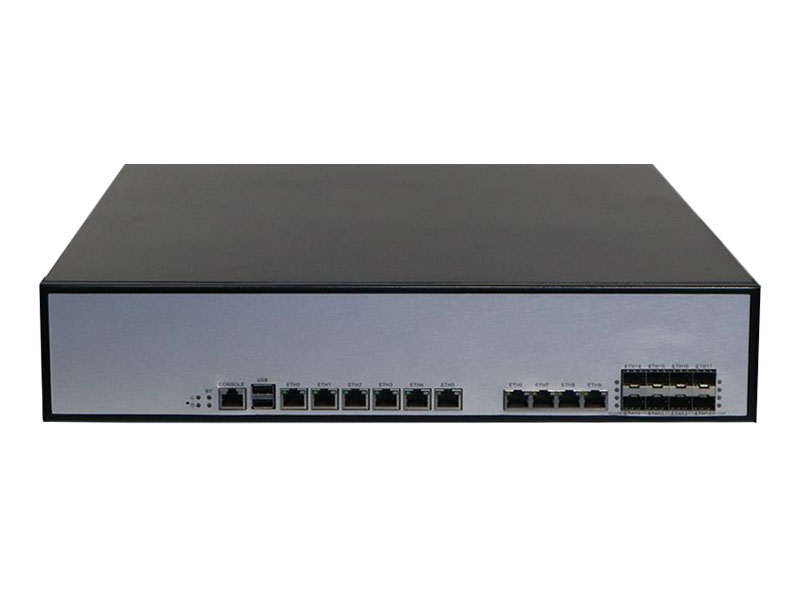

1u network appliance, C236 chipset , Max 22 GbE ports............................................................... 9-13
F23224.................................................................................................................................... 9-14
2u network appliance, C236 chipset , 4 NIC for max 32 GbE......................................................... 9-14
F19628.................................................................................................................................... 9-15
2u Network GAP appliance, Dual system with J1900 CPU........................................................... 9-15
F20628.................................................................................................................................... 9-16
2u Network GAP appliance, Dual system base on C206 chipset.................................................. 9-16
NIC Modules List1........................................................................................................... 9-17
NIC Modules List2........................................................................................................... 9-18
www.anxinpc.

Features
Supports Intel Gen6/Gen7 Xeon E3-1200 i3/i5/i7 Core, Pentium processor
Intel C236 chipset
Two 2133/2400MHz DDR4 slots, up to 32GB
Six Intel PCIe GbE controllers, support two channels bypass
Three SATA3.0 6Gb/s interface
Supports USB3.0, mSATA, COM
Specifications
Motherboard
CPU Supports Intel Gen6/Gen7 Xeon E3-1200 i3/i5/i7 Core, Pentium processor
Chipset Intel C236
System memory Two 2133/2400MHz DDR4 slots, up to 32GB
Storage
Interface Two SATA3.0 connectors and one mSATA slot
Hard Drive Supports two 3.5/2.5" HDD trays
Ethernet
LAN Port Six 10/100/1000Mbps RJ-45 ports

Ethernet Controller Six Intel PCIe GbE controllers

BYPASS Optional 2 channels BYPASS

Indicator Indicator    RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
USB Two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED

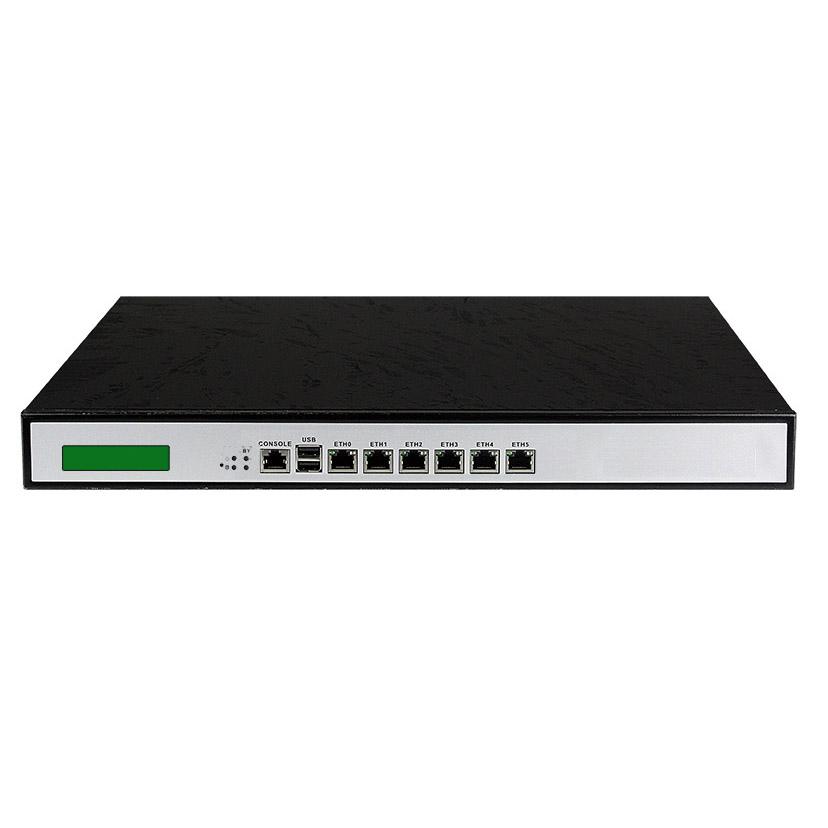

LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Expansion One PCIex16
Power supply
Power consumption Built-in 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Environmental
Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Mechanical
Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 450x430x44.5mm
Weight 12.8 kg
Ordering informations
F23611-B2 1u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU
F23611-B2P2 1u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 350Wredundant PSU
Optional Nic Modules
58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
58F4 4 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers
58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers
58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
58F8 8 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers
58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
71W4 4 10G SFP based on Intel XL710 controllers
