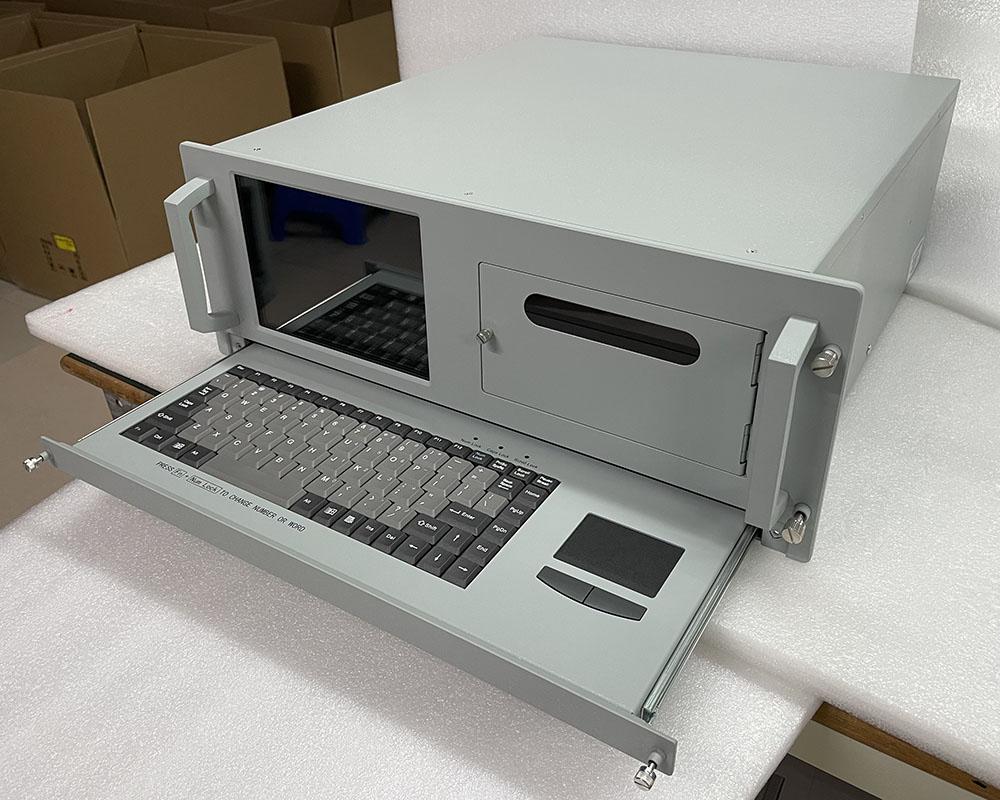

RCWS-08N - Rackmount workstation. Rackmount 8 inches LCD All In One PC Chassis Workstation with keyboard and touchpad, supports full-size sbc or ATX/ Micro-ATX motherboard, 7/14 expansion slots.

Features

• 4U height Industrial computer Rackmount workstation
• Support Full-size CPU card or ATX/Micro-ATX motherboard foam factor
• For ATX motherboard 7 expansion slots/ backplane 14 expansion slots
• 8"SVGA TFT LCD display Support 1024x768 pixels,250 cd/m2 brightness
• Built-in keyboard and Touchpad drawer
• Shock-resistant drive bays to hold 1x 5.25" and 2x 3.5" drives
• Signal input VGA and DVI interface
• 2xUSB Accessible from the front door
• Support PS2 and redundant power supply
• Power & HDD status indicator by front viewable LED indicator
• Aluminiumfront panel, Heavy duty steel chassis

Specifications

System

Construction Compact 19" 4u Rackmount Heavy-Duty Steel Chassis
Disk Driver Bay 5.25" x1 , 3.5" x2
Cooling Fan 2xcooling fan, with air filter andMoistureproof design
Keyboard Built-in full-function keyboard and touch pad.
OSD OSD function in front panel
I/O Connector Front panel: 2xUSB2.0
Rear panel: DVI, VGA, USB, PS/2(Optional)
LED indicators & Switch Power LED indicator(Green), HDD LED indicator(Red), PowerSwitch and reset
Color White

LCD display

Display type 8" XGA TFT LCD
Resolution 1024x768
Colors 16.7M

Backlight LED
Luminance 250 cd/m2
Contrast Ratio 700:1
View angle 110°(H) , 120°(V)

LCD MBTF 50,000hrs

Touchscreen(Optional)

Type Resistive Touch Screen
Resolution continuous
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 80% or more
Operating Force 250g

Environmental

Oprerating Tempreture -20 °C to 60 °C
Storage Humidity 5% to 95%@ 40°C, non-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
Safty FCC/VDE(Level A)

Packing info

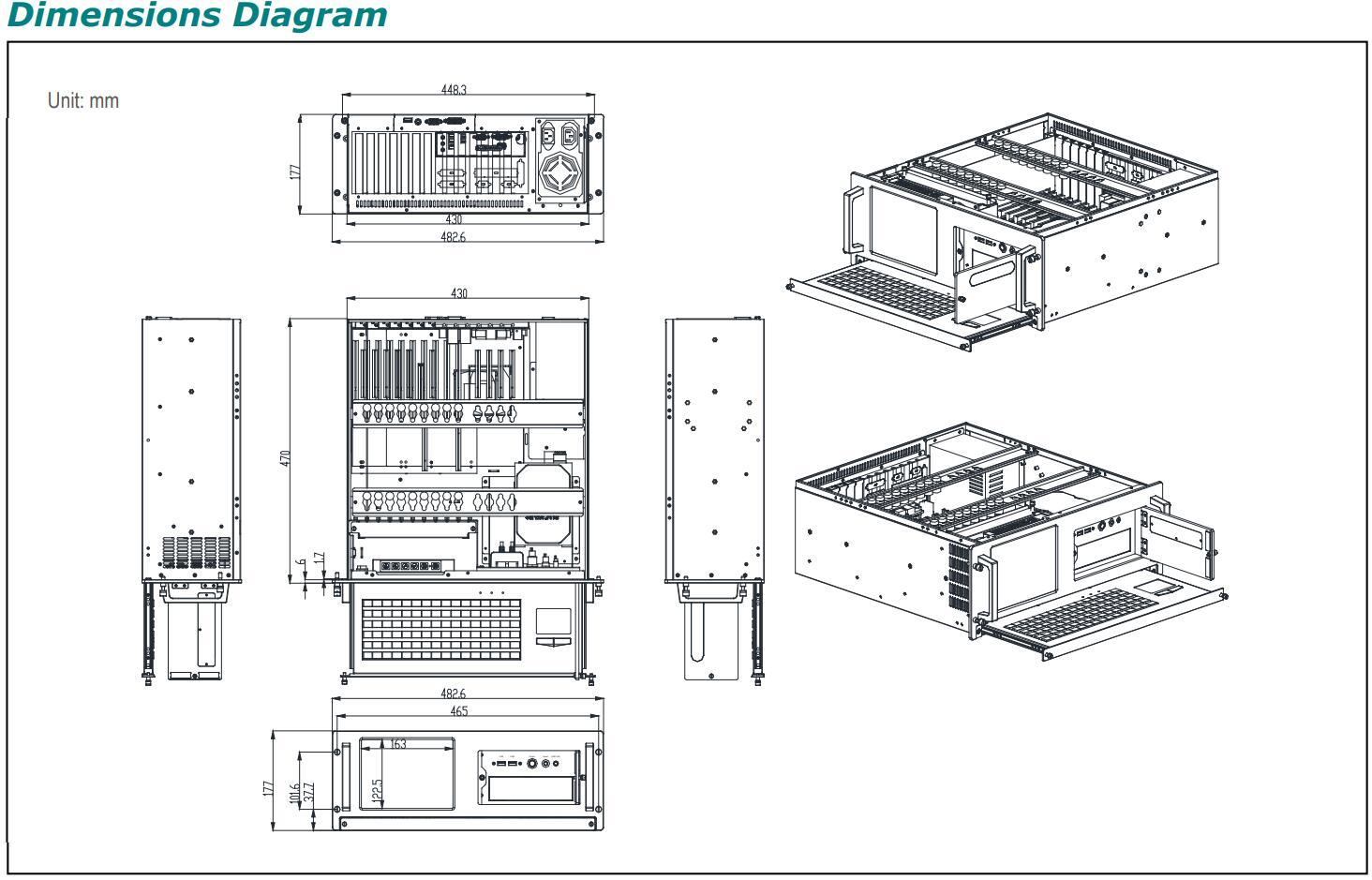

Dimensions(WxHxD) 386mm x 141.6mm x 376 mm
Packing Dimension 590x390x550mm
NET weight 16 KG
