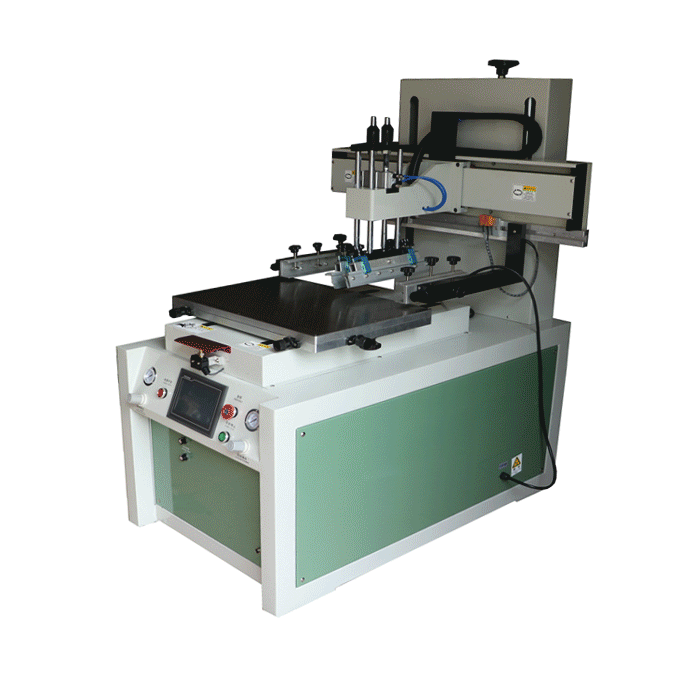

PS-3050PVH Flat precision screen printing machine with movement vacuum table //Structure

Working table

Vacuum working table, Size: 300*500mm

Actions

Up-down of screen plate

To be printed

• Plain objects

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision linear guideway

PS-3050PVH  Flat screen printing machine with movement vacuum table //Usage and characters

Guide

• Install movement table ensure operation more safety;
• Fit printing soft and thin products such as paper, plastics film etc；
• With vacuum working table ensure adsorbing object when printing;
• Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;
• Also widely used in Glass plate, Machine panel screen printing;
  With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;
• Suitable for printing sheet-fed adhesiving sticker;
• Suitable for printing water transfer label and heat transfer label through diffrent process;
• Max Printing area: 300*500mm;
• High Precision liner guideway installed to controll the movement of Rubber squeegee and screen frame. widely used to print circuit aboard , Film switch panel etc industrial field.

Application

• Widely used in Glass printing field;
• With UV curing machine, Can finish many UV special printing process for UV package industry.
• Suitable for printing Mobile windows ;
• Suitable for printing water transfer label and heat transfer label through diffrent process;
• The machine panel, plastic parts, Paper, furniture industry, glass industry, circuit board industry, film, wooden case, Precision Electron circuit

PS-3050PVH Flat screen printing Machine with movement vacuum table//Parameters

Technical parameters

• Max printing thickness: 150 mm；
• Air consumption: 80Litre/Min；
• Dimension of working table: 400×600mm；
• Max printing areas: 300×500mm;
• Max printing speed: 1000Pcs/H;
• Max frame dimension: 500×850mm;
• Compress air: 5-7 bar;
• Stroke of cylinder up and down:160mm；
• Stroke of Squeegee: 500mm;
• Table Precision: 0.05mm;
• Rang adjustment of table: 10mm.

Works supply

• 110V-220V Power supply；
• 5-7Barcompress air；

Package parameters

• Installing size : 1280×1030×1590mm
• Gross weight: 276kg;

• Package size : 1280×1030×1590mm
• Gross weight: 336kg;

H.S.CODE

8443192190

Certificate

CE

PS-3050PVH Flat screen printing Machine with movement vacuum table //Advantage

Function

• Working table can be in-out automatically, operation more safe;
• High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;
• Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.
