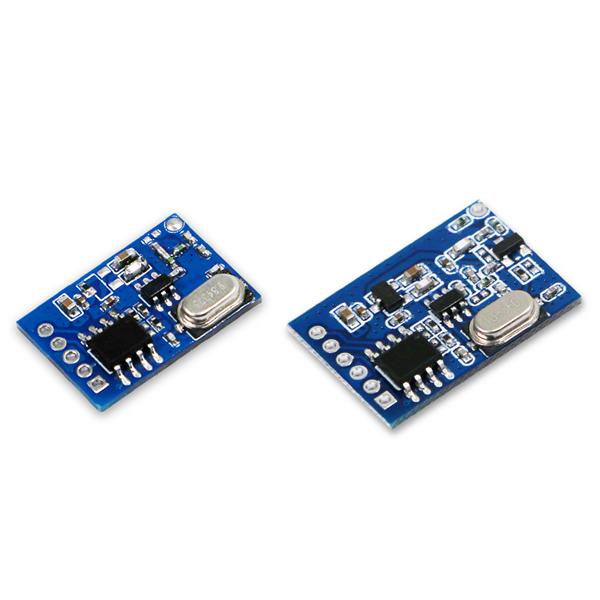

Compact high power wireless transmit module, with superheterodyneencode, highly integration of cost-effective wireless data transmission chip and excellent low power MCU.

It has the industry-standard transmission power and frequency stability, the data encoding rate is default 2K, sending time can be customized, and can be used together with our low-power receiving module.

● Max. transmitting power: 12dBm~22dBm

● Working frequency 433.92m (other frequencies need to be customized)

● Operating voltage: 1.8V-3.6V

● Rate: 0.5~40K

● Communication distance: 200~350m

● The sending time can be customized according to the power consumption of the receiving end

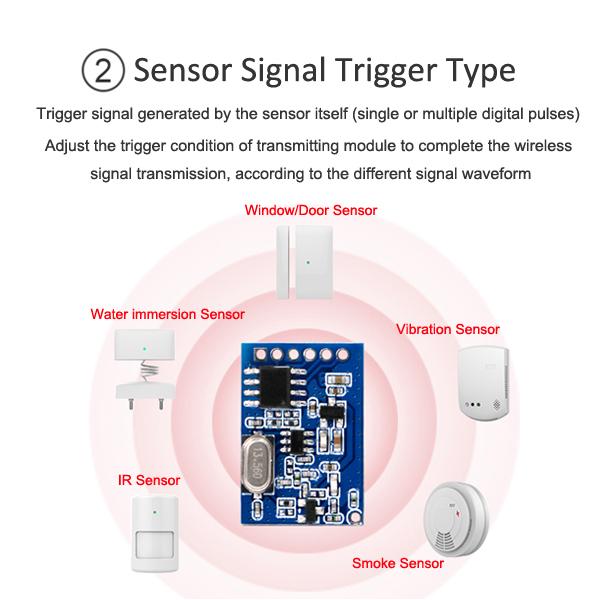

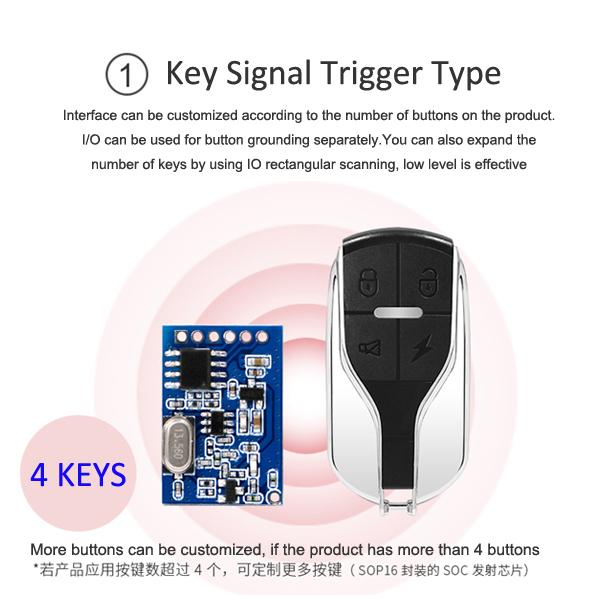

● Interface with 3 inputs, key or pulse signal

● Standard COMS interface control and decoded data output
