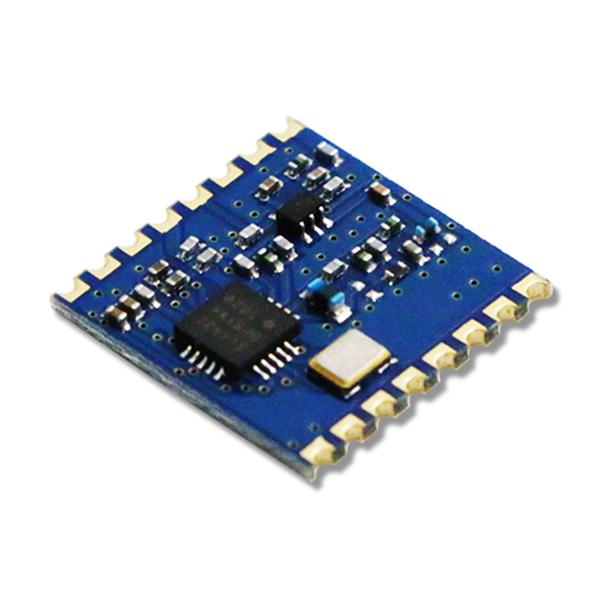

Based on Silicon Labs' SI4432 wireless transceiver chip design, it is a compact, low-power, and long-distance wireless transceiver module. The module adopts single-chip architecture, and the periphery adopts high-precision crystal, high-Q Murata inductor, small volume but high-capacity filter capacitor. All SMD components are used, and the interface is encapsulated with standard spacing stamp edge.

● 1200m transmission distance (1200bps)

● Working frequency: 433.92m (other frequencies need to be customized)

● Operating voltage: 1.8V-3.6V

● Low current loss in SHUTDOWN mode

● Efficient 4 - line SPI interface

● Separate 64-byte RX FIFO and TX FIFO

● Support WOR wireless wake-up function for portable devices
