Model: | pjl-1200 |
---|---|
Brand: | - |
Origin: | Made In China |
Category: | Industrial Supplies / Machinery / Spraying Machine & Spreading Equipment |
Label: | meter mixing dispens , meter mix machine , Dispenser Machine |
Price: |
-
|
Min. Order: | 1 pc |
https://www.youtube.com/watch?v=-DsymAa_Exw
manual AB glue metering mixing potting machine encapsulation machine
PJL-1200 system accurately meters, mixes and dispenses two-component medium to low-viscosity materials for potting, gasketing, sealing, encapsulation and syringe filling. For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.

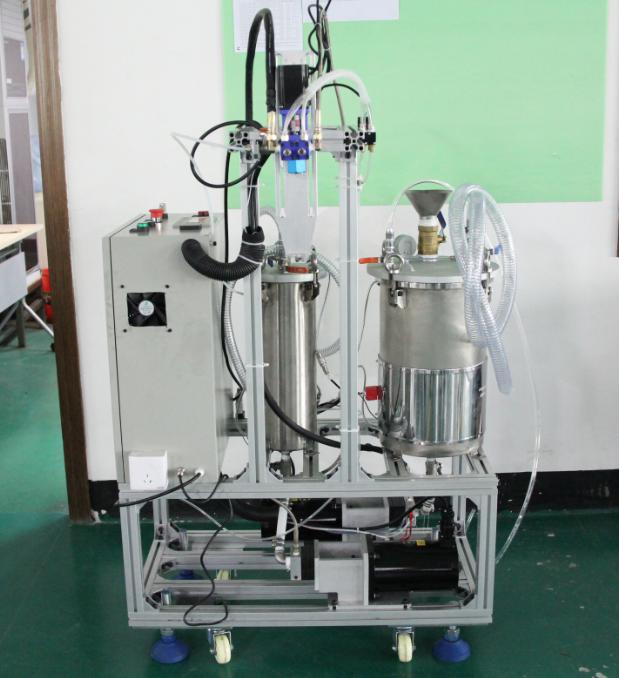

The system is composed of material tank, metering pump, metering motor, material pipe, two component valve, motor for dynamic stirring and mixing tube. Two kinds of glue are separated before they mix in mixing tube, so the glue will not cure in devices. Glue valve is with vacuum function to keep thin fluid from dripping. Other optional functions include:
Tank stirring function;
Tank defoaming function;
Thermostat heating function on Tank, pipe, and pump;
Specification manual AB glue metering mixing potting machine encapsulation machine |
|||
Mixing Method: |
Dynamic or Static, optional; |
||
Repeatability: |
±1% |
||
Mixing Accuracy: |
±1% |
||
Tank Capacity: |
10L/25L/40L/60L or Customized |
||
Mixing Ratio: |
1:1 - 1:10 adjustable |
||
Gluing Speed: |
5-66g/5s adjustable; |
||
Air Pressure: |
0.5-0.7Mpa |
||
Power Input: |
AC220V 50-60Hz or Customized |
||
Dimension: |
1500*1200*1500mm |
||
Weight: |
260KGS |
Applications
manual AB glue metering mixing potting machine encapsulation machine

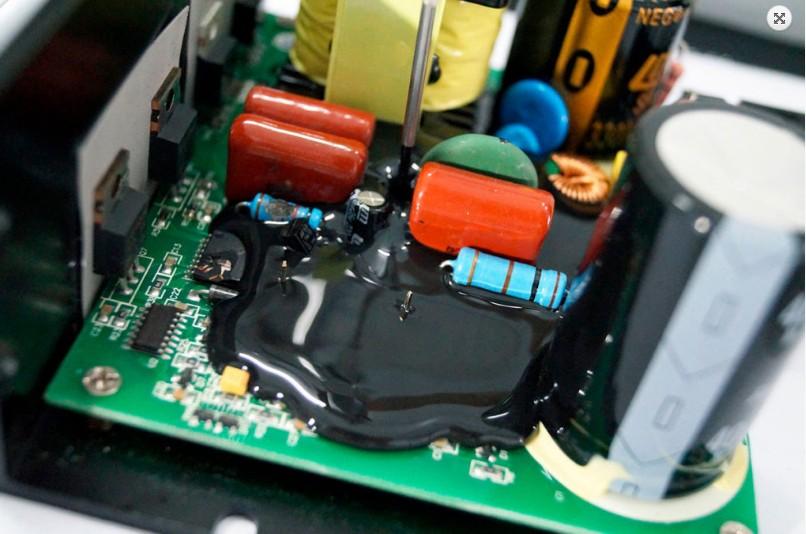

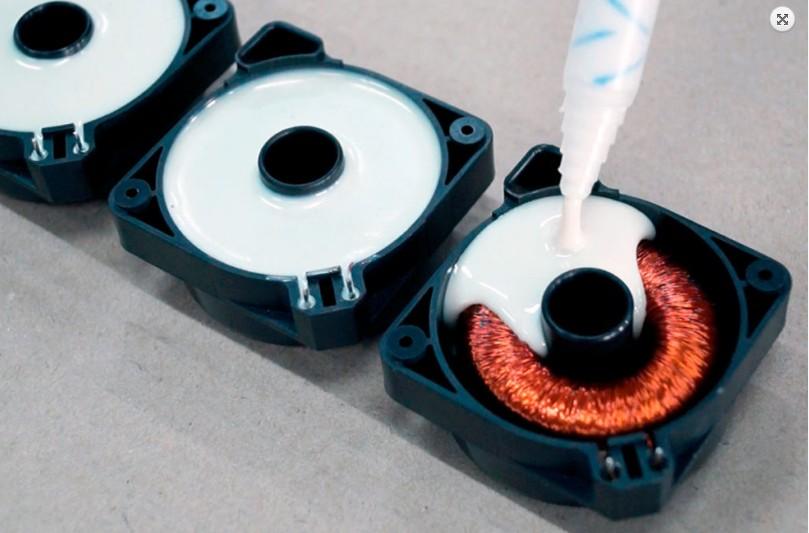

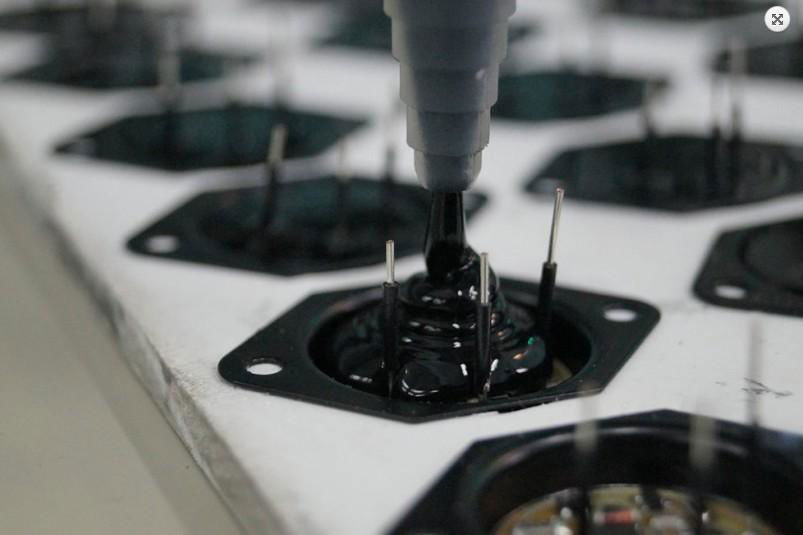

1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.
Specification manual AB glue metering mixing potting machine encapsulation machine |
|||
Mixing Method: |
Dynamic or Static, optional; |
||
Repeatability: |
±1% |
||
Mixing Accuracy: |
±1% |
||
Tank Capacity: |
10L/25L/40L/60L or Customized |
||
Mixing Ratio: |
1:1 - 1:10 adjustable |
||
Gluing Speed: |
5-66g/5s adjustable; |
||
Air Pressure: |
0.5-0.7Mpa |
||
Power Input: |
AC220V 50-60Hz or Customized |
||
Dimension: |
1500*1200*1500mm |
||
Weight: |
260KGS |
Applications
manual AB glue metering mixing potting machine encapsulation machine
1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.
