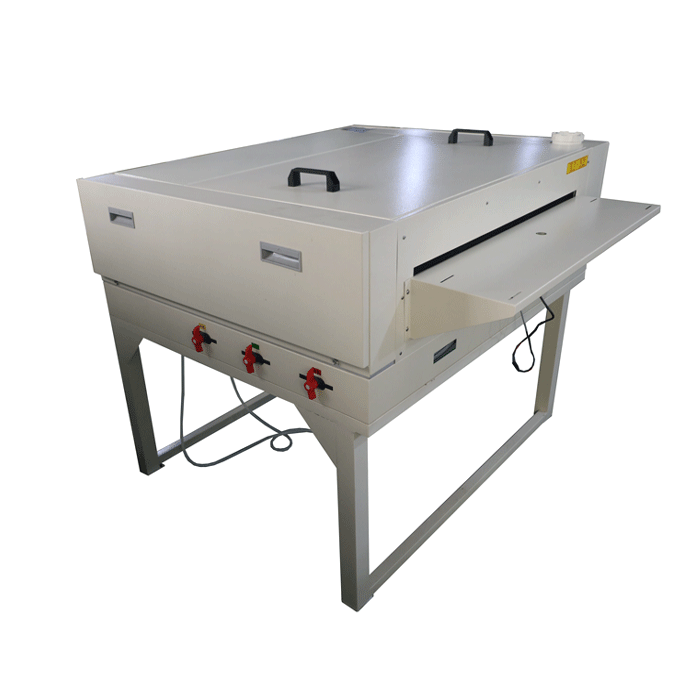

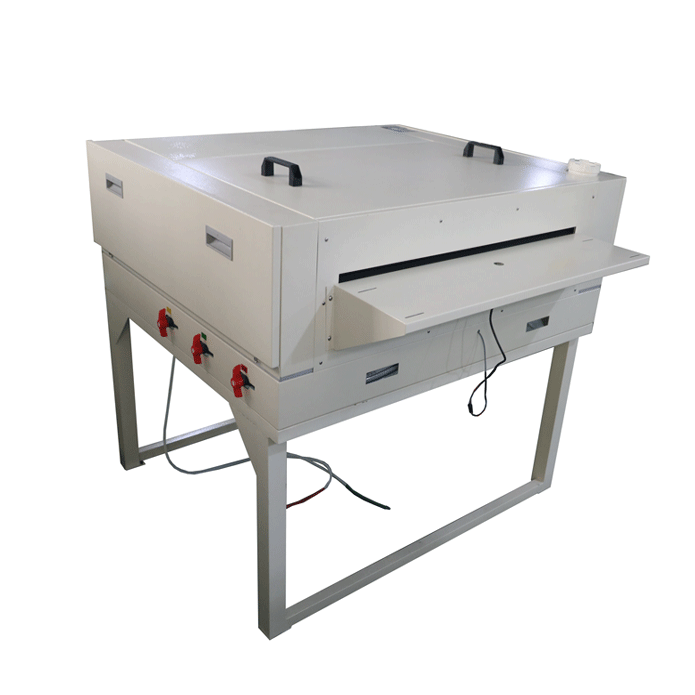

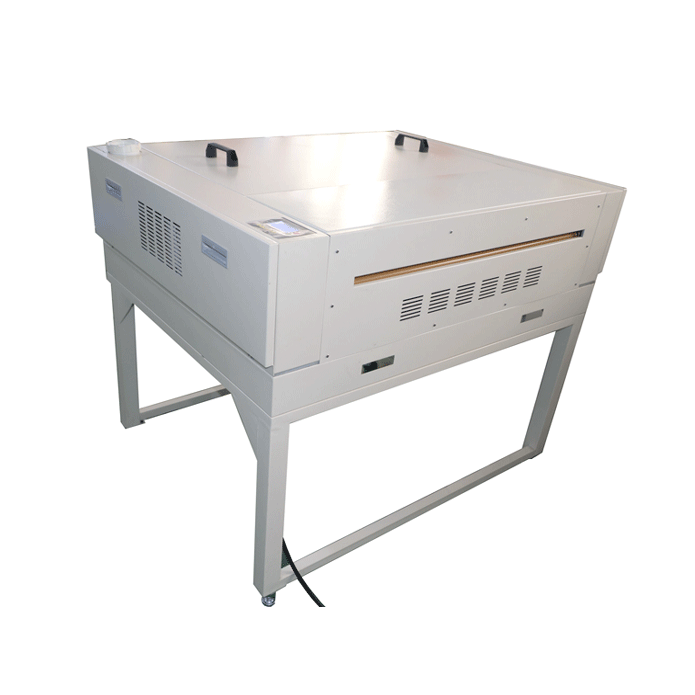

Film Developing machine //Usage and characters

Application fields

Film output during plate-making process of: pad printing, screen printing , Letterpress, Adhesive sticker printing, Bronzing, Middle-precision Grave printing, Middle-precision Offset Printing .Garment screen printing field.

Film developing machine //Parameter

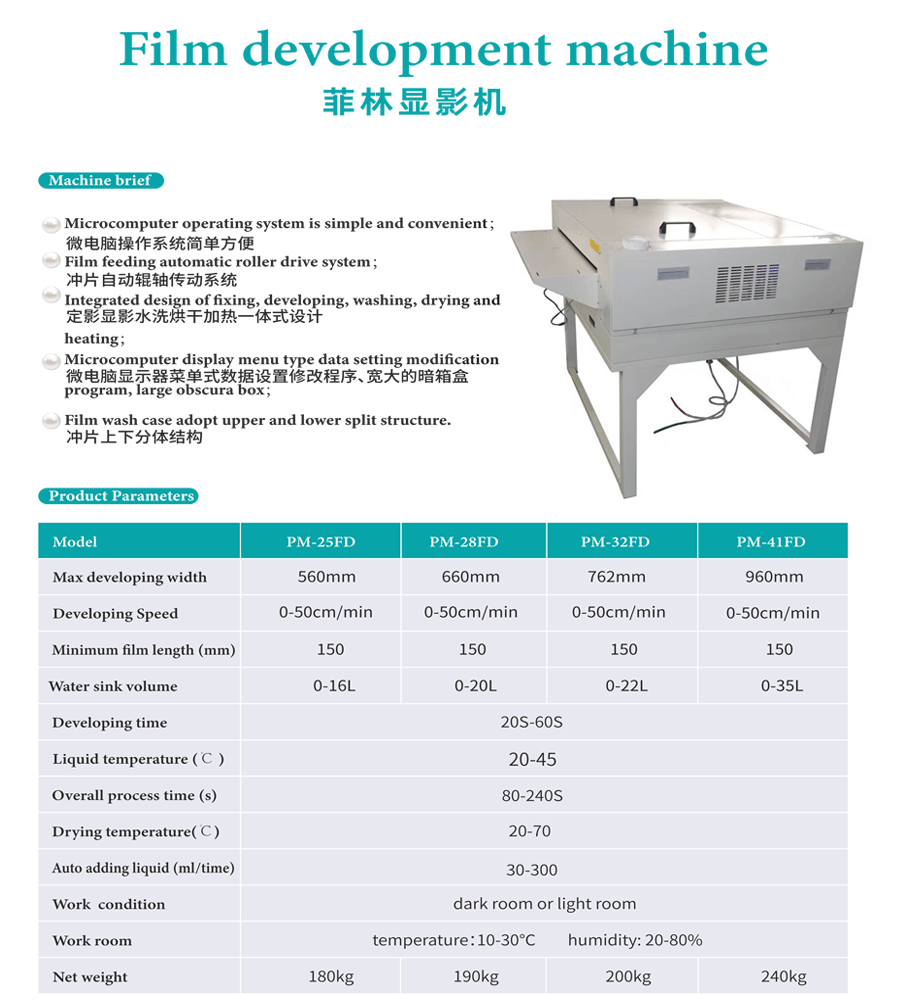

Technical parameters

PM-610FD

• Max developing width: 610mm;
• developing speed : 50-200cm/M;
• Devoleping sink Volumn ： 13L
• Fixation sink volumn ： 13L
• Water sink volumn： 13L
• Developing time： 20S-60S  Temerature ： 20-45
• Fixation time：20S-60S    Temerature ： 20-45
• Washing time： 20S-60S
• Drying time：20S-60S    Drying temerature： 20-70
• Work addition: dark room or light room;
• Work roon : Temperatue 10-30  Humidity  20-80%
• Net weight： 160kg.

PM-710FD

• Max developing width: 710mm;
• developing speed : 50-200cm/M;
• Devoleping sink Volumn ： 15L
• Fixation sink volumn ： 15L
• Water sink volumn： 15L
• Developing time： 20S-60S  Temerature ： 20-45
• Fixation time：20S-60S    Temerature ： 20-45
• Washing time： 20S-60S
• Drying time：20S-60S    Drying temerature： 20-70
• Work addition: dark room or light room;
• Work roon : Temperatue 10-30  Humidity  20-80%
• Net weight： 160kg.

PM-810FD

• Max developing width: 810mm;
• developing speed : 50-200cm/M;
• Devoleping sink Volumn ： 18L
• Fixation sink volumn ： 18L
• Water sink volumn： 18L
• Developing time： 20S-60S  Temerature ： 20-45
• Fixation time：20S-60S    Temerature ： 20-45
• Washing time： 20S-60S
• Drying time：20S-60S    Drying temerature： 20-70
• Work addition: dark room or light room;
• Work roon : Temperatue 10-30  Humidity  20-80%
• Net weight： 160kg.

Works supply

• 110V-220VPower supply；
• 5-10M2 dark room;

Package list

• Package Dimension: 890×580×760mm;
• Gross weight: 110Kg
• CBM: 0.3071

H.S.Code

8443198000

Certicate

CE

 Film developing machine //Advantage

Function

• The microcomputer operating system is simple and convenient, with high stability, and realizes automatic control. Turn on the power switch to automatically enter work.
• For the program.When the temperature of the medicine reaches the set value, put the film in for washing, and automatically turn on the roller drive system.
• Fixing and developing, water washing valve, drying and heating systems are all done in one go. When there is no film, it will automatically enter the energy saving state
• Microcomputer display, menu-type data setting modification program, upper and lower split design, wide dark.
• A series of innovative designs such as boxes, large-capacity collection boxes, anti-oxidation devices for liquid medicines, etc.
• The body adopts galvanized sheet structure to ensure no Will rust, the sink is made of imported stainless steel, which is sturdy and durable, and the traction roller is wear-resistant, corrosion-resistant and resistant Aging and high temperature resistance.
• Worm gear guides are processed by high-quality imported plastic molds, which are durable.
• The side plate of the fixed roller adopts imported stainless steel, which is stronger and more durable than the plastic side plate
• The punching machine adopts the upper and lower split structure, which is easy to clean and maintain, and the roller frame is easy to extract. Without the use of tools, the parts can be disassembled and maintained
