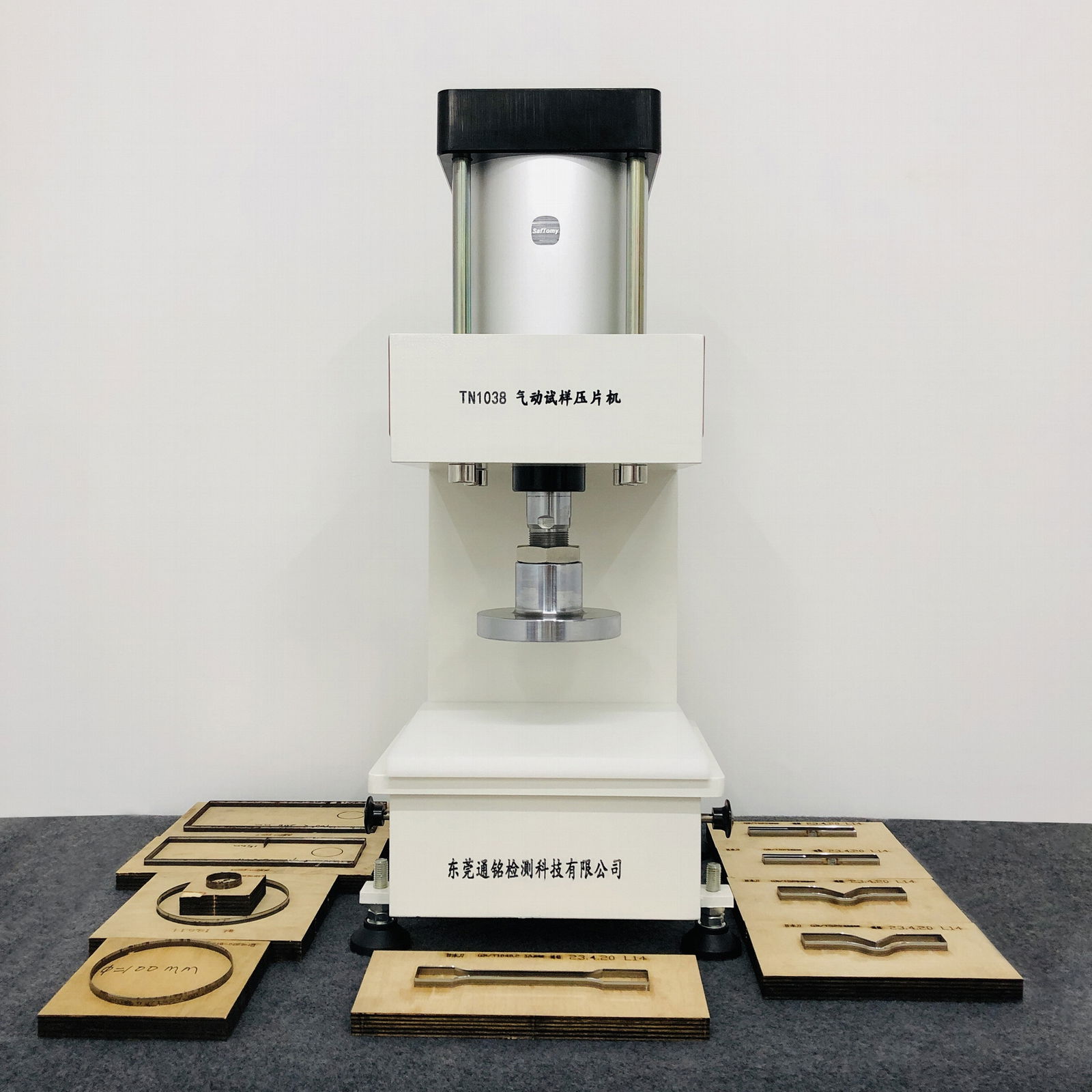

TN1038  Universal Pneumatic Sample Press



INTRODUCTION

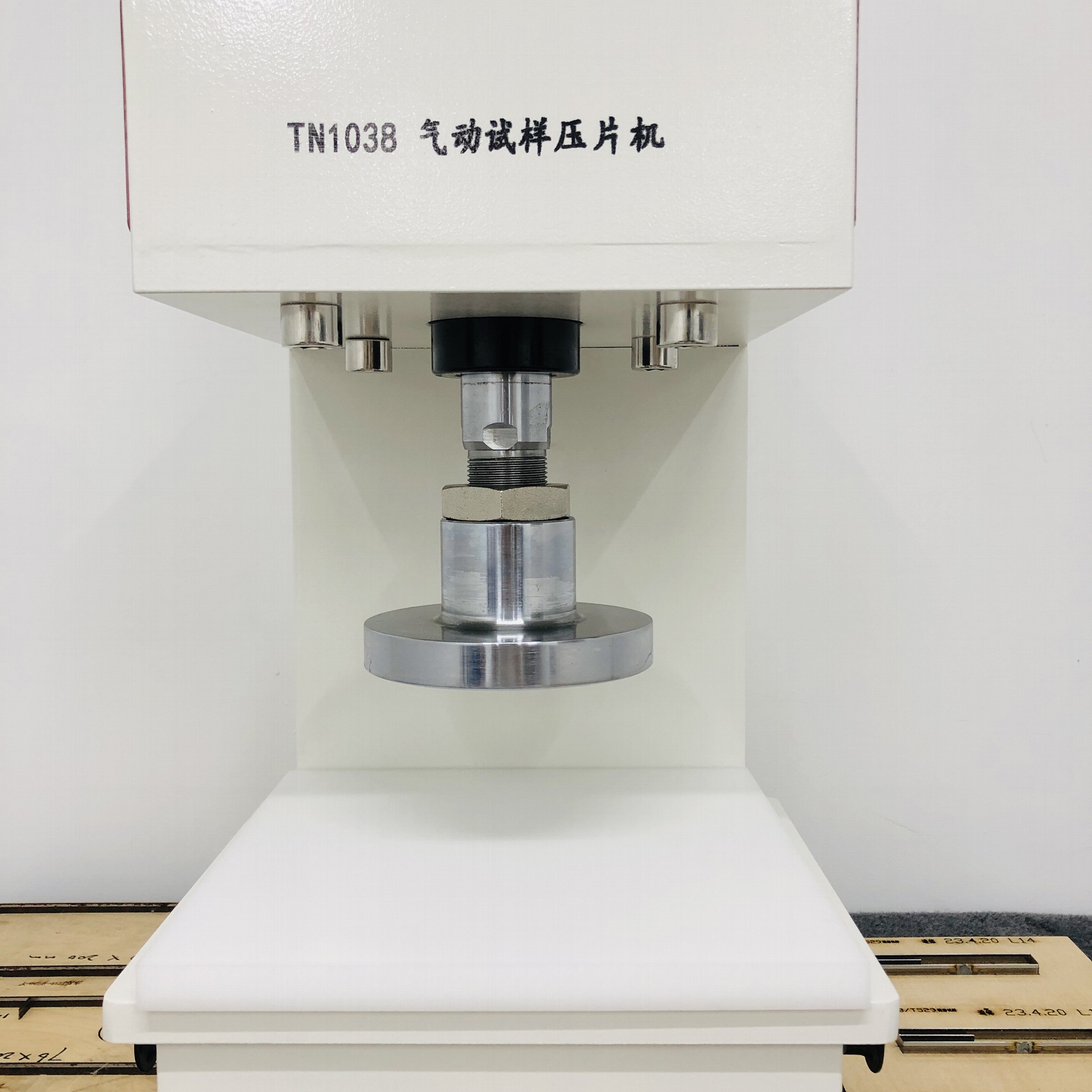

The pressure cylinder is driven by pneumatic power, and the cutter is pressed by the pressure plate. It is used for cutting fabric, leather, plastic, rubber and other materials, and can be cut out of a variety of samples with different cutting knives.

Different high steel dies are suitable for supporting gram weight, wear resistance, pilling, strength, water washing, stiffness, static electricity, water, wrinkles and other sample cutting.

FUNCTIONS AND FEATURES

1.The machine does not need to be connected to the power supply, double key operation, simple and convenient, to ensure the safety in the process of use.

2.The use of safe and clean high pressure air power, with all kinds of high steel knife die, to solve the problem of cutting samples in the laboratory work is time-consuming and laborious, fast and effective to ensure the smooth progress of all kinds of tests and perfect and reliable samples.

3.Special cutters can be provided according to requirements, requiring the use of laboratory standard air compressor.

TECHNICAL PARAMETERS

1.Pressure plate diameter : ≤ φ185 mm

2.Trip : 50 mm

3.Maximum output : 1000 kg

4.Cutting depth : 0~10 mm

5.Air pressure : 6 kg/cm² (user provides)

6.Dimension : 28×48×62 cm (L×W×H)

7.Weight : 25 kg
