Detailed description: High-precision vertical grinder (FVG)

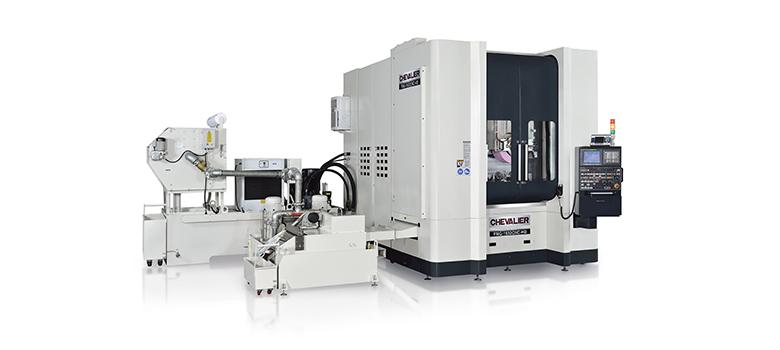

FVG-4040DC
High rigidity, high precision vertical grinder

It is not affected by the vibration and deflection caused by the weight of the workpiece and the fixture and affects the grinding accuracy.
The Y-axis can be rotated by an angle of ±22o30' to provide linear feed slope grinding, and the head of the spindle can also be rotated by an angle

Turn +22o30', the grinding workpiece shape range is wider.
The lifting includes a counterweight device, which can make the lifting and moving smoothly.
The track adopts linear slide, which has high positioning accuracy and low cutting vibration, which is suitable for the advancement of high-precision heavy cutting of the grinder.

give.
Irregular shape workpieces are easy to clamp.
SMART control system
Inner hole grinding size range: 50~1,000mm
Peripheral grinding size range: 1,200mm
Maximum grinding length: outer diameter / inner diameter up to 700/ 700mm
Workpiece chuck diameter: 1,000mm
Maximum turning diameter of workpiece: 1,400mm
Maximum load of the table: up to 2,000Kg
Spindle motor: up to 15kW
Single-disc roller dressing device
Single disc roller for dressing
Work measurement system
Round disk
Circular rotating electromagnetic disk
Automatic power-off device
Automatic door device
Cutting fluid cooling device
Powerful electromagnetic water filter (capacity: 500L horsepower: 1.1kw)
X/Z axis optical scale feedback device
Oil mist recovery machine
Fanuc controller
