10t LDP Model EOT Electric single-beam bridge crane with hoist

Model:	LDP
Brand:	Kuangyun
Origin:	Made In China
Category:	Industrial Supplies / Other Industrial Supplies
Label:	single-beam bridge c , EOT Crane , Overhead Crane
Price:	US $3000 / pc
Min. Order:	1 pc

Inquire Now

Product Description

10t LDP Model EOT Electric single-beam bridge crane with hoist

Product Description:

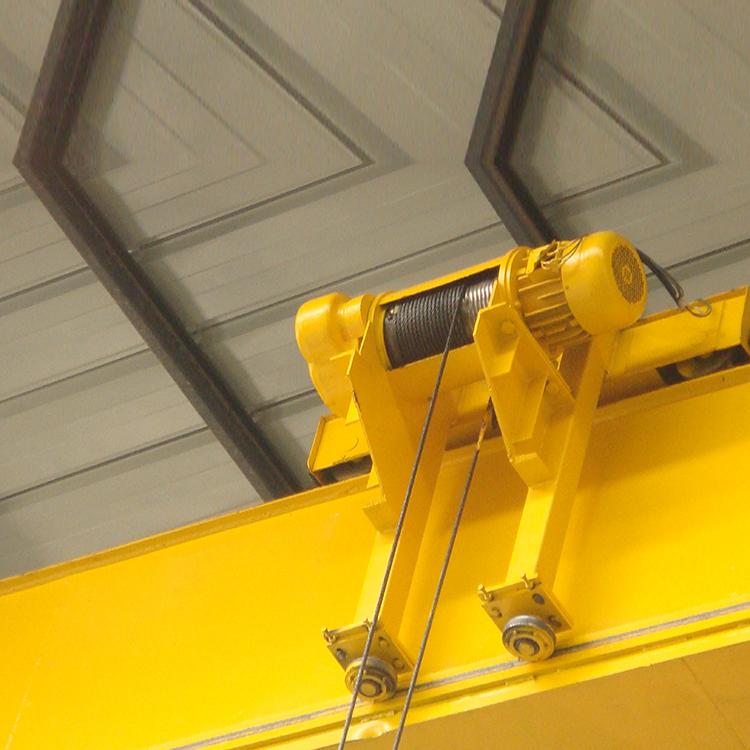

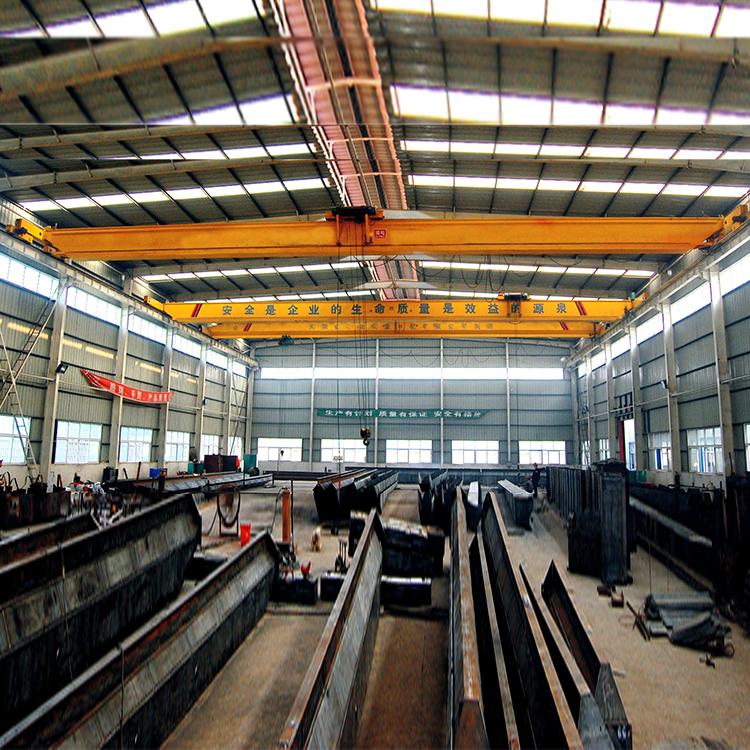

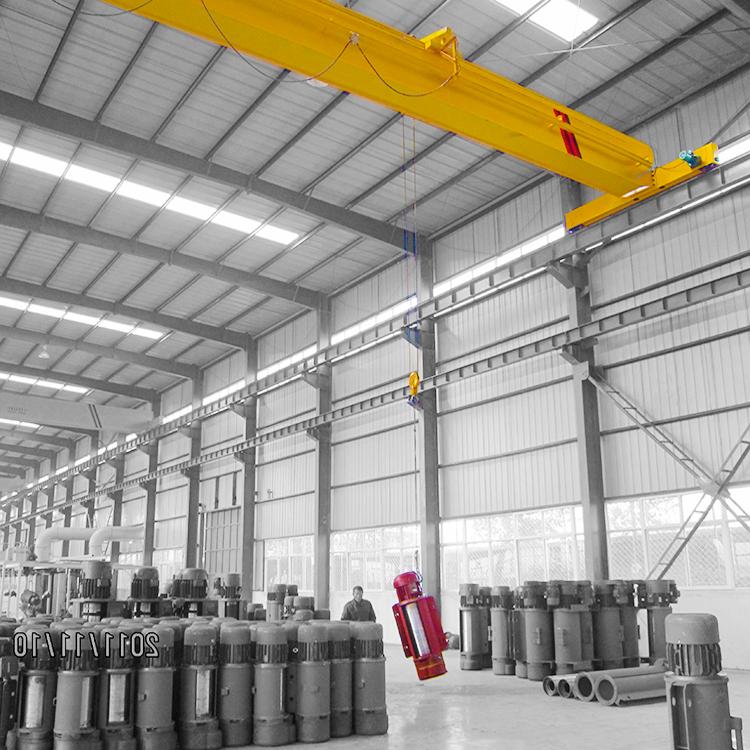

LDP model EOT Single Girder Ovehead Crane is designed as light type lifting equipment according to China standard. It is equipped with the features of reasonable structure,max.lifting height, strong rigidity of whole set. This crane equips with wire rope electric hoist to lift different cargoes, its capacity can vary 1--20ton and span 7.5---31.5m, working class A3-A4 according to ISO standard.This kind of crane is widely used in factory, warehouse, stuff yard to lift goods, forbidden to use in flammable, explosive and corrosive environment (we have explosion proof and casting single girder crane for special condition). This single girder overhead crane is operated by pendent control or remote control.

Product Structure:

Capacity(t)	1t, 2t, 3t, 5t	10t	16t
Span(m)	6.5m---28.5m
Lifting height(m)	3m---30m
Control mode	Pendant control, wireless remote control, cabin control
Lifting speed(m/min)	2.8 ,8 , 8/0.8	2.3 , 5/0.8 7, 7/0.7	4, 4/0.4
Traveling speed(m/min)	20,30,45 (Inverter)
Service class(work grade)	a) M2, M3: used in places of mild service, such as workshop and warehouse. b) M4: used in places of Medium service such as assembly and depot.
Supply power(three phase power)	380V 50HZ 3Phase (according to user require)
Hoist type	Wire rope or chain hoist, single or double speed
Working ambient temperature	-20 °C~ <55°C.
Note	It’s not suitable for lifting blazing & melting metal or toxicant as well as explosion-proof or insulating working conditions.

Product Details:

Safe configuration:
1.Weight overload protection device
2.Top quality durable polyurethane buffer
3.Crane traveling limit switch
4.Low voltage protection function
5.Emergency stop system
6.Current overload protection function

Main Product

Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane.

Certifications

We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

FAQ:
Q1.What do Henan mine crane do?

A: We design,manufacture,install overhead crane ,granty crane, port ciane,hoist mwinch and provide customer lifting solutions.

Q2.Do you provide professional crane servicing?

A: Yes and our service team offer a range of professional services to installation and your crane.

Q3.What do I need to consid when purchasing from you?

A:Standard items to conside when purchaing any lifting equipment such as over as overhesd crane and gantry crane or hoist ,it including safe working load ,span and lifting height, duty cycles and cost of spare parts.

Q4.What makes you different from other manufacturers?

A: We have trained service technicians who will be able to get your material handing equipment up and running ,and have been providing our customer's an effective solution.

Q5.What areas do yo serves?

A: We maily service in china and can send engineers provided installations and maintenancein all over the world.
