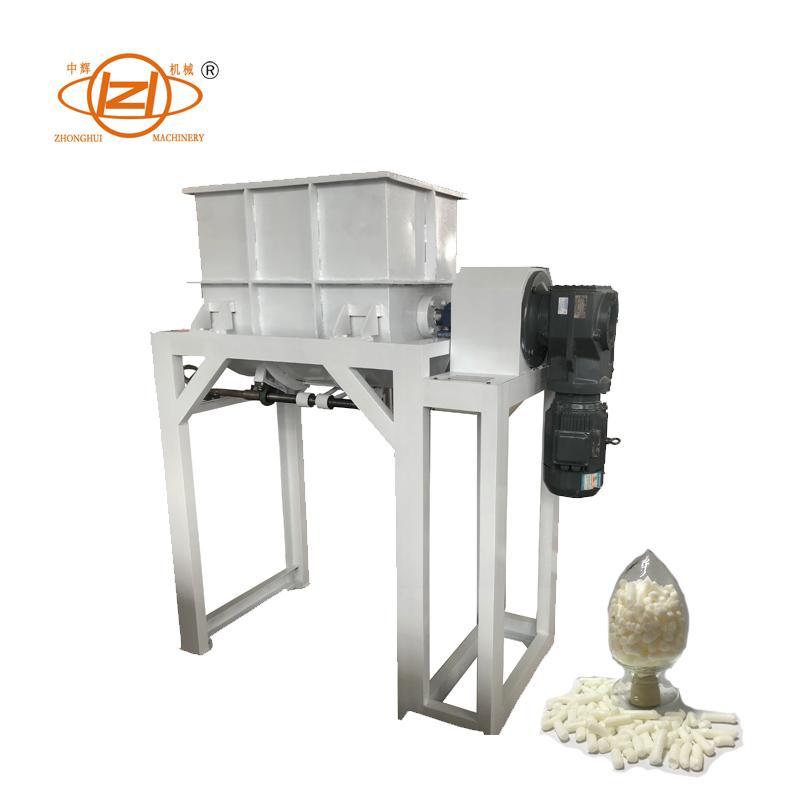

Mixer Agitator for Soap Making Machine

Mixer Agitator for Soap Making Machine
Model:-
Brand:zhonghui
Origin:Made In China
Category:Chemicals / Other Chemicals
Label:Mixer , Amalgamator , Bath mixer
Price: US $4600 / pc
Min. Order:1 pc
Inquire Now

Product Description

Mixer /Mix Agitator /Mixing Machine/Amalgamator/Batch Mixer

Description:

Mixer machine mixing,breaking and milling soap noodle and other additives,make them more fine and smooth, too meet different soap formula demand.



Configuration

Ø Motor: Guomaoor same brand in China

Ø Gearbox: Guomaoor same brand in China

Ø Bearing : Haerbin

Ø Frame material: U carbon steel

Ø Mixing tank material: stainless steel 304

Technical Parameters:

Model

Capacity

(kg/batch)

Power

(Kw)

Rotating speed

(r/min)

Dimension

(mm)

Weight

(kg)

XTM-50

50

3

32

1730*700*1750

440

XTM-100

100

5.5

32

2240*810*1400

670

XTM-150

150

7.5

32

2505*870*1600

820

XTM-200

200

11

32

2300*820*1460

1000

Principle of operation :

The equipment drives the mixing shaft to rotate at a uniform speed through the motor and reducer. Using the rotating motion of the screw, the two mixing blades fixed on the rotating shaft can continuously lift and scatter the soap noodle / soap flakes and various liquid or solid additives. The raw materials can be mixed evenly in a short time, so that the additives and auxiliary materials can be quickly and evenly integrated into the soap base.

After mixing, manually rotate the screw, slowly open the discharge port, and the soap falls into the conveyor belt.

Advantages/Feature:

1.Combining with the principle of traditional mixing machine, design a mixing machine suitable for soap production.

2.Upgrade all materials of the equipment and accurately calculate the distance between the propeller blade and the cylinder wall to avoid wear.

3.The equipment adopts welding process, which is firm and durable. Compact structure and beautiful appearance.

4.Two way S-shaped mixer blade, thickened design.

5.Adopt brand motor, reducer and bearing, more durable.

6.Top cover design, not only convenient feeding, but also prevent dust from flying.

7.There is a safety net inside the cover.Safety net can be removed for easy equipment maintenance, maintenance, cleaning and cleaning.
