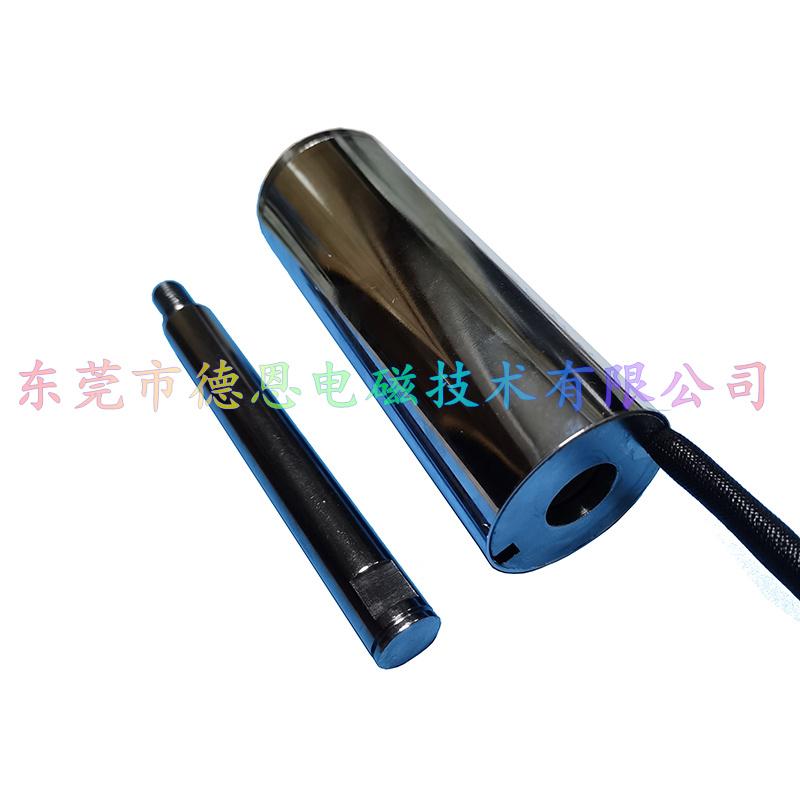

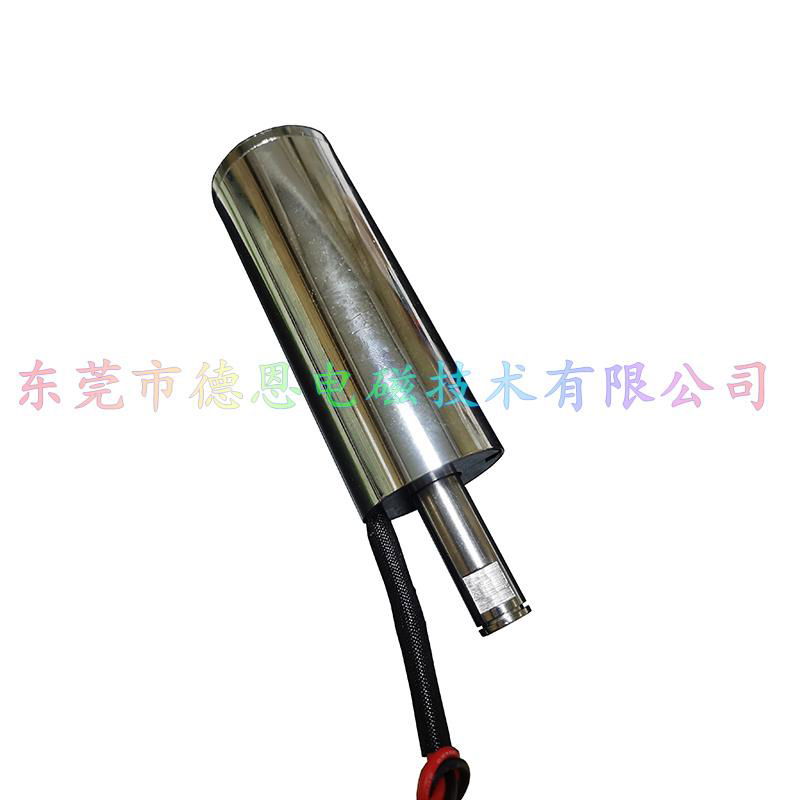

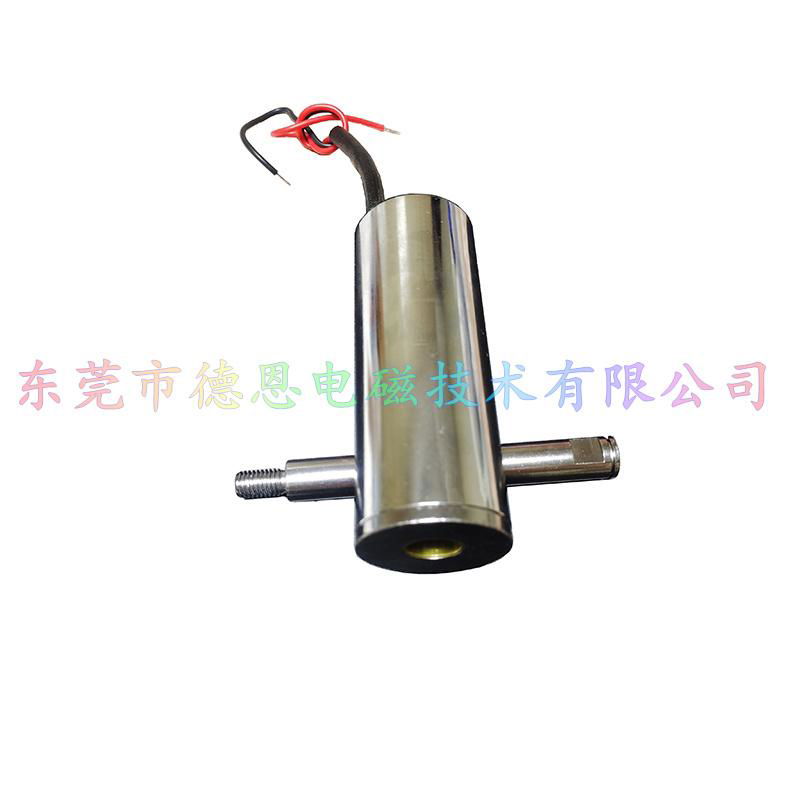

DO45119 Long stroke high thrust electromagnet
Model meaning: D O 45119 S D: represents the company code (Dern) O: represents the electromagnet type (round tube) 45119: represents the specification model (diameter and length) S (push type) L (pull type)
The cylindrical shape design enables it to generate a large magnetic force in a small volume, with good magnetic circuit performance, long stroke, large force and fast response speed.
Size: The main body size is 45mm in outer diameter and 119mm in length.
Stroke: 1-50mm
Working voltage: AC/DC24-220V
Working environment temperature: -10℃-180℃
Withstand voltage: AC1200 (50/60HZ) 1 second between coil and frame, (10mA)
Temperature rise: under voltage DC12V, the temperature rise is less than 70℃
Life: 1 million times (on for 1 second, off for 4 seconds)
Resistance and power: set according to customer requirements
After-sale service: If the product has non-human damage within three months, it will be replaced and repaired within one year.
Use of electromagnet
1. Braking electromagnet: It is used as the mechanical brake of the motor in the electrical transmission device to achieve the purpose of accurate and rapid parking. The common models are MZD1 (single-phase), MZS1 (three-phase) series.
2. Lifting electromagnet: used as a lifting device to lift magnetic conductive materials such as steel and iron sand, or used as an electromagnetic manipulator to hold magnetic conductive materials such as steel.
3. Valve electromagnet: use the magnetic force to push the magnetic valve, so as to achieve the purpose of opening, closing or reversing the valve port.
4. Traction electromagnet: mainly use traction mechanism to perform automatic control tasks.
Dongguan Deen Electromagnetic Technology Co., Ltd. is a company specializing in the field of electromagnetism. It mainly develops and produces various types of electromagnets, solenoid valves, solenoid pumps, etc.
