CPC Photoelectric Strip Automatic Center Position Control System

CPC Photoelectric Strip Automatic Center Position Control System
Model:CPC-D100
Brand:ZFY
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Other Metallic
Label:strip centre control , strip deviation cont , strip centre guiding
Price: US $5000 / pc
Min. Order:1 pc
Inquire Now

Product Description

CPC-D100 CPC Photoelectric Strip Automatic Center Position Control System

The composition of the system

The photoelectric strip automatic center position control system is mainly composed of sensors, amplifiers, PLC controllers, hydraulic control and other parts.

System composition block diagram



The main technical parameters

1. Detection width: 300-2800mm

2. Detection light source: 220VAC. (100VAC) 30W. High frequency white light works continuously

3. Photodetector: precision die-casting components, time constant 20ms

4. Maximum working voltage: <50VDC

5. Distance from receiver to emitter: 300-1000mm

6. Operating temperature: 0℃-60℃

7. Resolution: <0.5mm

8. Linearity: <±1%F.S (after linearization)

9. Repeatability error: △R<1%, F.S

10. Servo-valve working signal: ±10V

11. Rated pressure (oil pressure): 4.5Mpa

12. Rated flow: 30L/min

13. Symmetry: <10%

Wuhan CenterRise M&C Engineering CO., Ltd.
more info, please contact zero zero eight six one three nine nine five five eight eight five nine seven

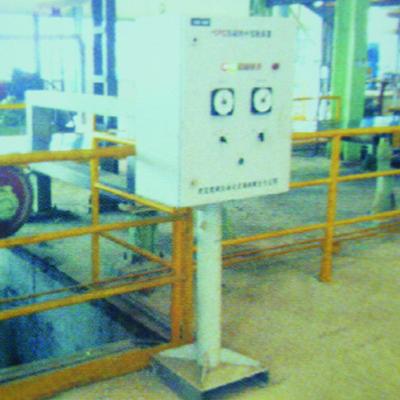

CPC Photoelectric Strip Automatic Center Position Control System 1
