Application:



This machine is high speed LED UV screen printing machine. With automatic loading and unloading system, can printing disposable plastic cups, pp cups, PET Cups, Paper Cups, U type cups and other regular round objects.

Automatic cup printing machine Feature:

1 Automatic 4 digital counter, counting printing capacity;

2 whole cast alloy aluminum machine body, surface paint.

3 Double-column lifting structure, stable and high accuracy;

4 left and right stroke is adjustable, Taiwan limit position switch.

5 Scraper/ink cover blade angles is adjustable;

6 with scraper Double-column lifting structure to ensure all printing pressure is steady.

7 The worktable front/ back, left/right, rotary is micro adjust and locking.

8 screen frame position can be adjusted to front/back, left/ right, level and high/low.

9 Up and down, left and right with Taiwan CEC hydraulic shock absorber to Eliminate printing shock.

10 Whole machine moving fast, steady and low voice.



Automatic cup printing machine Parameter:

Item No.: US-300RMT

Controlling System: PLC +(HMI )Human-machine interface compilation action program

Loading System: Automatic Loading

Unloading system: Automatic unloading by manipulator

Conveyor system: 12 stations for high-precision cam splitting components

Conveyor driver: Globe Motor

Left/ Right Driver: Servo Motor/ Stepping Motor/ Pneumatic cylinder adjustable

Up/Down: Servo Motor/ Stepping Motor/ Pneumatic cylinder adjustable

Drying System: UV drying

Left and right stroke: 300mm

Up and Down stroke: 100mm

Printing size: 200x 300mm

Max Screen Frame size: 400x 500mm

Max printing diameter: 95mm

Printing speed: 2200 to 2500 times/ hour

Working Voltage: AC 220V, 1 Phase  500W

Working Pressure: 5 to 7 Bar

Weight: 480kgs

Machine Dimension: 1450x 1050x 1780mm

Remark :

1 Producing time:  20 to 22 days when get your deposit.

2 Warranty Time: 1 year

3 Pack: Standard export plywood case

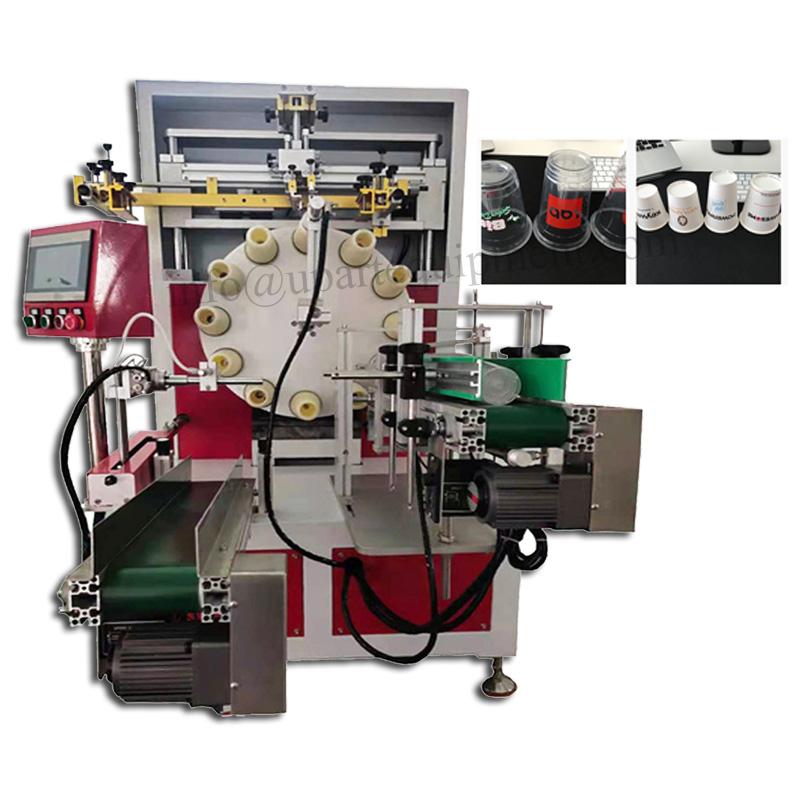

Automatic cup printing machine Details:
