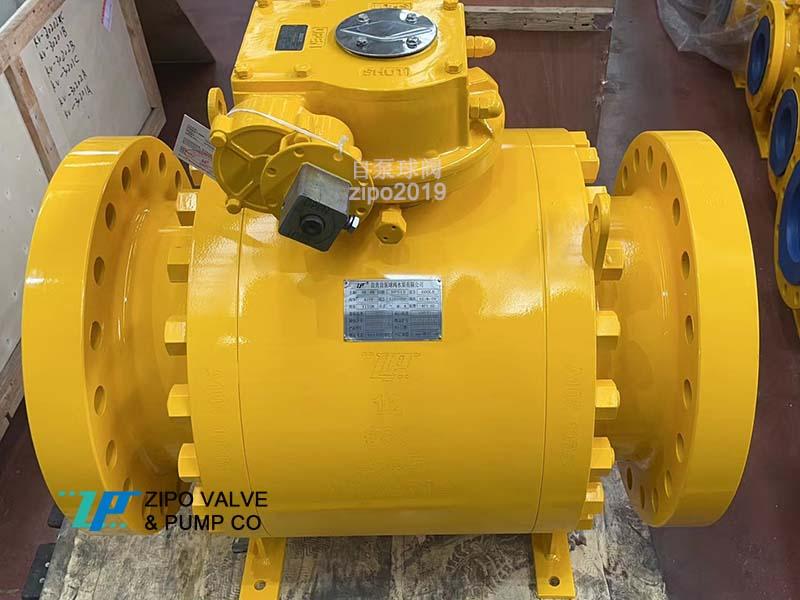

ZIPO forged steel split three-piece body flanged end trunnion mounted ball valve

Design standard: ASME B16.34, API 6D, GB, GOST, DIN, BS, etc

Pressure and temperature rating standard: ASME B16.34 / GB / T12224

Structural length standard: API 6D, ANSI B16.10, GB 12221, GOST, DIN, BS / manufacturer's standard / user's requirements

End connection standard: BW butt welding (ASME B16.25, ASME B31.8 and other national standards), RF raised face flange (ASME B16.5, ASME B16.47, GB / JB / HG / GOST, DIN, etc.), RTJ ring groove flange (ASME B16.5, ASME B16.47, GB / JB / Hg / GOST, DIN, etc.), BW + pups (length of pups is specified by users)

Inspection standard: API 6D / API 598 / GB / T 13927 or other relevant standards

Fire safe standard: API 607 / API 6fA / BS 6755

Antistatic standard: API 608/BS 5351

Sulfur resistant standard: NACE Mr. 0175, etc

Leakage class: soft seal: ISO 5208 class A, metal seal: ISO 5208 class C and above, ANSI class VI

Valve body structure: two or three piece, split type, bolted, forged steel valve body structure

Valve seat structure: self relief / double piston effect valve seat / upstream self relief valve seat downstream double piston effect valve seat (optional)

Ball: solid ball, trunnion mounted

Bore: full bore / reduced bore (optional)

Stem: stem blowout proof, stem extension (optional)

Seal: soft seal / metal seal / composite seal (primary metal seal + secondary soft seal), firesafe and anti-static

Optional accessories: grease injection valve, vent valve, drain valve, locking device

Common materials:

Body: carbon steel A105 / LF2 stainless steel 304 / 316 / / 304L / 316L / F51 / 2205 / alloy steel forging

Ball: carbon steel / stainless steel / alloy steel forging nickel plating / chromium plating / spray welding hard alloy

Seat support ring: carbon steel / stainless steel / alloy steel forging nickel plating / chromium plating / spray welding hard alloy

Seat: PTFE, RPTFE, VITON, NYLON, DEVLON, MOLON, PEEK / sealing surface spray welding, tungsten carbide, Stellite;

Stem: stainless steel / alloy steel / Inconel, etc

Product advantages: the valve body adopts forging to prevent casting defects, split bolt connection and easy maintenance.

Common models: Q347F, Q347N, Q347H, Q347Y, Q367F, Q367H, Q367Y, Q947F，Q947H，Q947Y, Q967F, Q967H, Q967Y, Q647F，Q647H，Q647Y, Q667F, Q667H, Q667Y

Size range: NPS2 "(DN50) ~ NPS60" (DN1500)

Pressure range: Class 150Lb (PN16) ~ Class 2500lb (PN420)

Actuator mode: Lever, worm gear, electric actuator, pneumatic actuator, hydraulic actuator, pneumatic hydraulic actuator, and electric hydraulic actuator.

Manufacturer: ZIPO VALVE & PUMP CO., LTD
