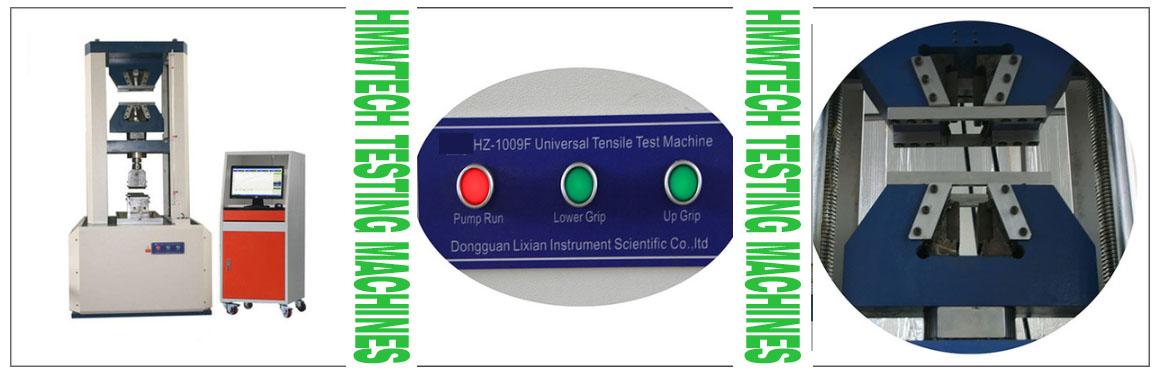

Universal material testing machine is a new type of material testing machine that combines electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measuring range, high accuracy and sensitivity for the measurement and control of load and displacement, and can also carry out automatic control tests of constant speed loading and displacement. With simple and convenient operation, it is especially suitable to be used as a testing instrument for product quality control on the production line. This series of models is mainly applicable to the test of non-metallic and metallic materials with test load less than 50 tons.



Purpose of equipment:

Universal material testing machine is mainly applicable to the testing of metal and non-metallic materials, such as rubber, plastic, wire and cable, optical fiber and cable, safety belt, safety belt, leather belt composite material, plastic profile, waterproof coil, steel pipe, copper, profile, spring steel, bearing steel, stainless steel (and other high hardness steel), casting, steel plate, steel strip, non-ferrous metal wire rod tensile, compression, bending, shearing, peeling Tear, two-point extension (additional extensometer is required) and other tests



Applied industries:

Universal material testing machine is widely used in measurement and quality inspection; Rubber and plastic; Metallurgical steel; Machinery manufacturing; Electronic appliances; Automobile production; Textile chemical fiber; Wire and cable; Packaging materials and food; Instruments and Apparatuses; medical apparatus and instruments; Civil nuclear energy; Civil aviation; Colleges and universities; Research Institute; Commodity inspection, arbitration and technical supervision departments; Building materials ceramics; Petrochemical industry; Other industries.



Maximum load



Optional within 1T, 10T, 20T, 30T, 40T and 50T



Company



Kgf, gf, N, kn, LB, TON, convertible



Accuracy class



Level 1/0.5



Effective force measuring range



0.2%~100% (level 1)/0.4%~100% (level 0.5)



Force measuring accuracy



Within ± 1% of the indicated value/within ± 0.5% of the indicated value



Resolution of testing machine



The maximum load is 1/200000, the internal and external gears are not divided, and the resolution of the whole process is unchanged



Load cell



Basic configuration: one tension and pressure sensor (maximum load)



Extended configuration: multiple sensors can be added



Effective test width



400mm (can be widened according to customer requirements)



Effectively extrude space



400, 500, 600mm (can be increased according to customer requirements)



Test speed range



0.001～200mm/min



Displacement measurement accuracy



Within ± 0.5% of the indicated value/within ± 0.2% of the indicated value



Deformation measuring system



(Optional according to demand)



Extended configuration: large deformation: minimum gauge length 10mm, deformation range: 800mm



Extended configuration: small deformation: gauge length 25mm, 50mm, 100mm deformation range: 5mm, 10mm, 25mm



Deformation measurement accuracy



Within ± 0.5% of the indicated value (large deformation or small deformation can be selected according to customer requirements)



Overload protection



If the maximum load exceeds 10%, the machine will automatically protect



Fixture configuration



One set of stretching fixture



Host size



one hundred and seven × fifty-six × 210cm (L * W * H)



dynamic system



Servo motor+drive+high-precision ball screw



Power Supply



220V、50HZ、



power



7.5KW (different power motors are equipped as standard according to different force values)



Weight of main engine



(about) 1300 Kg
