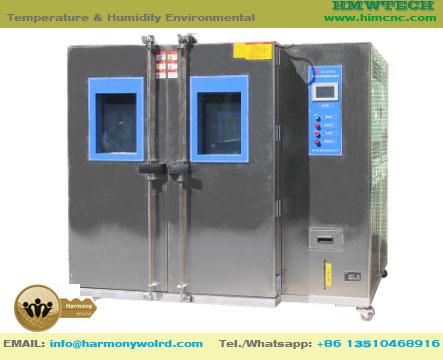

High and low temperature alternating test chamber

Our company is mainly committed to the R&D and production of high and low temperature alternating test box, and is a professional test equipment limited company that combines R&D, production and sales. This machine is specially used to test the heat, cold, dry and wet resistance of various materials. This machine can select Chinese or English LCD to display touch screen, which is easy to operate and program editing. It can display complete data related to system operation status, execution and setting program curve. In case of any abnormal condition during operation, the screen will automatically display the cause of the fault and provide troubleshooting methods.

It is suitable for testing the quality of electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical... and other products.



Meet the test method



GB/T 2423.1-2008 Test A: Low temperature test method



GB/T 2423.2-2008 Test B: High temperature test method



GJB 150.3A-2009 High temperature test



GJB 150.4A-2009 Low temperature test



GB/T2423.2-2008 Test Nb Temperature change test



GB/T2423.3-2008 Constant Damp Heat Test



GB/T2423.4-2008 alternating damp heat test



GJB150.9A-2009 alternating damp heat test



Product manufacturing standard



GB/T10589-2008 Technical Conditions for Low Temperature Test Chamber



GB/T 10586-2006 Technical Conditions for Damp Heat Test Chamber





GB/T11158-2008 Technical Conditions for High Temperature Test Chamber





GB T5170.1-2008 General rules for inspection methods of environmental test equipment for electrical and electronic industry





GB/T5170.2 Verification method of basic parameters





GB-T5170.5-2008 Environmental test equipment for electric and electronic products -- Test methods -- Damp heat test equipment

Internal dimensions



1800 * 800 * 800 W x H x D (mm)



External dimensions



2300 * 1350 * 1700 W x H x D (mm)



temperature range



-40℃~+80℃



Humidity range



Temperature+20 ℃~+85 ℃



20%~98% R.H. (10% - 98% R.H/5%~98% R.H are special selection conditions)



Accuracy of temperature and humidity analysis



±0.1℃； ± 0.1% R.H



Temperature and humidity uniformity



±1.0℃； ± 2.0% R.H



±2.0℃； ± 3.0% R.H



Temperature and humidity fluctuation



≤1℃； ± 2.0% R.H



≤2℃； ± 3.0% R.H



Temperature and humidity control accuracy



±1.0℃； ± 2.0% R.H. (refers to the error between the displayed temperature and the actual temperature)



Heating time



About 2~3.0 ℃/min;



Cooling time



About 1.0 ℃/min (a drop of 5~10 ℃ per minute is a special choice)



Cooling system



Air cooled/single stage compressor (- 30 ℃), air and water cooled/double stage compressor (- 40 ℃~- 70 ℃)
