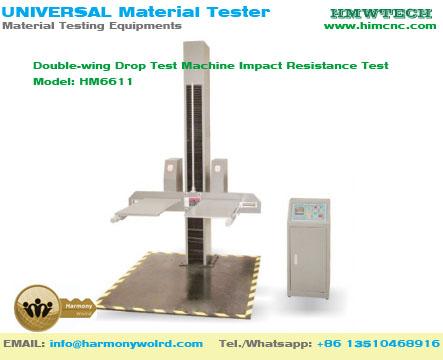

Double-wing Drop Test Machine Impact Resistance Test

Model:	HM6611
Brand:	HarmonyWOLRD/OEM/ODM
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Instrument / Test Bench
Label:	Drop Test Machine , Impact Resistance , TESTING MACHINE
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

Test the impact resistance test when the product is dropped and simulate the actual situation of falling damage during transportation after packaging. The drop point can be set as the diamond, corner or surface of the packing box. It is suitable for the drop impact resistance test of packaging materials, such as cartons, suitcases, and electrical appliances. It is an indispensable and important test machine for manufacturers of electronic products and their accessories and other products that require drop tests. The results of the test can be Ensure the safety of the product during the transportation and the impact of falling.

Standards compliant

ISO2248，JISZ0202-87，GB/T4857.5-92

SPECIFICATION

Allowable specimen weight	About 60kg
Height range	45×1500mm
Test space	60~1080×760×450~1500mm
Horsepower	Adjust the height by 1/4HP, adjust the width by 60W
Machine size	227×142×220 cm ( W × D ×H )。
Control box size	27×27×115cm
Using electric	1∮,AC220V, 3A
Machine weight	300㎏。
