Model: | - |
---|---|
Brand: | - |
Origin: | Made In China |
Category: | Industrial Supplies / Rubber & Plastics Machine |
Label: | - |
Price: |
-
|
Min. Order: | 1 pc |

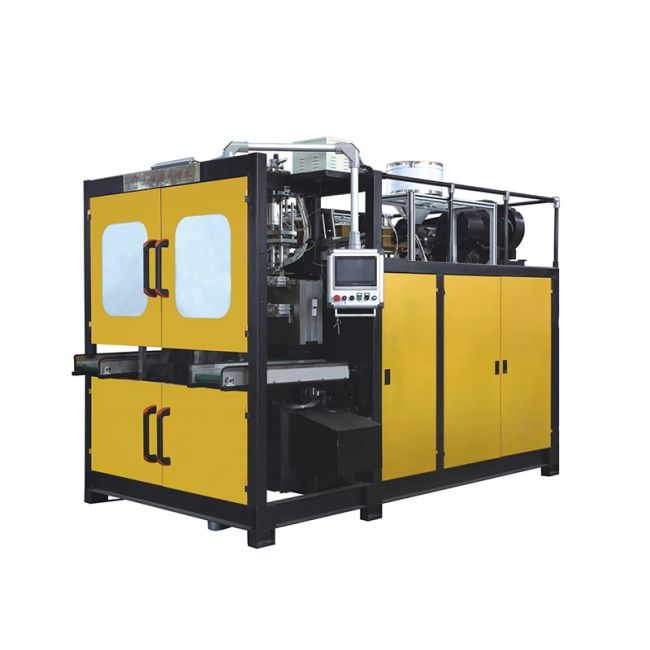

Plastic Extrusion Fully Automatic Electric Blow Molding Machine
Frequency conversion motor, hardened gear reducer and high-quality nitrogen cylinder screw step less speed regulation, high efficiency and energy saving, stable output.
The company's main products include blow molding machines, blowers, suction molding machines, and other intelligent equipment, which are widely used in food, beverage, daily chemical, pharmaceutical, and other industries. Youli has always adhered to the spirit of excellence in production and manufacturing, and through continuous improvement of product quality and production efficiency, it provides customers with high-quality products and excellent technical services.
Fully Automatic Moulding Machine Specifications
Name |
Unit |
YL-5L |
Max.product volume |
ML |
3 |
Dry cycle |
PC/H |
400 |
Number of mold head |
|
1-4 |
Screw diameter |
MM |
60 |
Screw L/D ratio |
L/D |
25 |
Screw drive power |
KW |
11 |
Screw heating capacity |
KW |
10 |
No. of heating zone |
ZONE |
3-5 |
Output of HDPE |
KG/H |
65 |
Servo motor power |
KW |
9 |
Clamping force |
KN |
150 |
Name |
Unit |
YL-3ML |
Max. size of mold |
MM |
280X350 |
Template size |
MM |
260X350 |
Mold stroke |
MM |
140-240 |
Max. die diameter |
MM |
20 |
Blowing pressure |
MPA |
0.6 |
Air volume |
m3/MIN |
0.4 |
Cooling water pressure |
MPA |
0.3 |
Water consumption |
L/MIN |
30 |
Size of machine |
LxWxH |
3.4X1.8X2.2 |
Weight of machine |
TON |
5 |
Are you searching for a state-of-the-art, high-performance machine to elevate your bottle manufacturing process? Look no further than the YOULI 3ML Plastic Extrusion Fully Automatic Electric Blow Molding Machine. With its advanced features and cutting-edge technology, this fully automatic electric blow molding machine is designed to deliver exceptional results and streamline your production with ease.
