Plastic Extrusion Automatic Blow Molding Machine

Plastic Extrusion Automatic Blow Molding Machine
Model:-
Brand:-
Origin:Made In China
Category:Industrial Supplies / Rubber & Plastics Machine
Label: -
Price: -
Min. Order:1 pc
Inquire Now

Product Description

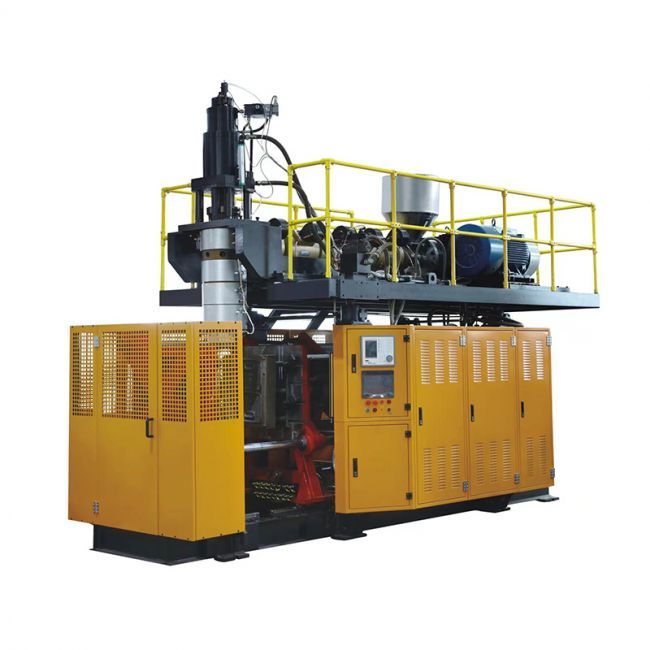

Plastic Extrusion Automatic Blow Molding Machine

Designed for optimal performance, our Automatic Bottle Blowing Machine is built with advanced features to streamline your production process. With its fully automated operation, you can effortlessly produce high-quality bottles with consistent shapes and sizes, meeting the demands of various industries.



Featuring a robust extrusion system, this 25 Litre Blow Moulding Machine ensures the precise control of the plastic material, allowing for smooth and seamless bottle formation. The extrusion process guarantees uniform wall thickness and excellent strength, resulting in durable and reliable bottles that exceed industry standards.



Our Automa Blow Molding Machine offers versatility, accommodating bottles with a capacity of up to 25 liters. Whether you require bottles for beverages, household chemicals, or industrial applications, this machine can effortlessly handle your diverse production requirements

Automa Blow Molding Machine Specification

Name

Unit

YL-25L

Max.product volume

L

25

Dry cycle

PC/H

80

Screw diameter

MM

100

Screw L/D ratio

L/D

28

Screw drive power

KW

45

Screw heating capacity

KW

22

No. of heating zone

ZONE

5

Output of HDPE

KG/H

150

Oil pump drive power

KW

22

Clamping force

KN

160



Name

Unit

YL-25L

Max. size of mold

MM

590X630

Template size

MM

600X640

Mold stroke

MM

330-690

Max. die diameter

MM

300

Blowing pressure

MPA

0.8

Air volume

m3/MIN

0.8

Cooling water pressure

MPA

0.3

Water consumption

L/MIN

80

Size of machine

LxWxH

5.6X3.0X2.8

Weight of machine

TON

15

Equipped with advanced control systems, the Automatic Bottle Blowing Machine offers intuitive programming and monitoring capabilities. You can easily adjust parameters such as temperature, pressure, and cycle time to optimize the production process, ensuring consistent quality and efficiency.



In addition to its exceptional performance, our 25L Plastic Extrusion Automatic Blow Molding Machine prioritizes safety and durability. Built with high-quality materials and advanced safety features, this automatic bottle blowing machine guarantees a reliable and secure production environment, protecting both operators and the equipment itself.



Investing in our Automa Blow Molding Machine means gaining a competitive edge in the market. Its high-speed production capabilities, coupled with its superior quality output, will enhance your productivity, reduce costs, and ultimately increase customer satisfaction.



Choose our 25L Plastic Extrusion Automatic Blow Molding Machine and experience the future of bottle production. With its advanced automation, precise control, and unmatched reliability, it's the ideal solution for businesses looking to elevate their manufacturing process to new heights. Revolutionize your production line today with this automated blow molding machine and stay ahead in the industry.
