XHL-XG Rotary Cap Turning Machine Series

XHL-XG Rotary Cap Turning Machine Series
Model:XHL-XG
Brand:xinhuili
Origin:Made In China
Category:Industrial Supplies / Pharmaceutic Machine
Label:XHL-XG , XHL-XG/8
Price: US $40000 / pc
Min. Order:1 pc

Product Description

XHL-XG Rotary Cap Turning Machine Series

1 Overview

The rotary cap turning machine adopts pneumatic gripper type cap turning head with automatic cap grabbing and adjustable torque. It has such features as stable capping and high cap turning pass rate. It adopts the rotary table continuous bottle moving mode. The machine can be used singly or for linked production. It is suitable for various industries such as medicine, food, agrochemical industry, daily chemical industry, etc.



2 Features

-The cap turning head is automatically opened and closed to vertically grab the cap and turn the cap, featured by stable and reliable capping, no oblique cap, adjustable torque and high pass rate.

-Continuous bottle moving, spiral conveyor for bottle feeding, no bottle blocking or bottle falling.

-The rotary running mechanism has higher efficiency. With the centralized lubrication system, its running is right, stable and reliable.

-PLC control system, no outer cap feeding in case of no bottle, protection system for adjacent machines, variable frequency speed control.

-It is equipped with cap storage and lifting mechanism. There are diversified cap unscrambling forms.

-It is provided with the function of identifying reverse caps and eliminating nonconforming products.

-Replacement of parts is simple and easy to operate.



3 Main Technical Parameters

product model

XHL-XG/4

XHL-XG/6

XHL-XG/8

XHL-XG/12

XHL-XG/16

XHL-XG/20

XHL-XG/24

Number of cap turning heads

4

6

8

12

16

20

24

Applicable bottle diameter

Φ15-Φ130mm

Applicable cap specifications

Φ12-Φ70mm

Cap turing production capacity

(bottles/min)

(100ml as an example)

60-80

80-100

100-130

130-160

180-220

300-350

400-450

pass rate

≥99.8%

Power supply

220V/380v 50/60Hz

Power

≤2Kw

Compressed air pressure

0.4-0.6Mpa

Speed control

Variable frequency speed control

Single machine noise

≤70dB

Weight

≈1000kg

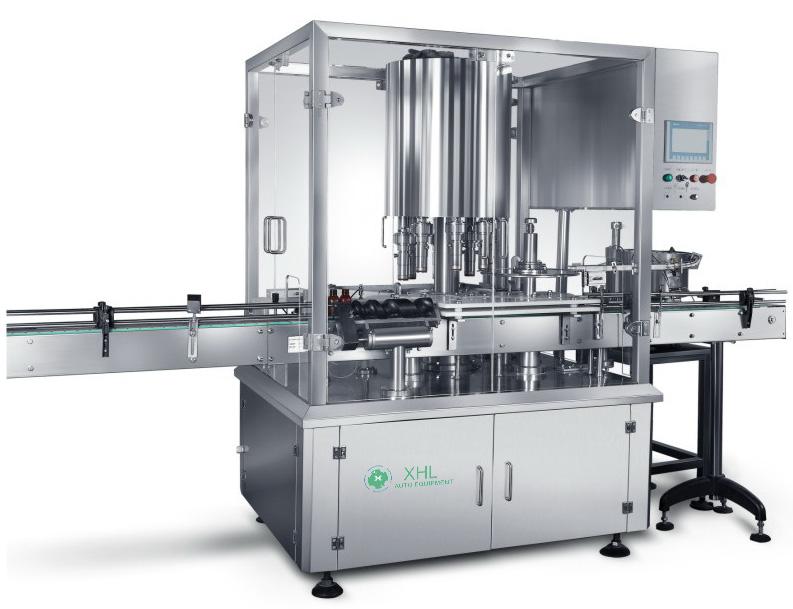

XHL-XG/8 Cap turning machine:
