Product Introduction

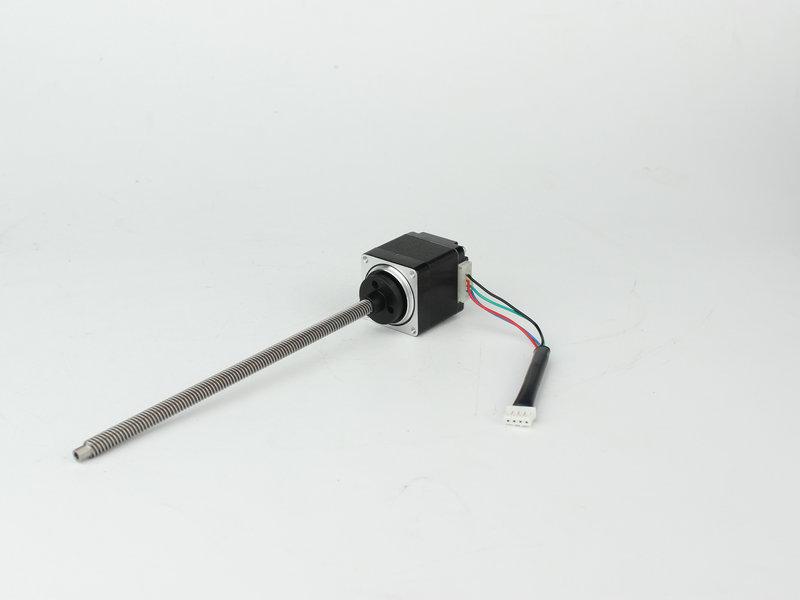

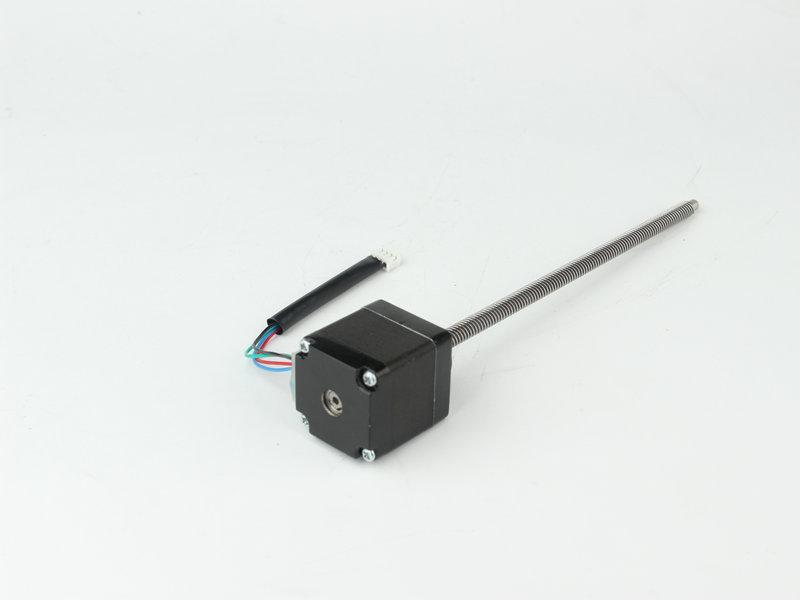

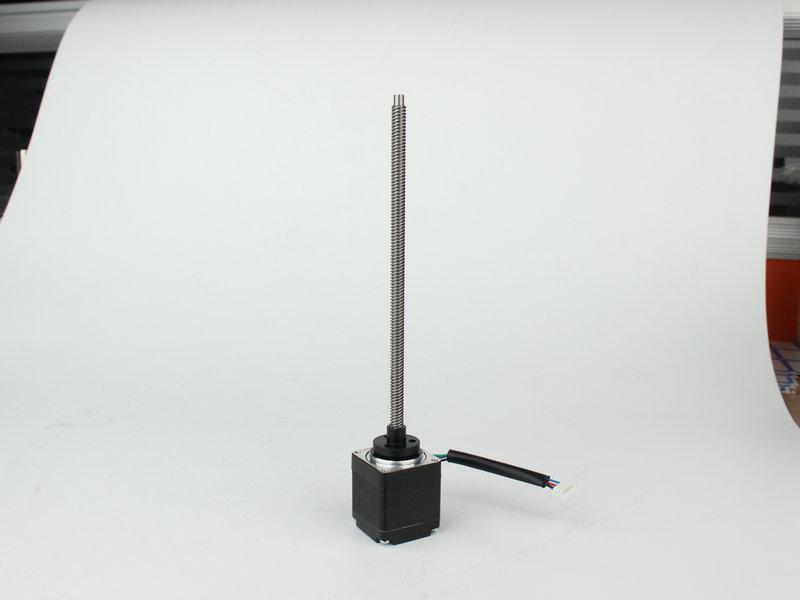

The 1.8 Degree 28mm 2 Phase Linear Stepper Motor is an advanced device designed to provide precise linear motion. It combines the benefits of a small form factor with high - precision movement capabilities.

Key Specifications

1. Step Angle: With a step angle of 1.8 degrees, this motor offers remarkable precision in linear displacement. In applications such as precision positioning in micro - manufacturing or high - accuracy scanning systems, the small step angle allows for extremely fine and controlled movements.
2. Motor Size: The 28mm dimension makes it a highly compact motor. This compactness is ideal for applications where space is limited, like in small - scale laboratory equipment or miniature assembly lines. It can be easily integrated into tight spaces without sacrificing performance.
3. Phase Configuration: The 2 - phase design ensures stable and efficient operation. It provides a good balance between generating the necessary force for linear motion and allowing for accurate control. This design simplifies the control mechanism compared to more complex phase configurations, making it more accessible for various applications.

Performance Characteristics

1. High - Precision Linear Motion: The motor is engineered to deliver precise linear movements. It can accurately position objects or tools along a straight path with minimal errors. In automated inspection systems for small electronic components, for example, the motor can precisely move the inspection probes to detect defects with high accuracy.
2. Compact and Lightweight: Its small size and light weight make it suitable for applications that require mobility or where the overall weight of the equipment needs to be minimized. In portable medical devices or handheld measuring tools, the motor's compact nature is a significant advantage.
3. Smooth Operation: It operates smoothly, minimizing vibrations during linear motion. In optical alignment systems, where any vibration can affect the accuracy of the alignment, the smooth operation of the motor ensures reliable and precise results.
4. Good Force Output: Despite its small size, the motor can generate sufficient force to move loads in linear applications. In small conveyor systems for handling delicate items, the motor can provide the necessary force to transport the objects along the linear path.

Applications

1. Micro - Manufacturing: In micro - manufacturing processes, such as the production of micro - mechanical parts or the assembly of small electronic components, the motor's precision linear motion is crucial for accurate positioning of tools and workpieces.
2. Medical Devices: It is used in various medical devices, like in the linear movement of syringe plungers in automated drug delivery systems or the precise positioning of surgical instruments in minimally invasive procedures.
3. Optical and Inspection Equipment: In optical systems for lens alignment or in inspection equipment for detecting flaws in small - scale products, the motor's ability to provide accurate linear motion ensures the quality of the operation.
4. Automated Assembly Lines: In small - scale automated assembly lines for products such as jewelry or small mechanical assemblies, the motor's compact size and precise linear movement help in accurately placing components during the assembly process.
