power glaze wire wound resistor

Model:	RX20（8W-500W)
Brand:	BTVOP
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Components / Resistor
Label:	Wirewound resistor , power resistor , resistor
Price:	US $3 / pc
Min. Order:	10 pc

Inquire Now

Product Description

RX20 Power glaze coated wire wound resistor China(8W,10W,20W,30W,50W,75W,100W,120W,150W,200W,300W,500W,800W,1000W,1200W,1500W,2000W)

IN: RX20 Power glaze coated wire wound resistor China, dynamic brake resistor,motor start resistor,sulstitution resistor,

power supply resistor ;rated power 8W,10W,20W,30W,50W,75W,100W,120W,150W,200W,300W,500W,800W,1000W,1200W,1500W,2000W

Features and Purposes
○Wide range of power application
○Glazed resistor surface providing corrosion and heat resistance, adaptable to inclement environment
○Moisture resistant, high insulation level, high overload capability, good thermal stability, long service life
○Type T are adjustable resistors for adjusting the resistor resistance
○Power test, circuit load, inverting, hoisting, power, ship, industrial automation systems and other electromechanical applications

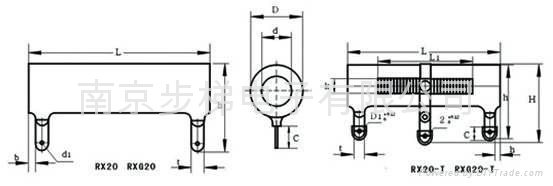

Overall Dimensions

Model	Rated power (W)	Overall dimensions(mm)											Weight(g)
Model	Rated power (W)	L	D	d	H	h	L1	K	b	t	d1	c	Fixed	Adjustable
RX20	8W	35	14	5.5	-	28.5	-	-	3.5±0.8	4.5	2	8±1.5	23	-
	10W	41	14	5.5	31	28.5	20	6±2					27	34
	15W	45	17	8	34	31	23						36	42
	20W	51	17	8	34	31	30						44	52
	25W	51	21	12	39	35	30						57	67
	30W	71	21	12	39	35	44						80	90
	40W	87	21	12	39	35	57						98	110
	50W	91	29	20	47	43	60	7±2	4.5±1	6	2.5		132	144
	75W	140	29	20	47	43	110						253	265
	100W	170	29	20	47	43	140						286	298
	150W	215	29	20	47	43	185						385	397
	200W	215	38	25	60.5	58	160	7±2	8±1	9	4	11±1.5	475	495
	200/250W	266	30	16	50	47	210	7±2					510	530
	300W	266	36	20	58	58	210	8±2					630	650
	400W	250	54	30	76.5	79	180	10±2					1000	1020
	500W	300	54	30	76.5	79	230	10±2		16	8	17±1.5	1340	1360

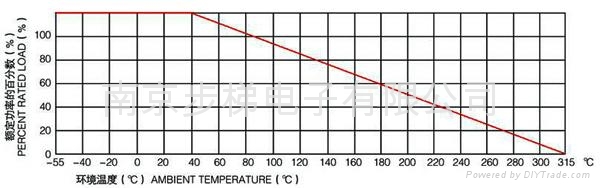

Key Performance Parameters

Model	Rated power(W)	Resistance range(Ω)		Admissible resistance deviation (%)	Temperature coefficient (×10-6 /℃)
Model	Rated power(W)	Fixed	Adjustable(T)	Admissible resistance deviation (%)	Temperature coefficient (×10-6 /℃)
RX20	8W	5.1~3.3K	-	±1 ±5 ±10	±250
	10W	5.1~10K	5.1~200
	15W	5.1~15K	5.1~220
	20W	5.1~20K	5.1~430
	25W	10~24K	10~510
	30W	10~30K	10~1K
	40W	20~51K	20~1.2K
	50W	20~51K	20~1.5K
	75W	20~56K	20~2K
	100W	24~62K	24~2.7K
	150W	20~150K	20~4.3K
	200W	4.7~12K	5.1~3K
	200/250W	4.7~12K	5.1~3K
	300W	4.7~12K	5.1~3K
	400W	5.1~10K	6.2~3K
	500W	5.1~10K	6.2~3K
