RX70 Precision wire wound resistor

RX70 Precision wire wound resistor
Model:RX70(0.25W-3W)
Brand:BTVOP
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Resistor
Label:Precision resistor , wirewound resistor , resistor China
Price: US $1.5 / pc
Min. Order:10 pc

Product Description

RX70 Precision wire wound resistor China(0.25W,1/4W,0.5W,1/2W,0.75W, 1W,2W, 3W)



IN: RX70 Precision wire wound resistor China,precision resistor China,rated power:0.25W,1/4W,0.5W,1/2W,0.75W, 1W,2W, 3W;

tolerance 0.01%,0.02%,0.05%,0.1%,0.5%; Temperature coefficient(10-6 /):5ppm,10ppm,15ppm,20ppm,25ppm



Features and Purposes
○Good insulation and moisture performance.
○High resistance accuracy, small temperature coefficient.
○Used mostly in modern high-tech products, precision instrumentation, measuring appliances, medical apparatuses, automobile electronics, detection technology, space technology and other applications.

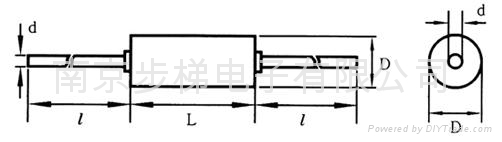

Overall Dimensions

Power type Rated power at 70℃(W) Size(mm)
Lmax Dmax l±5 d±0.05
RX70 0.25W 15.5 8 25 0.8
0.5W 21 12
0.75W 27 12
1W 27.5 15
2W 38 18
3W 56 24


Key Performance Parameters

Power type Rated power at 70℃(W) Resistance range(Ω) Admissible resistance deviation(%) Temperature coefficient
(10-6 /℃)
Max working voltage
(V)
Element insulation voltage
(V)
RX70 0.25W 1~500K ±0.01
±0.02
±0.05
±0.1
±0.2
±0.5
±1~±25 300 350
0.5W 1~1M 500 700
0.75W 1~2M
1W 1~3M 1000 1400
2W 1~5M
3W 1~10M



RX70 Precision wire wound resistor 1RX70 Precision wire wound resistor 2RX70 Precision wire wound resistor 3
