Oblique arm high quality Screen printing Machine

Model:	S-JY80120PV
Brand:	KC
Origin:	Made In China
Category:	Industrial Supplies / Packaging Related Machine
Label:	screen printer , silk printing Machin , silk printer
Price:	US $5758 / pic
Min. Order:	1 pic

Inquire Now

Product Description

UV ice flower

• It is a unique effect formed by UV screen printing cold stamping technology. It does not require high-temperature heating, has fast stamping speed and low cost. The principle is that after UV screen printing ink is exposed to ultraviolet rays, the photochemical polymerization cross-linking reaction makes the ink layer solidify and shrink in volume asynchronously and unevenly, and the oxygen inhibition side reaction forms a fragmented effect similar to the ice surface being knocked, generating cracks and ice silk, and finally the surface solidifies to form a crystal clear, three-dimensional ice flower texture, which is widely used in high-end packaging and other fields, and can enhance the added value of products.

UV hammer pattern

• It can give objects an effect similar to metal hammering patterns, with uneven surface color, but good paint film flatness. For example, the use of a concave and convex hammer pattern process on a stainless steel thermos cup, combined with imported ink UV printing, can make its appearance more elegant and fashionable, with delicate texture and glossy.

UV glitter

• Glitter powder is a material with a glittering effect, commonly used in nail art, makeup, crafts and other fields, such as PET colored glitter powder can be used for seam beautifiers, crafts, etc. In the printing of color packaging boxes, the use of UV glitter can make the packaging more attractive and decorative.

UV glue

• Adding photoinitiators to specially formulated resins, after irradiation by ultraviolet light curing equipment, produces active free radicals or ion radicals, triggering polymerization, cross-linking and grafting reactions, so that the resin is converted from liquid to solid in seconds. It has the advantages of no VOC volatiles, few ingredients restricted or prohibited by environmental regulations, no solvents, low flammability, and no whitening. It can be used for handicraft bonding, glass product bonding, and electronic and electrical industry parts bonding.

Color packaging box oblique arm screen printer

• It is a device commonly used in color packaging box printing. Its oblique arm structure can adapt to packaging boxes of different sizes and shapes, and is flexible to operate. Through screen printing technology, special effect inks or materials such as UV ice flowers, UV hammer patterns, and UV glitter can be accurately printed on the surface of the packaging box to achieve various exquisite patterns and decorative effects, meet the packaging needs of different products, and enhance the market competitiveness of products.

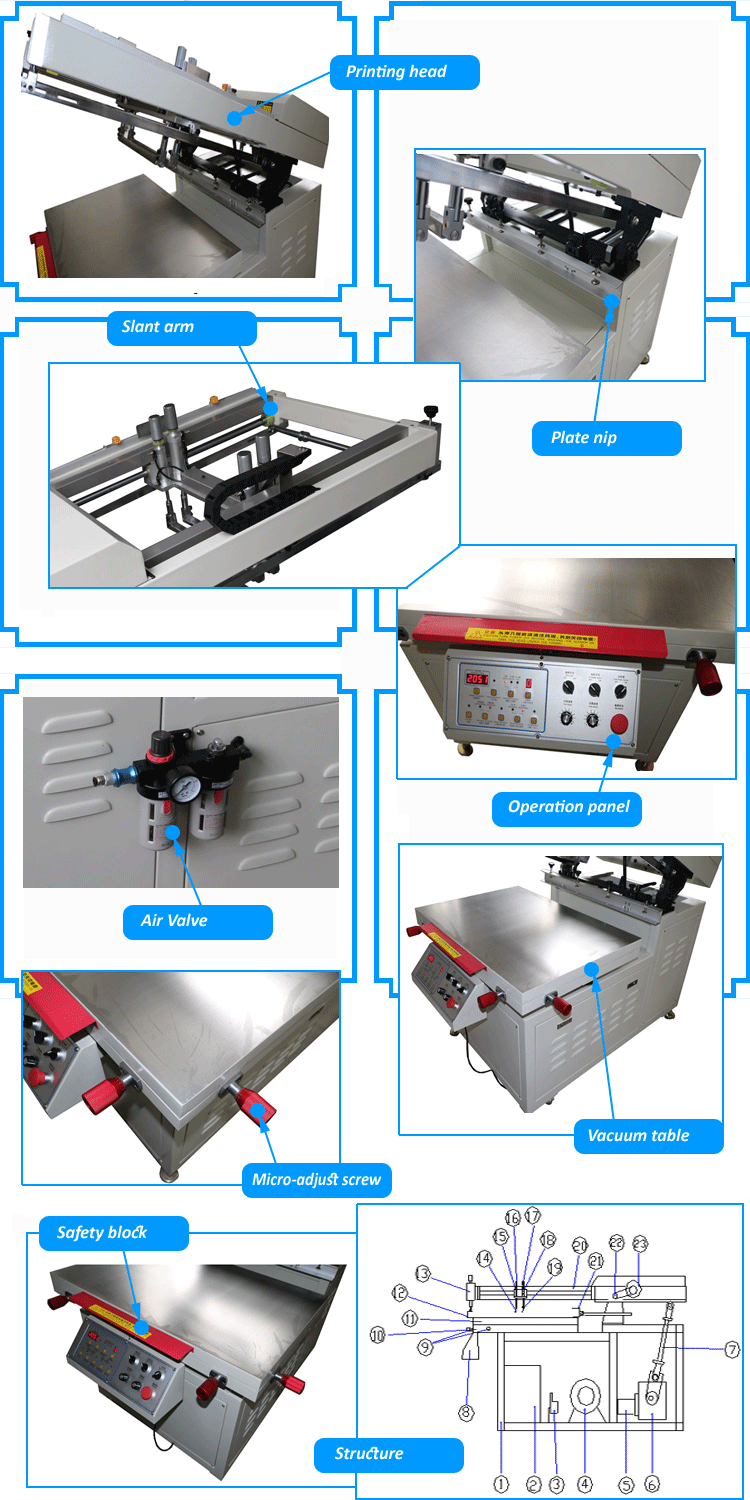

Slant-arm screen printing machine //Structure
Pre-treatment	Automatically absorb.
Working table	Vacuum working table -950*1300mm
Actions	Screen plate rise and drop with Swing
Squeegee stroke	Adjust the cam and connecting rod
Squeegee control	Guide shaft
Ink drying	Natural drying or with UV Machine. Drying rack
Slant-arm screen printing machine//Usage and characters
Guide	Fit printing soft and thin products such as paper, plastics film etc.; With vacuum working table ensure adsorbing object when printing; Working table keep stillness but screen frame moving along slant angle make the printing speed higher ; Also widely used in Glass Plate, Machine panel screen printing; With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ; Suitable for printing sheet-fed adhesive sticker Suitable for printing water transfer label and heat transfer label through different process. Max Printing area: 800*1200mm. Rubber Squeegee movement driven by Taiwan frequency conversion controlling system . widely used to print circuit aboard , Film switch panel etc. industrial High technology field.
Application	Paper package, Film printing, UV Process, furniture industry, glass industry, circuit board industry, electronic parts, auto parts, Machine panel UV Scrub ，heat transfer film
Slant-arm screen printing Machine//Parameters
Technical parameters	S-JY80120PV	S-JY90140PV
	1.Max printing thickness：0-40 MM; 2.Power Pressure：4－6kgf/cm2; 3.Net weight： 700KG; 4.Max printing area：800×1200MM; 6.Max printing speed：1000Pcs/H. 7.Max screen frame size: 1100×1500mm; 7. Table adjustment Longitude: +-0.1mm; 8. Working table size: 950×1300mm.	1.Max printing thickness：0-40 MM; 2.Power Pressure：4－6kgf/cm2; 3.Net weight： 700KG; 4.Max printing area：900×1400MM; 6.Max printing speed：1000Pcs/H. 7.Max screen frame size: 1200×1700mm; 7. Table adjustment Longitude: +-0.1mm; 8. Working table size: 1050×1500mm
Factory	110V-220V Power supply； 5-7Barcompress air；
Package parameters	Gross weight: 465kg Wooden case dimension:1.85×1.38×1.45m CBM: 3.7018
H.S.CODE	8443198000
Certifice	CE
Slant-arm screen printing Machine//Advantage
Function	Designed with its structure equipped with both power-driven and air-powered devices; The printing operation and lifting transmission are under the control of the imported variable automatic system, and the complete machine is characterized by uniformity of operation. Its printing plate is cast with aluminum alloy ,Stainless steel sheet of 2mm in thickness is adhered to the surface of the printing plate, and the printing plate may be smooth, even, and free from distortion; In addition, it is provided with coordinate vernier device and automatic air-intake function, ensuring still more easy and accurate printing plate alignment. Slide rail adopts linear guide rail made in Germany, Free of attrition wear. Transmission gear is equipped with imported timing belt and it is characterized by free actuation and adjustable speed. Pressure of squeegee blade and in returning blade are adjustable and may be separately manipulated, and adjustment up to 45 degrees is allowed as well It is equipped with safe bounce-back function, ensuring safety in operation it is also provided with automatic synchronous screen-departure function , and this may avoid the scumming of printed materials effectively. All components of the electrical section are from noted brands, its panel is fitted with electronic touch keys. the complete machine is coated with static pyrolytic coating, with esthetic appearance , good taste, and solvent resistance.

Application:	The flat screen printing machine in which the screen is opened and closed at a certain angle and contacts the worktable is called an inclined arm screen printing machine. The screen clamping mechanism is installed on a cam rotating shaft, and the printing is completed by periodically leaving and contacting the worktable, and the printing speed is faster. , Compared with the screen printing machine with vertical lifting and lowering of the screen, the precision of the inclined arm type screen printing machine is lower. Another feature of the inclined arm type screen printing machine is that the scraper and the ink return knife move in the front and rear directions. The inclined arm type screen printing machine is especially suitable for occasions with large quantity, single product, and low precision requirements, such as: sublimation paper, partial UV, carton packaging, thermal transfer film, etc.

Application:

The flat screen printing machine in which the screen is opened and closed at a certain angle and contacts the worktable is called an inclined arm screen printing machine. The screen clamping mechanism is installed on a cam rotating shaft, and the printing is completed by periodically leaving and contacting the worktable, and the printing speed is faster. , Compared with the screen printing machine with vertical lifting and lowering of the screen, the precision of the inclined arm type screen printing machine is lower. Another feature of the inclined arm type screen printing machine is that the scraper and the ink return knife move in the front and rear directions. The inclined arm type screen printing machine is especially suitable for occasions with large quantity, single product, and low precision requirements, such as: sublimation paper, partial UV, carton packaging, thermal transfer film, etc.
