Product Description

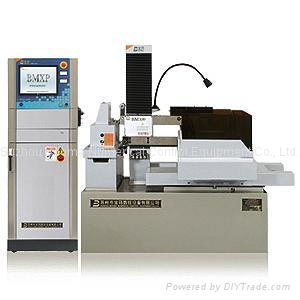

Closed-loop Wire Cut EDM BM500


 MACHINE MODEL

    ITEM B D F H

    Max. Cutting Thickness(mm) 300 500 300 400

    Max. Cuttting Taper(<=100mm thick) 0 0 ±3° ±3°


 SPECIFICATIONS

    PARAMETERS BM500B BM500D BM500F BM500H
    Table Travel (mm) 400 x 500
    Table Size (mm) 600 x 900
    Roughness   Once Cutting (um) <= 2.5
  Multi-Cutting (um) <=1.2
    Precision   Octagon (mm) <= 0.012 <= 0.012 <= 0.012 <= 0.012
  Taper (mm)   <= 0.04  <= 0.1  <= 0.04
    Screw and guide way High Quality Ball Screw  ;  Steel Linear guideway
    Load of Table (Kg) 500
    Machine Weight (Kg) 2000


 UNIVERSAL PARAMETERS

n  Max. Cutting Speed 150 mm2/Min.
n  Wire Speed 5 - 11 m/Min
n  Max. working Current 6 A
n  Wire Diameter Dia. 0.15-0.2mm
n  Work Solution BM2/BM4 Water Base Working solution
n  Water Tank 56 L
n  Rated Voltage AC~,3N, 220-415V,50/60HZ
n  Ratde Power 3 KVA
n  Wire Guide Frame Adjustable
n  Controller BMW-3000

Price Terms:FOB Shanghai
Payment Terms:TT/LC
Packing:3 plywood case/unit
Lead Time:25days
Standards Certificate:CE; ISO9001; IS014001; GB7629-87
Control System:Controller: BMW3000
Software: BMXP
Platform: Windows + AutoCAD
