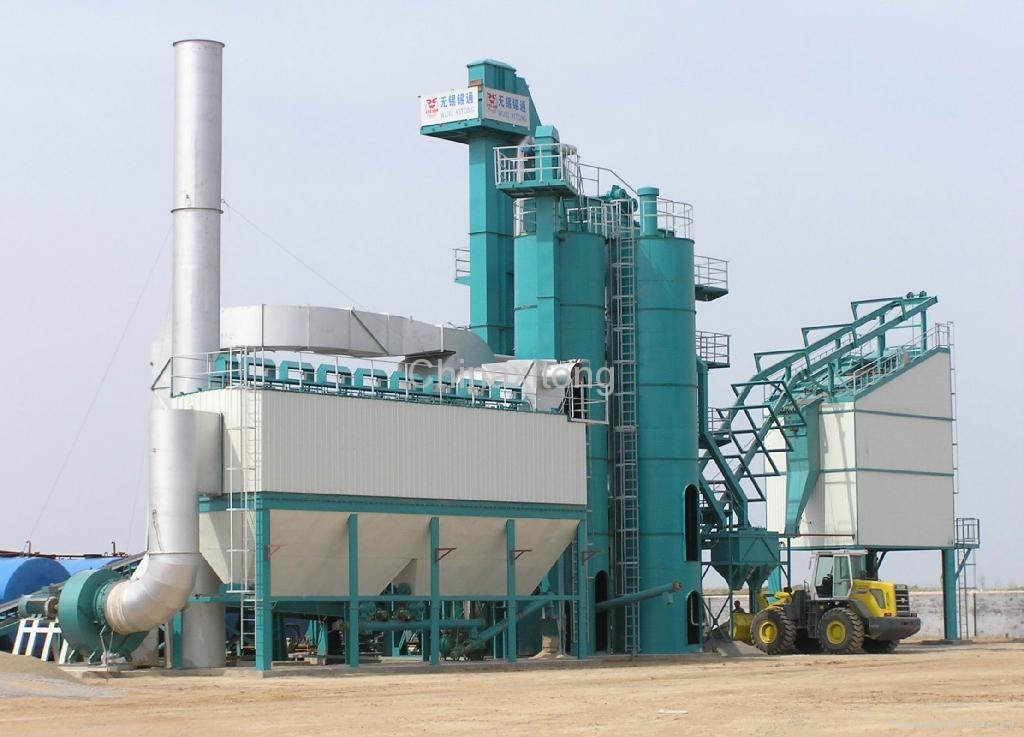

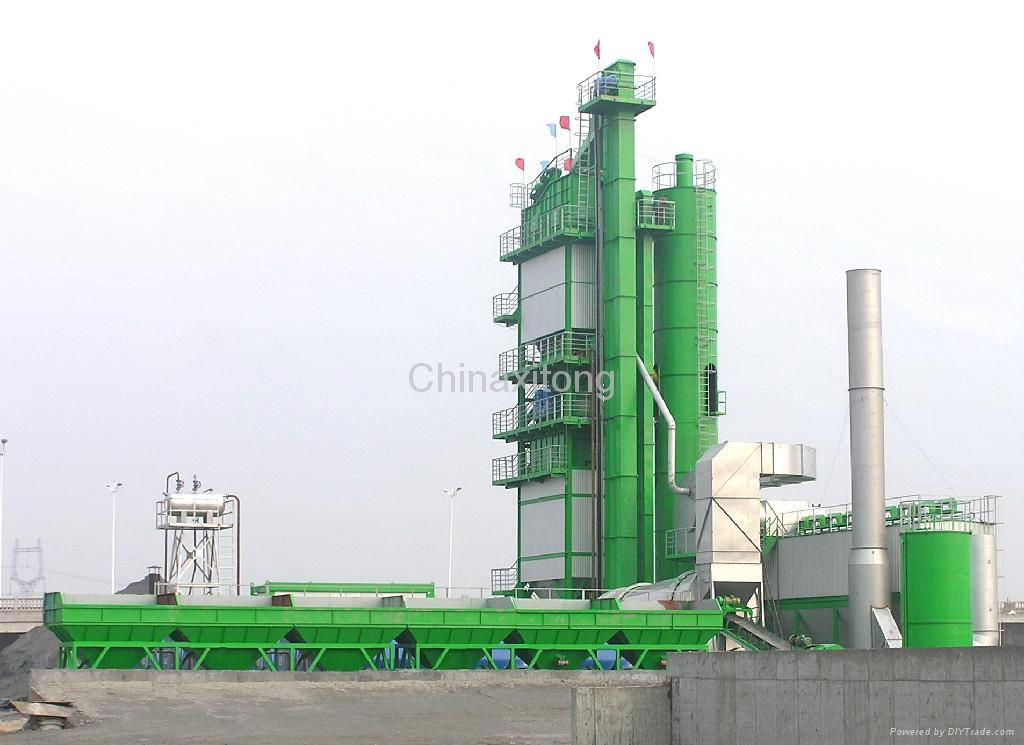

Asphalt Mixing Plant (QLB-3000)

Model:	QLB-3000
Brand:	Chinaxitong
Origin:	Made In China
Category:	Industrial Supplies / Construction Machine
Label:	Asphalt mixing plant , Bitumen mixer , Road machinery
Price:	-
Min. Order:	1 set

Product Description

QLB Series Asphalt Mixing Plant Data Form

Name	Specification
Model QLB(standard)	QLB-600	QLB-1000	QLB-1500	QLB-2000		QLB-2500	QLB-3000	QLB-4000	QLB-5000
Rated productivity	48t/h	80t/h	120t/h	160t/h		200t/h	240t/h	320t/h	400t/h
Volume/number of cold bin	8m3/3	9m3/4	10m3/4	10m3/5		12 m3/5	12m3/5	16m3/6	16m3/6
Dust collect type	Air back flush/wet dust collect					Air buck flush
Dust collect result	No more than 30mg/Nm3 Ringe-Imann grade 1
Fuel	Diesel/heavy oil/coal powder							Diesel/heavy oil
Volume/number of hot bin	12t/4	32t/4 or 5	40t/4 or 5	50t/5		60t/5	80t/5	95t/6
Precision of aggregate metering	Less than ±1.5%			Less than ±1.0%				Less than ±0.5%
Precision of powder metering	Less than ±1.5%			Less than ±1.0%
Precision of asphalt metering	Less than ±0.5%
Mixer ability KG/batch	600	1000	1500	2000		2000	2000	2000	5000
Volume/number of asphalt tank	10m3/2	16m3/2	30m3/2	50m3/2		50m3/2	50 m3/3	50 m3/4	50 m3/5
Volume of finished product bin(T)	-	60	100	120			160	220
Total power(KW)	185	248	345	470	608		680	900	980
Control system	Full auto computer control(PLC+LED+mouse)
