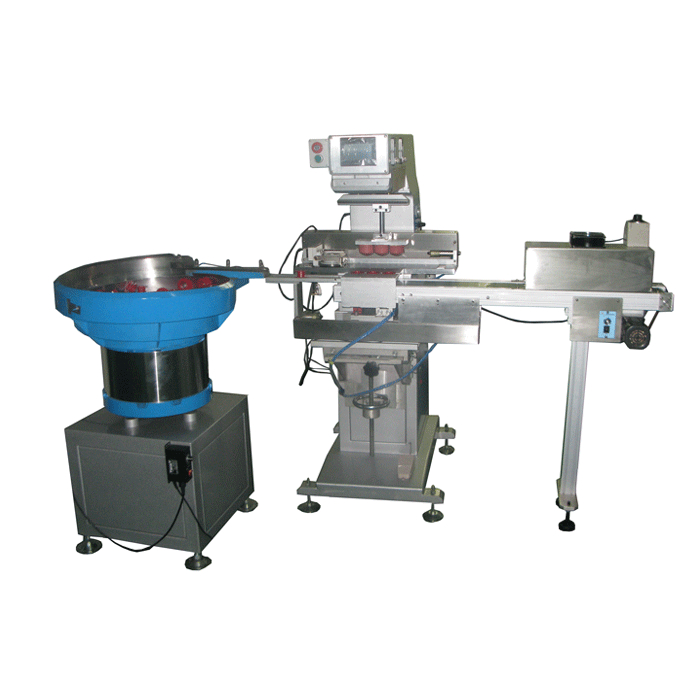

Automatically one color pad printer

Model:	P1-420AC3
Brand:	KC
Origin:	Made In China
Category:	Industrial Supplies / Plate Making & Printing Machine
Label:	pad printer , pad printing machine , pad print
Price:	US $9500 / pic
Min. Order:	1 pic

Inquire Now

Product Description

Feeding device	Vibrating plate, customized feeding system
Direction identification	Automatically
Surface treatment	Flame treatment
Working table	Clamping type working table
Actions	Automatically transport to printing position
Ink supply system	Closed cup device
Plate size:	100*500mm
Ink drying device	IR Dying system
Discharging	Conveyor

Automatically one colour pad printer //Usage and characters
Guide	Suitable for pad printing in a variety of diameters 100mm below plastic parts. Large quantities of irregular small plastic accessories specially designed automatic pad printing machines, widely used in high-speed pad printing and beverage industry, cosmetics industry, electronics, stationery, jewelry, household appliances and other industries. Using aluminum airframe manufacturing, running precise; solenoid valves and cylinders from Germany and Taiwan products, life is more durable Closed ink supply, more convenient shaker automatic feeding device, smooth operation, overlay precision. With a special flame treatment device, for use PP PE material cap, it can significantly improve the adhesion of the ink can be printed 3-6 with a mold specifications of plastic parts, printing efficiency is improved. Standard configuration to use fast-drying solvent-based inks, modeled install IR ink curing device, high ink drying efficiency.
Application fields	Electronics, hardware, auto parts, toys, gifts, plastic products, household appliances, artwork, stationery, ornaments, cosmetics, daily necessities, sports equipment, lighting, wood products, office supplies, photographic equipment, kitchen utensils, hotel supplies, computers, mobile phone accessories, and other industrial fields.
Full automatically One color pad printing Machine//Parameter
Technical parameters	Max. plate size: 100×500 mm； Max. worktable area: 125x400mm； Max. printing area:85×400mm； Max. printing speed: 3000pcs/hr； Printable colour :1； closed up diameter: 90mm. IR Wattage: 2000W.
Works supply	Power： 3 phase 380V； 5-7Bar Compress air .
Package list	Package dimension: 2480×2230×1580mm Weight: 785kg CBM: 8.7381
H.S.Code	8443198000
Certificate	CE
full automatically One color pad printing machine//Advantage
Function	Customized according to user requirements on the shaker feeding system LCD screen technique Built-digit auto counter High-strength aluminum alloy fuselage structure. Environmental cup ink supply system to ensure environmental clean it. Automatic transmission positioning device to ensure accurate printing of displacement; IR curing means instantaneous drying ink. A multi-mode digital printing methods, improving productivity. Brand pneumatic components, ensure that the printing machine can change and stability.

Application:	For the printing of plastic products with dimensions below 100mm in diameter, we prefer to use pad printers, because pad printers are suitable for small-sized products. The printing on the side of the wheel shaft of the waterproof tape uses a pad printer to just play the characteristics of the pad printer. The wonderful application of the automated pad printer on the waterproof tape wheel shaft shows that the pad printer will become faster and more precise. Such a pad printer contains the following main structures: 1) Feeding device; 2) Positioning device; 3) Monochrome pad printing system; 4) Drying device. Some customers with higher requirements may consider surface treatment devices, glue head cleaning devices, servo systems, and PLC systems, which will further improve the operating performance and stability of the machine.

Application:

For the printing of plastic products with dimensions below 100mm in diameter, we prefer to use pad printers, because pad printers are suitable for small-sized products. The printing on the side of the wheel shaft of the waterproof tape uses a pad printer to just play the characteristics of the pad printer.
The wonderful application of the automated pad printer on the waterproof tape wheel shaft shows that the pad printer will become faster and more precise. Such a pad printer contains the following main structures:
1) Feeding device;
2) Positioning device;
3) Monochrome pad printing system;
4) Drying device.
Some customers with higher requirements may consider surface treatment devices, glue head cleaning devices, servo systems, and PLC systems, which will further improve the operating performance and stability of the machine.
