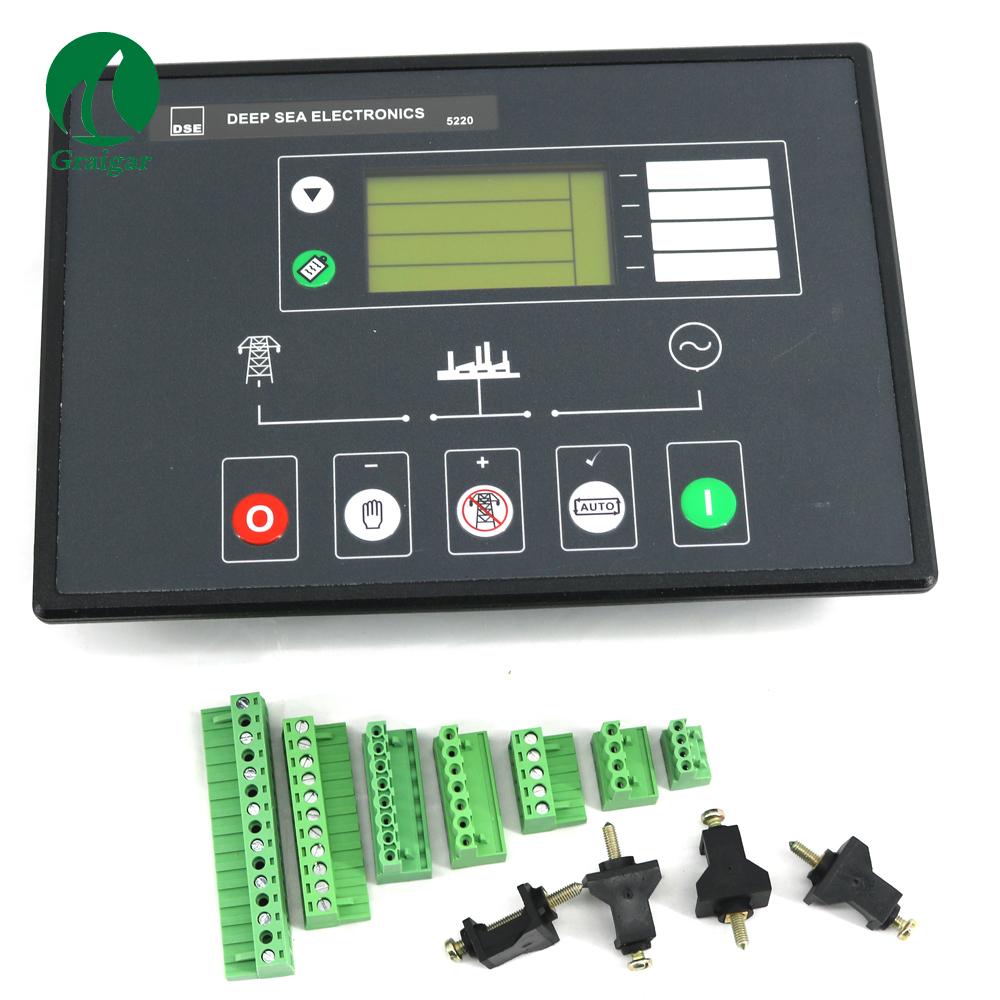

Deep Sea Original Generator Controller DSE5220 Diesel Genset Control Panel  Automatic Start Control

The DSE5210 is an Automatic Start Control Module designed to automatically start and stop diesel and gas generating sets that includen on electronic engines. The module also provides excellent engine monit oringand protection features.

The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop, under/ over generator volts, over current, under/ over generator frequency, low/ high DC battery volts, low fuel alarm and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.

The DSE5220is an Automatic Mains Failure Control Moduleand includes all the features of the DSE5210 plus the ability to monitor a mains (utility) supply.

Upon detection of a mains(utility) failure the module automatically starts the generating set. Once the mains (utility) power has been restored it instructs the generating set to stop.

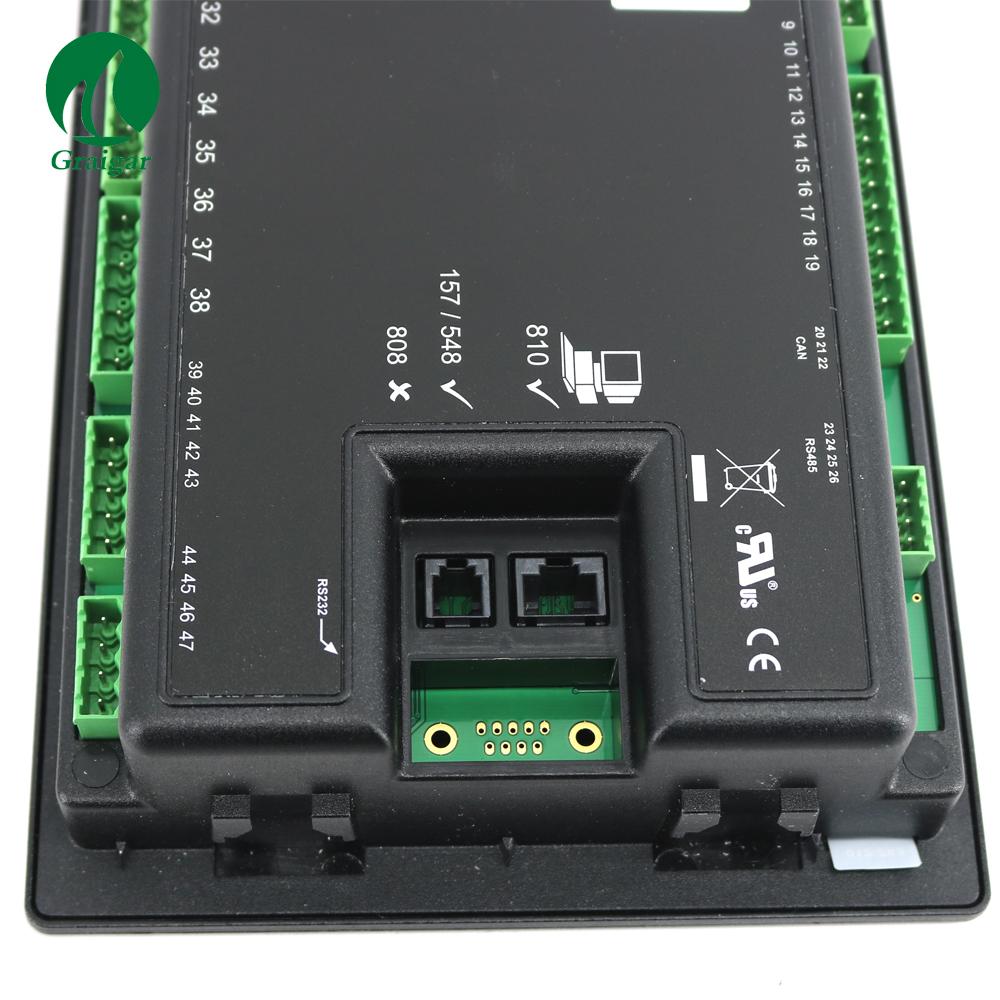

Both modules include RS232 or RS485 communications capabilitiesfor linking to a PC, sending SMS messages and interfacing with new and existing building management systems.

FEATURES

• Automatic start

• Automatic mains (utility) failure detection (DSE5220 only)

• Automatic load transfer

• Configurable inputs

• Configurable outputs

• Configurable alarms & timers

• Digital inputs

• Analogue inputs

• Back-lit character LCD display

• Engine protection

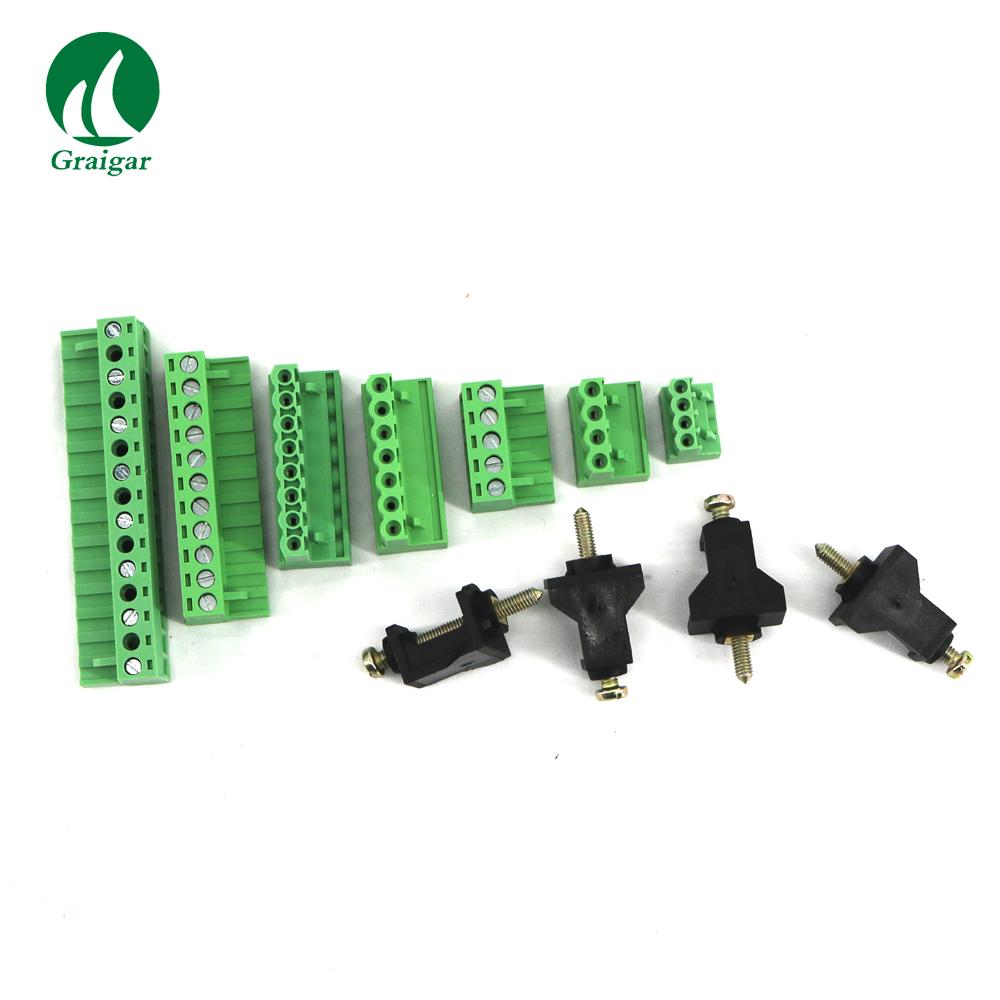

• Front panel mounting

• PC configurable

• Front panel programming

• Remote monitoring

• RS232 or RS485 remote communications (to be specified on ordering)

• Modbus RTU

• Engine history event log

• LED alarm indication

• LCD alarm indication

• SMS messaging

• Hid till lit alarm icons

• Engine exercise mode

• Magnetic pick-up

SPECIFICATION

DC SUPPLY

8 V to 35 V continuous

CRANKINGDROPOUTS

Able to survive 0V for 50mS, providing the supply was at least 10V before dropout and supply recovers to 5V

STARTRELAY OUTPUT

16A DC supply at supply voltage

FUEL RELAY OUTPUT

16A DC at supply voltage

AUXILIARYRELAY OUTPUTS

5A DC at supply voltage

CHARGE FAIL/EXCITATIONRANGE

0V to 35V

MAXIMUMOPERATINGCURRENT

320mA at 12V,215mA at 24V

MAXIMUMSTANDBYCURRENT

175mA at 12V,95mA at 24V

ALTERNATOR INPUTRANGE

15V (L-N) to 333V AC (L-N) absolute maximum

ALTERNATOR INPUTFREQUENCY

50-60 Hz at rated engine speed (Minimum: 15V AC L-N)

MAGNETIC PICK-UPVOLTAGEINPUTRANGE

+/- 0.5V to 70V Peak

MAGNETICINPUT FREQUENCY

10,000 Hz (max) at rated engine speed

MAINS(UTILITY) SENSINGINPUTRANGE

(DSE5220 only)

15V (L-N) to 333V AC (L-N) absolute maximum

MAINS (UTILITY) SENSING INPUTFREQUENCY

(DSE5220 only) 50-60 Hz

MAINS(UTILITY) & GENERATOR LOADING RELAY OUTPUT (DSE5220 only)

8A AC 250V

MODULEDIMENSIONS (WxH)

240mm x 172mm 9.4” x 6.8”

PANELCUT-OUT (WxH)

220mm x 160mm 8.7“ x 6.3”

MAXIMUMPANELTHICKNESS

8mm

0.3”
