Leather Package case hot stamping machine

Model:H-TC3040LT
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:hot stamping machine , gilding machine , bronzing machine
Price: US $2912 / pic
Min. Order:1 pic
Inquire Now

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Last Online:24 Dec, 2024

Product Description

1. Leather embossing machine

• Principle and function: The leather embossing machine mainly uses high temperature and pressure to press the pattern on the leather surface through a mold with a pattern. It can make the leather present various three-dimensional patterns, such as imitation crocodile leather pattern, snake skin pattern, etc., to enhance the texture and beauty of the leather.

• Application scenario: In leather goods manufacturing, for products such as leather bags and belts, embossing can make their appearance more distinctive. For example, when making high-end leather bags, embossing can form exquisite patterns on the surface of the leather bags to enhance the grade of the products.

2. Leather hot stamping machine

• Principle and function: Through the heated hot stamping mold (usually copper or silicone), the metal foil or pigment on the hot stamping paper (a film with metallic luster) is transferred to the leather surface. The leather surface after hot stamping has a shiny metal effect, such as gold, silver, etc., which can highlight the brand logo or decorative pattern.

• Application scenario: In the hot stamping of leather covers, book covers, notebook covers, etc. can be made more gorgeous. For belts, hot stamping can be used to create brand logos or decorative patterns to make the belts more fashionable.

3. Leather cover hot stamping machine

• Features: This machine usually has a precise positioning system, because the leather cover has high requirements for the position accuracy of the hot stamping pattern. It also needs to adapt to leathers of different thicknesses to ensure uniform hot stamping.

• Application advantages: In the production of high-end leather cover products, such as hardcover books, high-end leather notebooks, etc., it can make the text and patterns on the cover (such as book titles, brand logos), etc. present a noble and exquisite effect, attracting the attention of consumers.

4. Belt, leather goods, and leather bags embossing hot stamping machine

• Working method: It combines the two functions of embossing and hot stamping. When working, the belt, leather goods or leather bags are first embossed through the mold to form decorative lines or pattern outlines, and then the hot stamping operation is performed to add the metal effect to the embossed area to make the pattern more three-dimensional and vivid.

• Advantages and effects: This machine can produce complex decorative patterns, such as patterns with metal frames on leather bags, or brand logos with embossing and hot stamping effects on belts. It can effectively improve the quality of product details and make belts, leather goods and bags more competitive in the market.

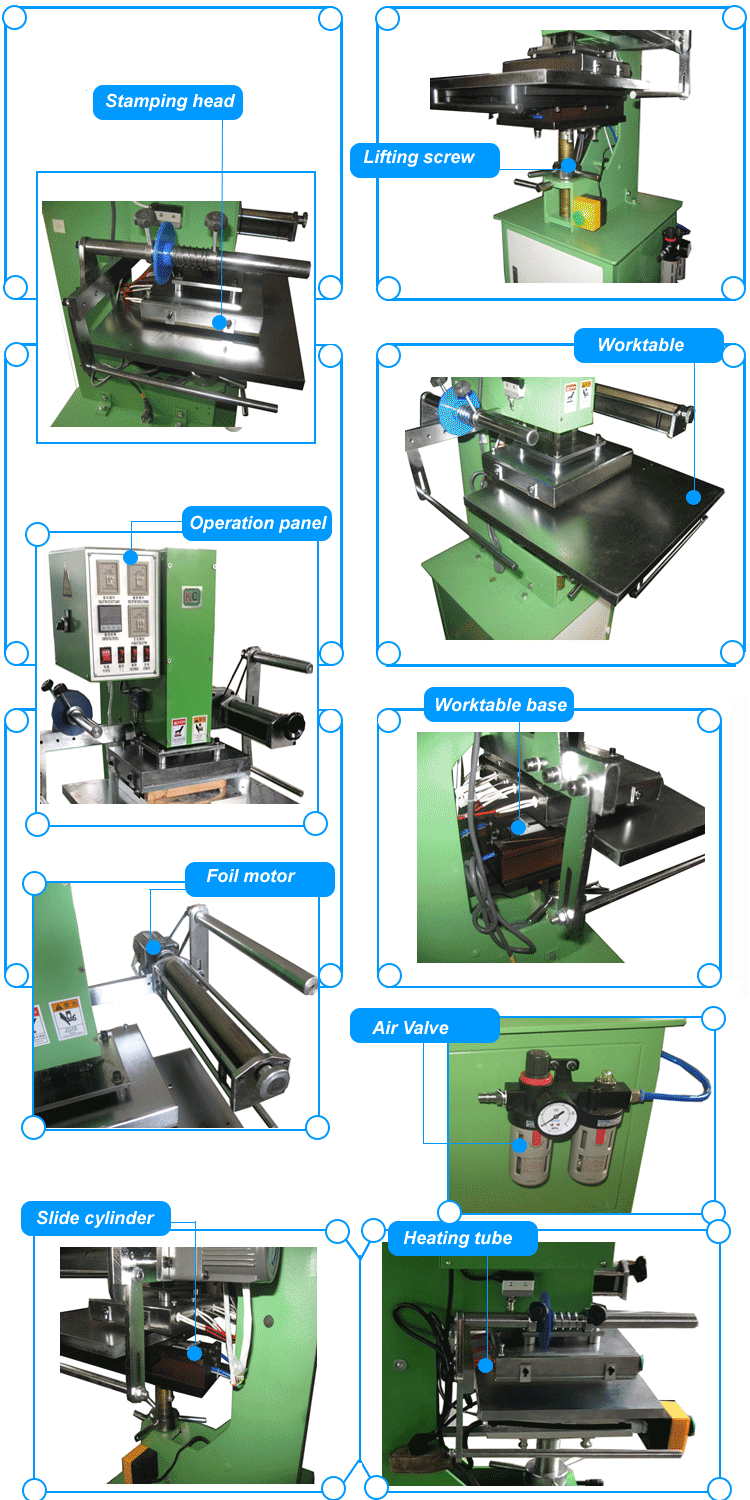

Pneumatic hot stamping Machine//Structure

Working table

High strength Steel plate , size:420*500mm.

Stamping Head drive

Pneumatic drive

Foil collecting method

Motor-drive , Collecting time adjustable

Press adjustment

Up-down of working table

Temperature control

Heating tube heat up,Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

 Pneumatic hot stamping machine //Usage and characters

Guide

  • Gilding - paper, leather, wood, plastic,
  • Baked - wood products, baked painting, gift box packaging;
  • Embossing - paper, leather, cloth.
  • Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  • Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
  • Pneumatic drive, pressure large.

Application fields

  • Paper Gilding, Leather Impression, Wood ware Baking
  • Paper Concave-convex embossing, Cloth hot stamping,
  • Plastics Bronzing
  • Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
  • Woodiness objects baking-burns and Impress;
  • Leather bronzing and Molding;
  • Paper products concavo indentation.
  • Graduated disc of clock bronzing.

Pneumatic hot stamping Machine //Parameter

Technical parameters

H-TC3030LT

H-TC3035LT
  • Hot plate area:300×300 mm
  • Working table area:420 ×500mm
  • Max printing pressure:2,000-3000 Kg
  • Up and down distance:45mm
  • Heat wattage:1600W
  • Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC .
  • Hot plate area:300 ×350 mm
  • Working table area:420 ×500mm
  • Max printing pressure:2,000-3000 Kg
  • Up and down distance:45mm
  • Heat wattage:1600W
  • Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC

H-TC3040LT

H-TC3045LT
  • Hot plate area:300×400 mm
  • Working table area:420 ×500mm
  • Max printing pressure:2,000-3000 Kg
  • Up and down distance:45mm
  • Heat wattage:1600W
  • Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC .
  • Hot plate area:300 × 450 mm
  • Working table area:420 ×500mm
  • Max printing pressure:2,000-3000 Kg
  • Up and down distance:45mm
  • Heat wattage:1600W
  • Foil in feed: Motor Drive
  • Temperature adjustment:0-300oC

Works supply

  • 110V-220VPower supply;
  • 5-7Bar compress air

Package list

  • Package size: . 0.770×0.820×1.550mm
  • Gross weight: 220kg
  • CBM: 1.0145



H.S.Code

8443198000

Certificate

CE

 Pneumatic hot stamping machine //Advantage

Function

  • Table can be pulled into and pulled out the pick and place of convenience products;
  • Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;

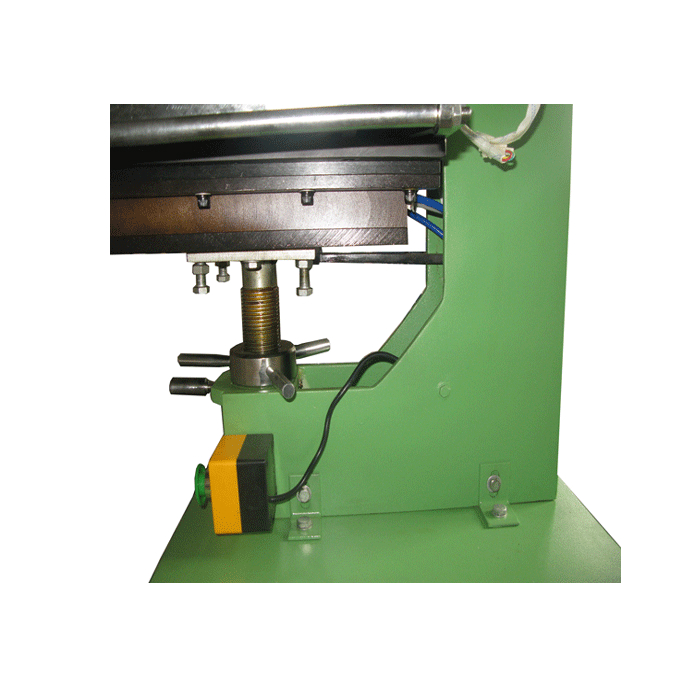

  • Table lifting screw adjustment, simple and convenient;
  • Relays for process control, stable operation, easy maintenance;
  • The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
  • leveraged cylinder pressure, the pressure is uniform and strong;
  • The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
  • Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
  • Using high strength steel, gilt plate and table, has a very high flatness;
  • Heating tube for heating, heat supply is stable, easy to replace

Application:
When choosing a hot stamping machine, the following factors should be considered:
1) The size of the product
The basic requirement for the size of the product is to be able to place the product on the workbench completely. If your product is relatively small and the products involved in the future are not large, it is not recommended to buy a large-size hot stamping machine. If your product size is relatively Large, but the bronzing area is relatively small, you can consider installing a larger-sized workbench on the small-sized bronzing machine;
2) Bronzing area
The hot stamping area is the most important parameter of the hot stamping machine. The size of the hot stamping plate actually determines the hot stamping area. The larger the hot stamping area, the greater the hot stamping pressure required, and the heating power of the hot stamping machine will increase accordingly;
3) Stamping pressure
If the product requires embossed hot stamping or deep imprints, the pressure requirement for the hot stamping machine is high, and a hydraulic hot stamping machine or a pneumatic hot stamping machine with high pressure should be considered. The hot stamping machine with high pressure has higher requirements for the material selection and structure of the hot stamping machine
4) Security
Choose the hot stamping machine with the workbench in and out to improve safety. If you have higher requirements, you can install a safety grating above the workbench of the hot stamping machine, or install a safety cover on the machine, so that the machine meets European safety standards.
5) Automation
The automation of hot stamping machines is also a development trend in recent years. The workbench adopts a turntable workbench, and the addition of a manipulator, or docking with the front-end production line of the product is the basic requirement for automation.
