Overview
HD series video Digital Optical Converter adopt the advanced international digital video and optical fiber transmission technology, and implement the transmission of real-time & synchronization, no-distortion and high quality video effect, which can meet the user’s requirement; the play-and-plug design makes the installation more convenient and easier, and it is unnecessary to implement the spot adjustment.
Its optical module and core circuit adopt the imported components that have high stability, and all optical & electrical interfaces conform to the international standards, which is applied to the different working environment. This optical transceiver with video status indication can monitor the normal operation of system.

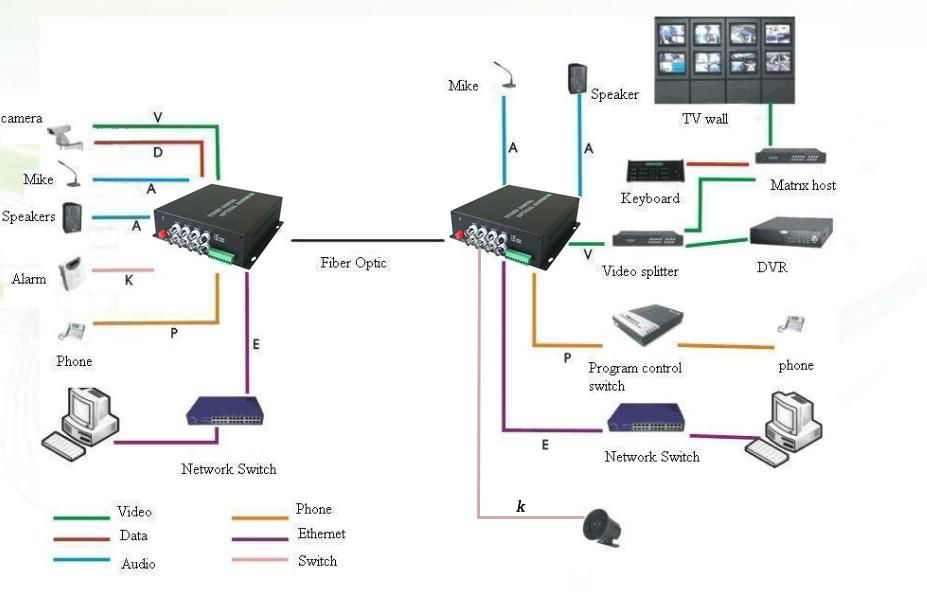

Features
Ø Card type or independent structure, which is applied to centralized management 4U framework
Ø 8-bit digital code and non-compression type video transmission
Ø Support any high-resolution video signal
Ø 5Hz-10MHz video channel
Ø Automatic compatible PAL, NTSC and SECAM video system
Ø With APC circuit, constant input optical power, and large dynamic range
Ø Kilomega optical fiber transmission, large capacity, and easy to upgrade
Ø Power supply and other parameter state indication, which can monitor the operation condition of system
Ø Support no-damage regenerative trunk of video
Ø Advanced self-adapting technology, and it is unnecessary to implement the adjustment of spot electrics or optics when using
Ø Industry-grade design and modularization design make the equipment reliable and flexible
Ø Can automatically restore the fuse of power supply
Ø Full built-in power supply, and the appearance design of shell is unique.
Technical Indexes
|
Parameter |
Specifications |
|
Video |
|
|
Video interface number |
1 channel video |
|
Bandwidth of video |
8MHz |
|
Video input & output impedance |
75 Ω (imbalance) , BNC |
|
Video input & output voltage |
1Vpp |
|
Differential gain |
DG <1% ( typical value) |
|
Differential phase |
DP <0.6° ( typical value) |
|
Weighted signal-to-noise ratio |
S/N ≥ 67dB （Weighted） |
|
Data |
|
|
Physical interface |
The industry standard connecting terminal |
|
Interface Signal |
RS485/RS422/RS232/Manchester |
|
Code rat |
0-400Kbps |
|
BER |
< 10 -9 |
|
Audio |
|
|
Interface port |
lotus block industrial standard port |
|
Audio input/output impedance |
600Ω(balance/imbalance) |
|
Audio input/output voltage |
2Vpp (typical value) |
|
Audio input/output level |
0 dbm (typical value) |
|
Audio bandwidth |
10Hz~20kHz |
|
Audio digital bandwidth |
24 bit |
|
Audio signal-to-noise ratio |
S/N ≥95Db ( weighted) |
|
Ethernet |
|
|
Physical interface |
RJ45 |
|
Operating mode |
Full duplex / half duplex |
|
Operating mode |
Full duplex/ full-duplex |
|
Support agreement |
IEEE802.3、10M、10/100M adaptive |
|
Phone |
|
|
Physical interface |
RJ11 |
|
Voice bandwidth |
8kHz |
|
Special function |
Support the call display，With hands-free function |
|
Working mode |
Point to point link， SPC Exchanges method |
|
Optical |
|
|
Connector |
FC/ST (optional) |
|
Fiber type |
single-mode fiber, single fiber |
|
Transmission distance |
single mode 20Km |
|
Environmental demand |
|
|
environmental temperature |
-30℃～+75℃ |
|
Storage environment |
-40℃～+85℃ |
|
Relative humidity |
0-95% ( no condensation) |
|
Power supply voltage |
AC220V/50Hz |
|
Dimensions |
10.8*10.6*2.7（cm） |
Ordering information
|
Model Number |
Product Configuration |
Fiber Interface |
Fiber Mode |
Wavelengths |
Maximum Transmission Distance |
|
HD-M1V-T/RF |
1 Channel Video |
FC/SC/ST |
Multi-mode |
1310/1550 nm |
2Km |
|
HD-S1V-T/RF |
1 Channel Video |
FC/SC/ST |
Single-mode |
1310/1550 nm |
20Km |
|
HD-S1V-T/RF |
1 Channel Video |
FC/SC/ST |
Single-mode |
1310/1550 nm |
40Km |
|
HD-M1V↑1D↓3-T/RF |
1 Channel Video 1 Channel Data |
FC/SC/ST |
Single-mode |
1310/1550 nm |
2Km |
|
HD-S1V↑1D↓3-T/RF |
1 Channel Video 1 Channel Data |
FC/SC/ST |
Single-mode |
1310/1550 nm |
20Km |
|
HD-S1V↑1D↓3-T/RF |
1 Channel Video 1 Channel Data |
FC/SC/ST |
Single-mode |
1310/1550 nm |
40Km |
Remark: To meet the needs of our customers and help them to realize their projects, we also can manufacture the products according to customers' requirements.
Warranty: on-artificial damage, a year replacement, three years warranty.
