| Model: | SP4-610 |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | pad printer , pad press , pad printing machine |
| Price: |
US $6000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:24 Dec, 2024 |

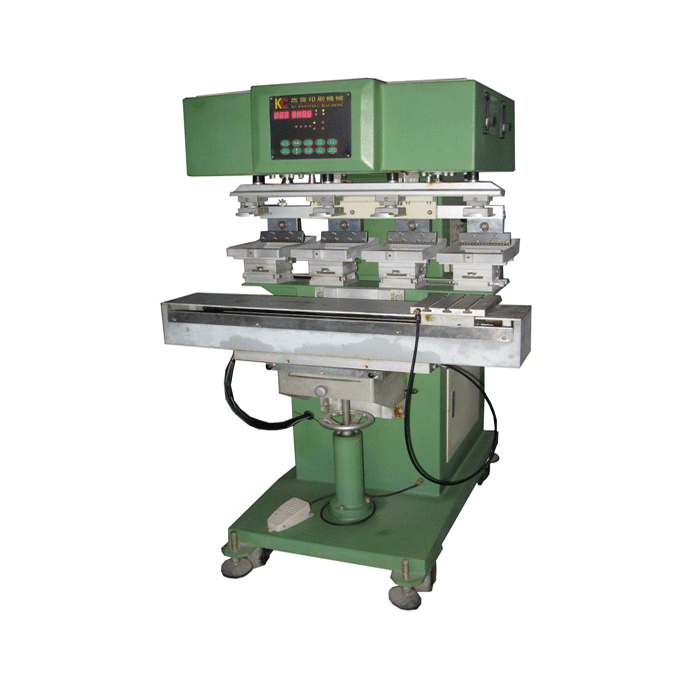

Saw blade friction plate four-color shuttle pad printer

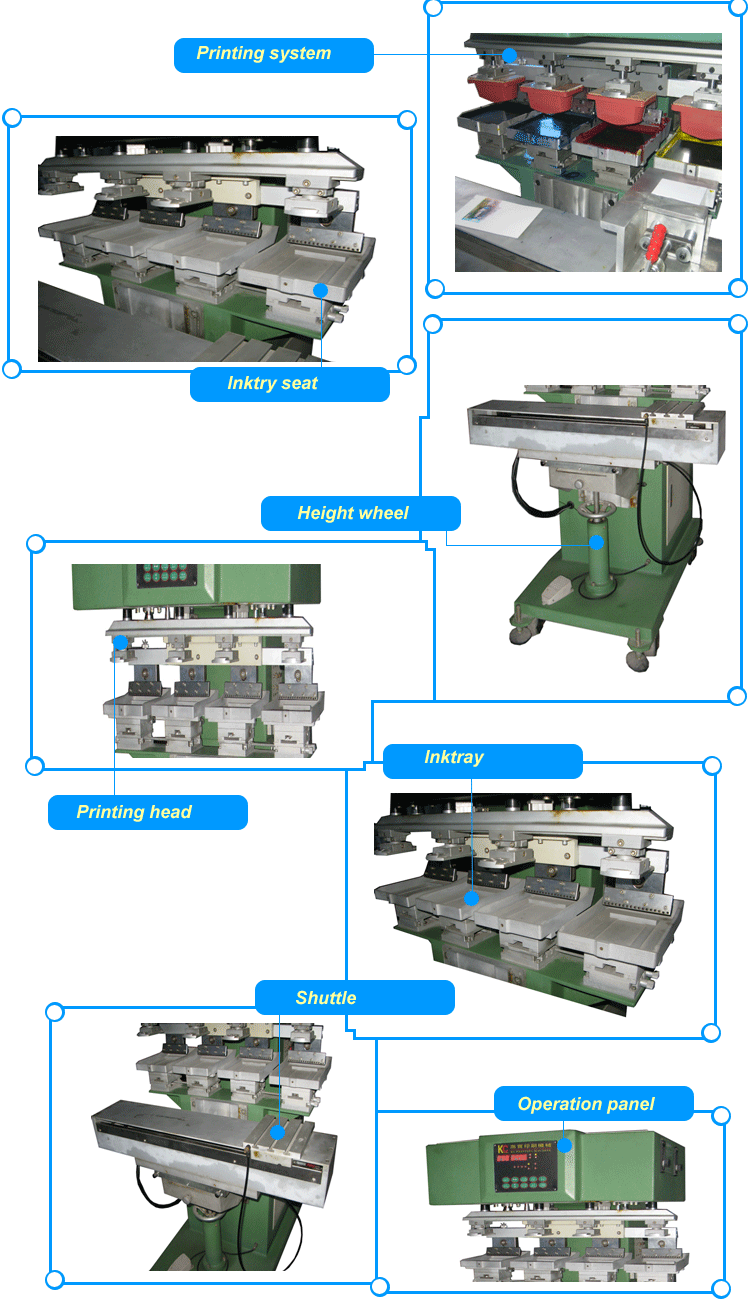

Structure

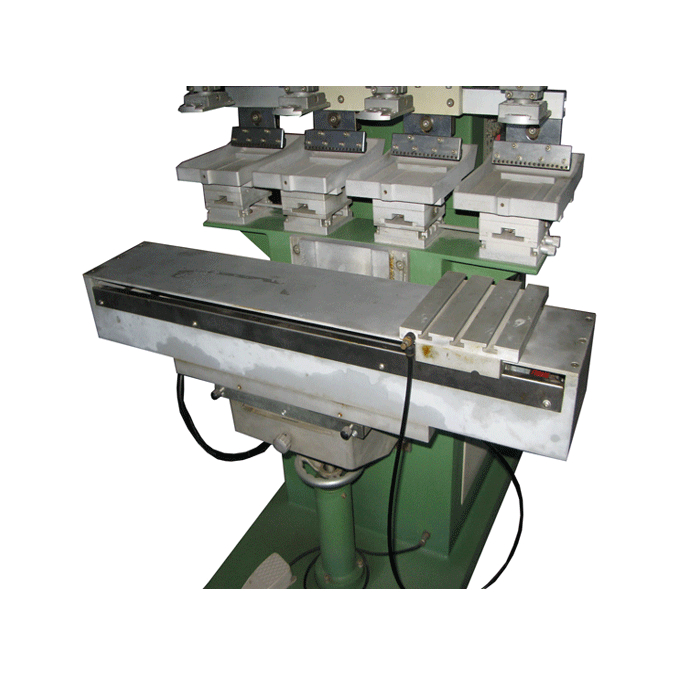

• Shuttle mechanism: Through precise control, the substrate can be reciprocated on the workbench to achieve precise transmission and alignment of large saw blades or friction plates.

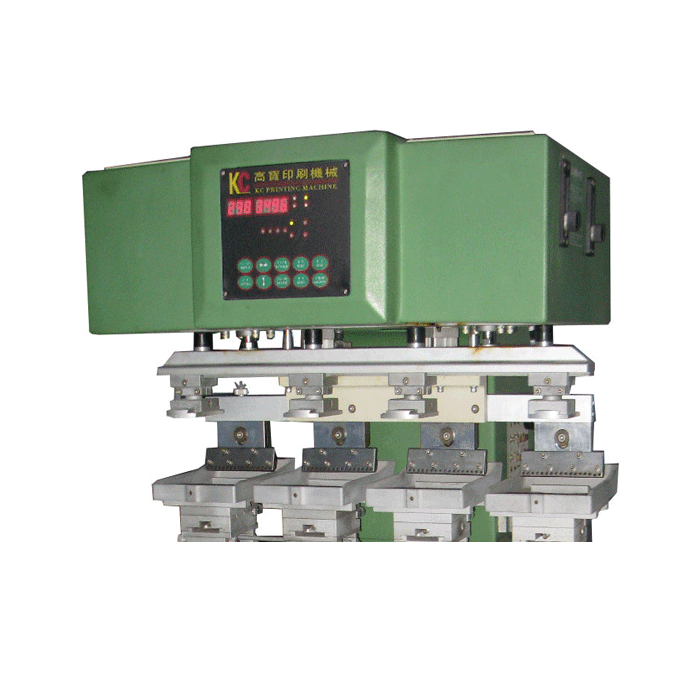

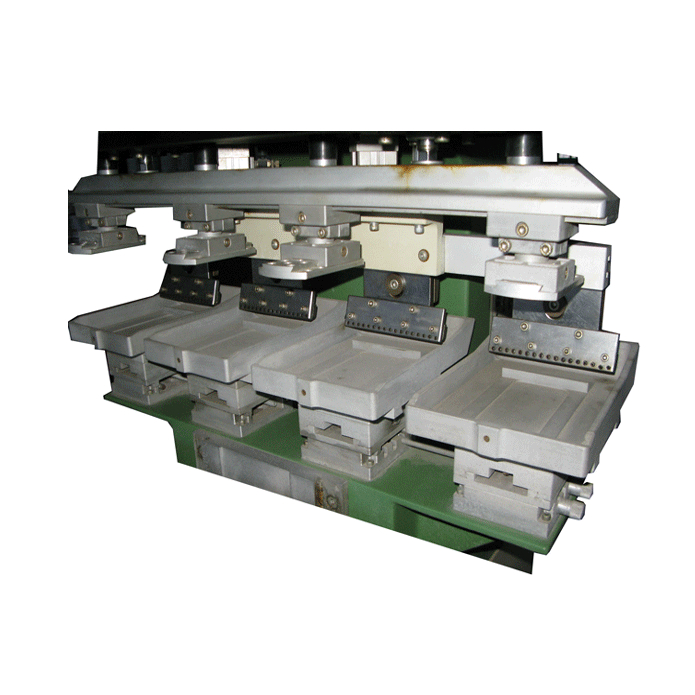

• Printing system: It has four-color printing units, each of which contains an ink tray, a rubber head and related adjustment devices. The rubber head can accurately dip the ink and transfer it to the workpiece surface.
• Fixture system: Equipped with specially designed fixtures, it can firmly fix large saw blades or friction plates to ensure that the workpiece will not move during the printing process and ensure the printing quality.
Features
• Precision printing: By using the precise movement of the shuttle mechanism and the cooperation of the printing system, clear and high-quality patterns and texts can be accurately printed on the surface of large saw blades or friction plates.
• Multi-color function: The four-color printing unit can meet the printing needs of complex patterns, making the product appearance more diverse.
• Wide range of application: Designed for large saw blades and friction plates, it can adapt to such workpieces of different sizes and shapes, and has strong versatility.
Application
Mainly used in large saw blade and friction plate industries. Printing brand logo, specification model, safety warning and other information on saw blades is convenient for users to identify and use; printing trademarks, performance parameters and other content on friction plates is helpful for product brand promotion and quality traceability.
|
4 colors pad printer with shuttle//Structure |
||
|
Working table |
4-station shuttle-type working table |
|
|
Shuttle stroke |
200mm |
|
|
Ink supply system |
Open inkwell ink supply system |
|
|
Plate type and size |
10mm steel plates/ plate. Size :150*150mm. |
|
|
Pad dropping control |
Simple-cylinder , Continue pressing |
|
|
Ink drying |
Heat air |
|
|
four colors pad printer//Usage and characters |
||
|
Guide |
|
|
|
Application fields |
Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field. |
|
|
4 colors pad printer with shuttle//Parameter |
||
|
Technical parameters |
SP4-606 |
|
|
||
|
SP4-608 |
SP4-610 |
|
|
|
|
|
Works supply |
|
|
|
Package list |
|
|
|
H.S.Code |
8443198000 |
|
|
Certicate |
CE |
|
|
4 colors pad printer with shuttle //Advantage |
||
|
Function |
|
|
| Summary: | This four-color shuttle pad printing machine is equipped with a steel plate with a width of 150mm, and the printing size has been significantly expanded. At least it can print patterns of more than 130mm in the length direction and width direction. Pad printing machines are more suitable for printing small-area products, but there are also many products with large dimensions and large printing areas. At this time, the steel plate of the pad printing machine must be enlarged. It is easier to expand in the vertical direction, and it is easier to expand in the horizontal direction. More difficult, expanding in the lateral direction will mean that the shuttle table needs a cylinder with a larger stroke. While the printing area expands, the pressure of the cylinders above and below the corresponding rubber head also needs to be greater. |
|---|---|
