<p>Braided Sleeve for Wiring Harness&nbsp;</p>

<p>TT20 self-wrapping woven sleeve,&nbsp;</p>

<p>TT42 Double Layer self-wrapping woven sleeve</p>

<p>TW03 Self-wrapping woven sleeve</p>

<p>FG30 Exppandable Braided Sleeve&nbsp;</p>

<p>BHST Heat Shrinkable Braided Sleeve&nbsp;</p>

<p>&nbsp;</p>

<p><span style="color:rgb(0, 170, 255)"><strong>Introduction</strong></span></p>

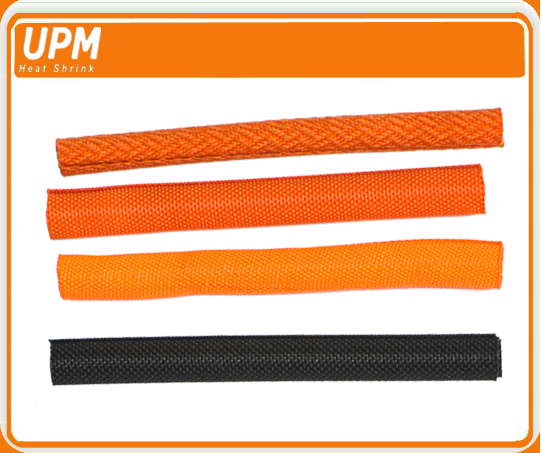

<p>Made of PET polyester monofilament, this product features excellent abrasion resistance, corrosion resistance, and flexibility. It is halogen-free flame retardant, and its unique woven structure allows for expandability and scalability, suitable for wrapping wire harnesses and fluid pipelines. It can smoothly pass through large or irregularly shaped components, with liquid flow in and out without accumulation due to its mesh structure. Widely used in military, automotive, aerospace, and new energy industries for protecting components such as wire harnesses, hoses, and pipes</p>

<p>&nbsp;</p>

<p><span style="color:rgb(0, 170, 255)"><strong>Features</strong></span></p>

<p>Operating temperature: -70&deg;C~150&deg;C</p>

<p>Halogen-free, RoHS compliant</p>

<p>Smooth laser or hot knife cutting</p>

<p>Flame retardant UL94 V0</p>

<p>Standard color: Black(-0) , Orange (-3)</p>

<p><img alt="" src="https://cdn.shopifycdn.net/s/files/1/0696/8131/6072/files/UPM_CAT_FR20-E_Expandable_Braided_Sleeve_00.jpg?v=1720600271" /></p>

<p><span style="color:rgb(0, 170, 255)"><strong>Introduction</strong></span></p>

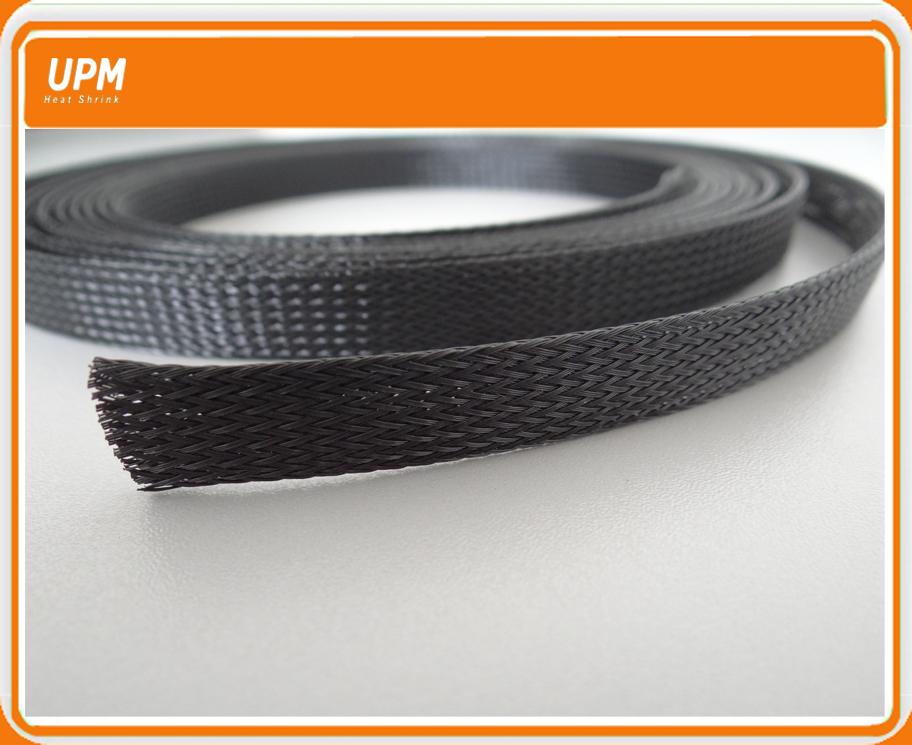

<p>This product is twill a self-closing product (wrap-around sleeve), braided by polyester monofilament and multifilament, which has good wear resistance, fire resistance and heat dissipation, and is used to provide anti-wear protection and noise suppression; the open structure is convenient for the maintenance, maintenance, modification and overhaul of the covering; it is suitable for the protection of the wiring harness and piping system of traditional road vehicles and new energy vehicles.</p>

<p>&nbsp;</p>

<p><span style="color:rgb(0, 170, 255)"><strong>Features</strong></span></p>

<p>Operating temperature: -50&deg;C~150&deg;C</p>

<p>Halogen-free and Environmentally friendly, RoHS compliant</p>

<p>Smooth laser or hot knife cutting</p>

<p>Flammability：UL94 HB，FMVSS302</p>

<p>Standard color: Black(-0), Orange (-3), Yellow (-4)</p>

<p><img alt="" src="https://cdn.shopifycdn.net/s/files/1/0696/8131/6072/files/UPM_CAT_TT26_Self-wrapping_Woven_Sleeve_00.jpg?v=1720600255" /></p>

<p><span style="color:rgb(0, 170, 255)"><strong>Introduction</strong></span></p>

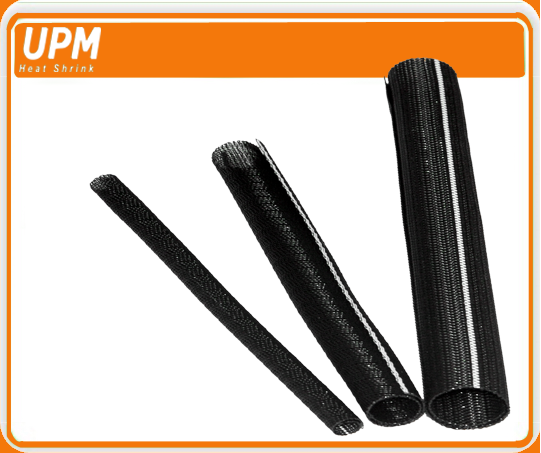

<p>Made of polyester fiber (warp) and polyolefin monofilament (weft), this product is primarily used for protecting automotive hoses for wear resistance, noise reduction, and heat insulation, as well as for protecting wire harnesses in new energy vehicle battery packs. It is often used on bent or irregularly shaped pipes, tightly adhering to the protected parts after heat shrinking for a neat appearance. The product is cut using heat or laser cutting methods to ensure a smooth edge. The standard product has a shrink ratio of 2:1, but custom options with shrink ratios of 2.5:1 or 3:1 are available.</p>

<p>&nbsp;</p>

<p><span style="color:rgb(0, 170, 255)"><strong>Features</strong></span></p>

<p>Operating temperature: -40&deg;C~125&deg;C</p>

<p>Minimum full shrinkage temperature: 125 &deg;C</p>

<p>Halogen-free and Environmentally friendly, RoHS compliant</p>

<p>Standard color: Black</p>

<p>Shrink ratio: 2:1</p>

<p><img alt="" src="https://cdn.shopifycdn.net/s/files/1/0696/8131/6072/files/UPM_CAT_BHST_Heat_Shrinkable_Braided_Sleeve_00.jpg?v=1720600271" /></p>
