Ponovo T1000 Primary Injection Test Set

Model:	T1000
Brand:	PONOVO
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Instrument / Electricity Meter & Instrument
Label:	primary injection , relay test , current transformer
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

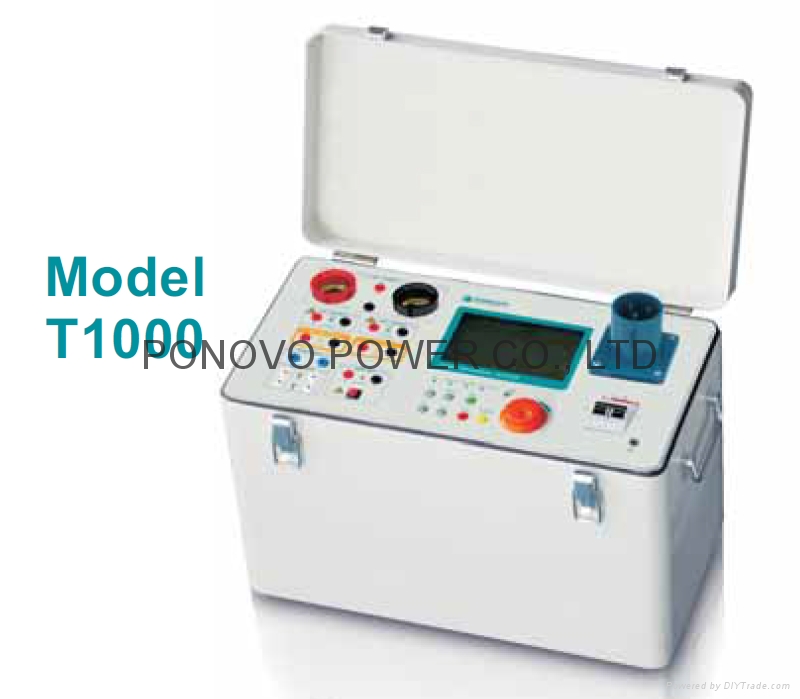

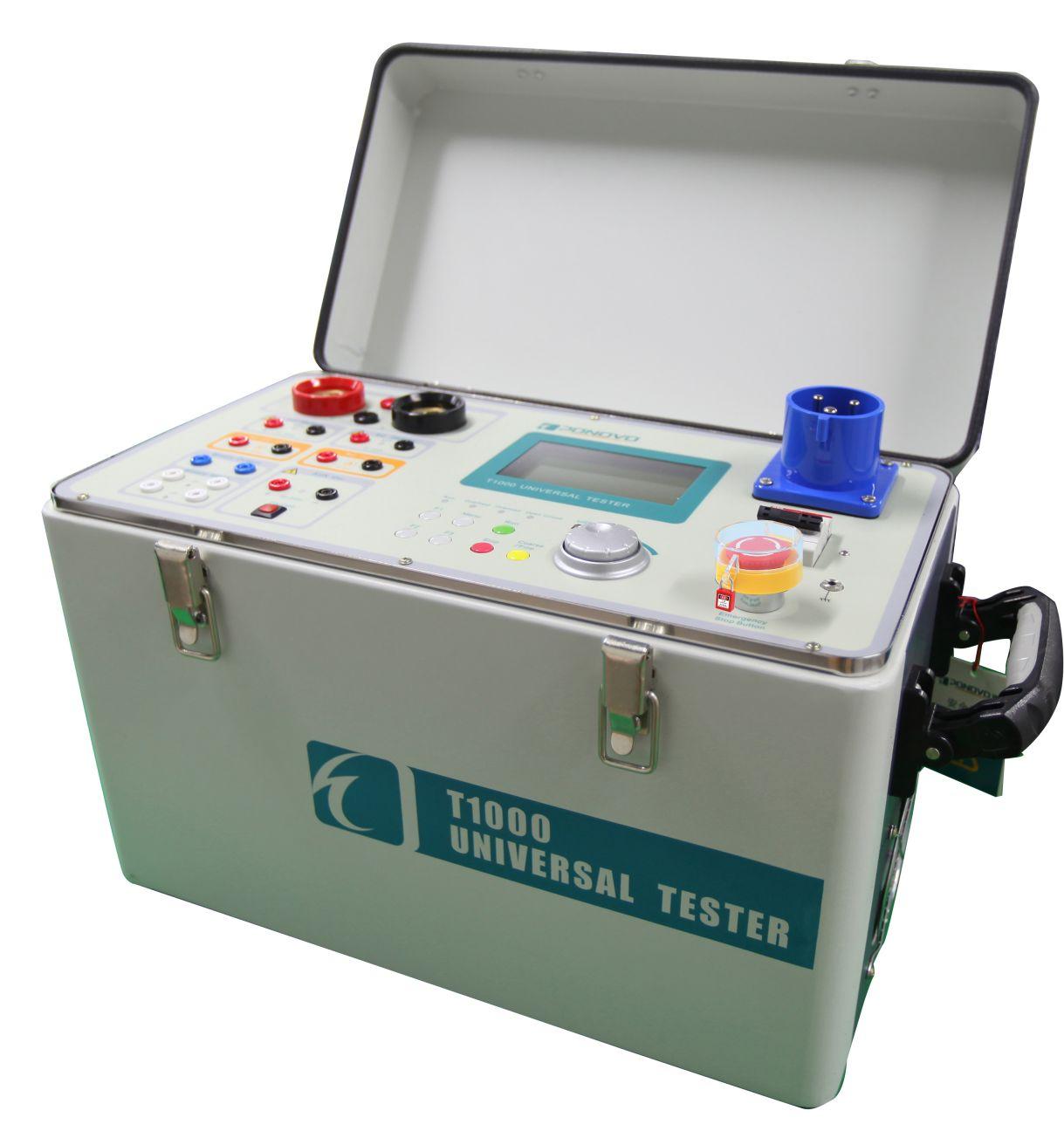

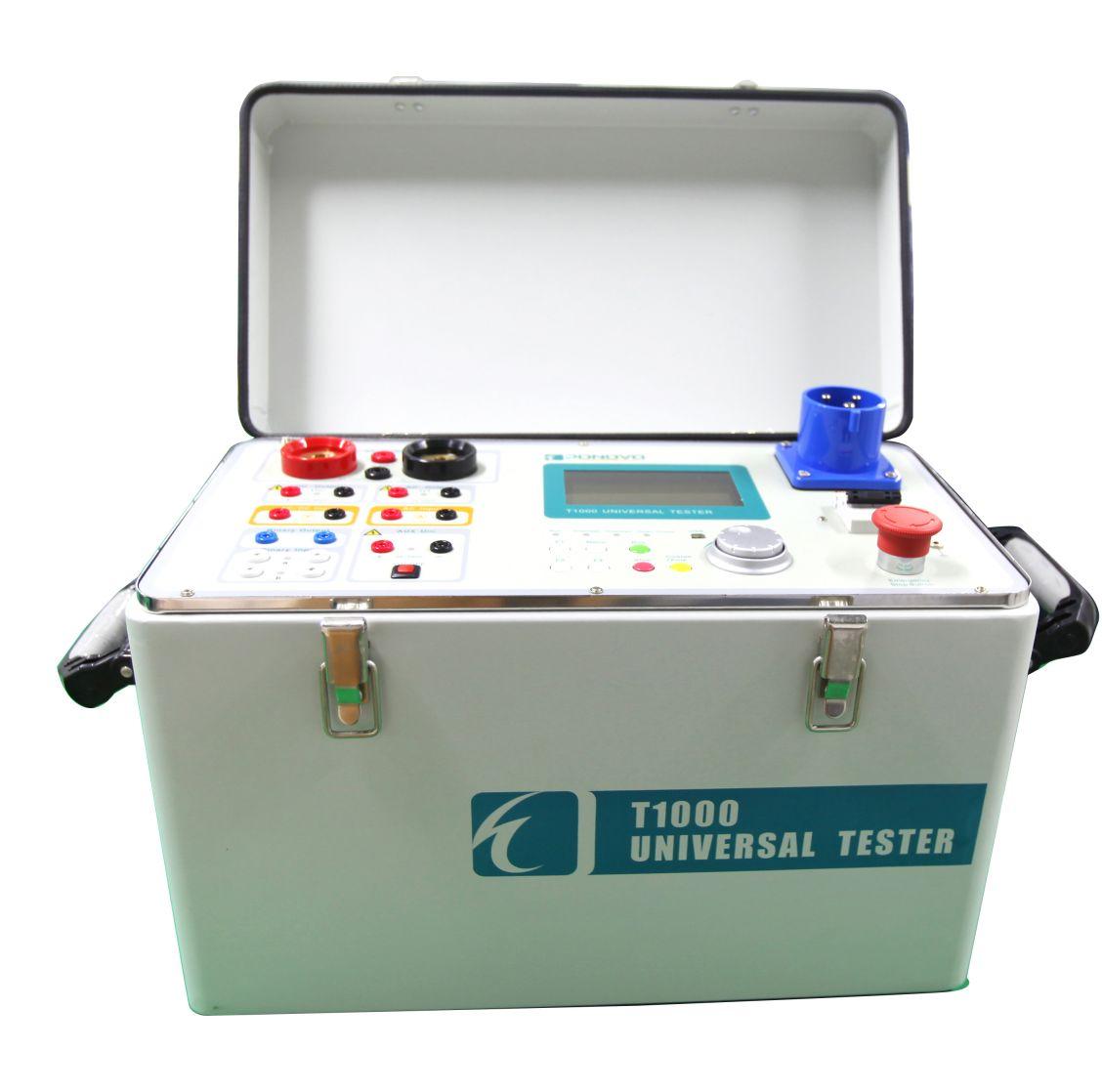

Ponovo T1000 Primary Injection Test Set

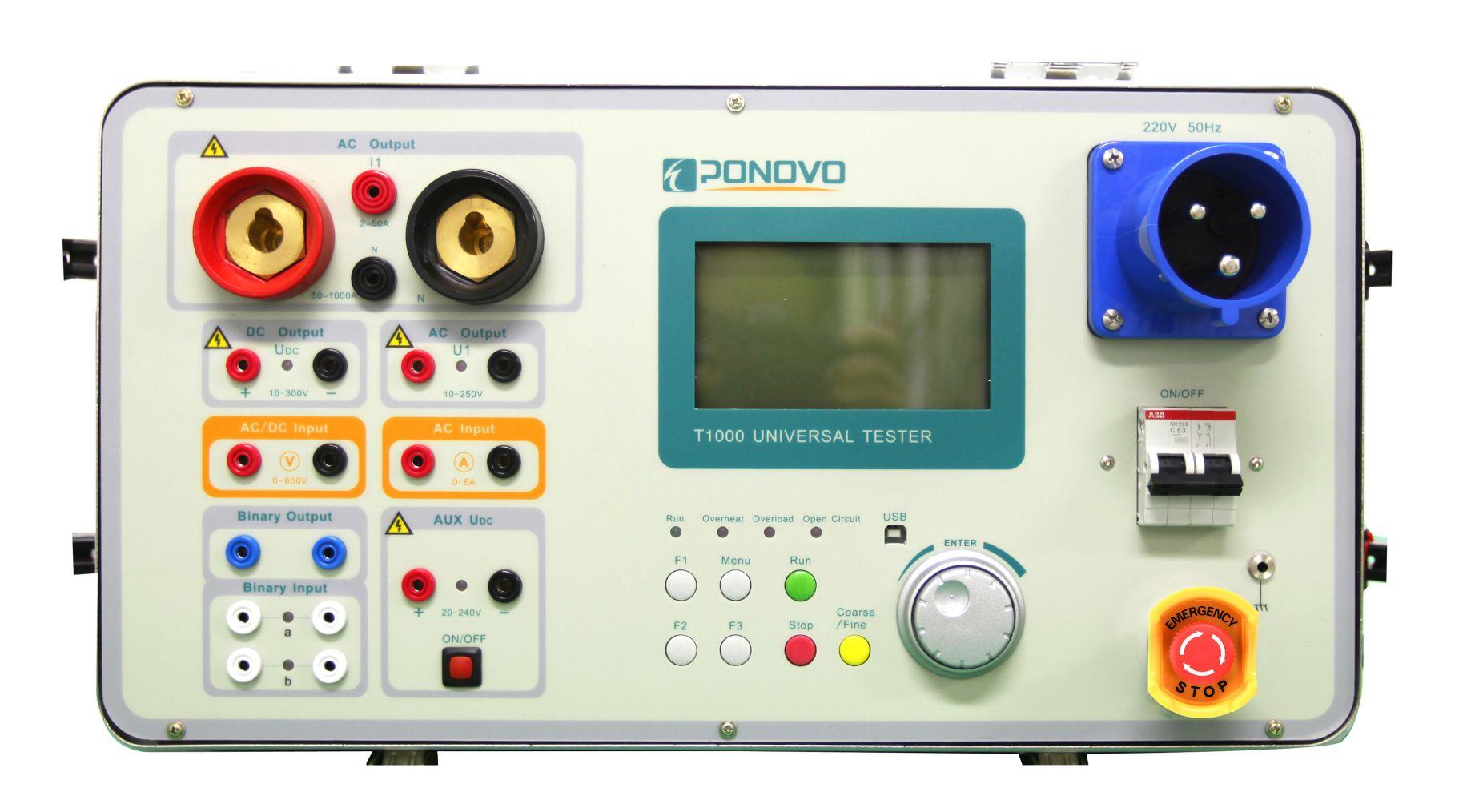

T1000 primary injection test set is the model featured with light weight and 2 minutes continuous output time at 1000Aac. This ideal primary injection test set with LCD display, quick control button and rotating mouse is very easy and convenient to operate.
The T1000 series single phase relay test kits are designed for easy and safe test of different type of relays. The powerful 1000A current source can be used to test all kinds of current relays, including high burden relay and CT. The AC/DC current and/or voltage sources allow phase angle and frequency to be adjusted smoothly. This makes it possible to precisely test directional and frequency relay. 1000A is integrated with two current sources and thus can test differential relays easily. The kit uses advanced switching power amplifier to replace the traditional transformer, thus avoiding the dangerous high voltage across the current output.

Features:

•Relay & CT Tester Function, Ratio, Secondary Impedance, Polarity, etc.

•Multimeter Function

•Easy to control

•PC report tool software

•Advanced high power constant current source with pulse width modulation technology for automated testing

•Continuously Output 1000A for 2 minutes, continuously output 400A for more than 5 minutes

Main Specifications

AC Current (I1)
Range	1000A/7000VA
Accuracy	0.5%
Load time	120s at 1000A
AC Voltage (U1)
Range	250V/750VA
Accuracy	0.5%
Load time	continuous
DC Voltage (Udc)
Range	300V/750W
Accuracy	0.5%
Auxiliary DC supply	20-240V
Voltmeter	0-600V ac/dc
Ammeter	0-6A ac/dc
Binary input	2
Binary output	1
Dimension	260330500mm
Weight	30kg

SN	Module type	Functions	Application relay types
1.	Relay test	Users can select any of the following test content to operate. Trip time test, trip time and pulse length test. Pick up test Reclosing DC relay Motor overload test	Over current relays Undercurrent relays Overvoltage relays Under voltage relays Motor overload protection Automatic reclosing devices Thermal relays Time-delay relays
2.	Any Test	Manually control the amplitude, phase of AC variables. Shot, linear ramp, pulse ramp
3.	Timer	Automatically test
4.	CT test	Primary side injection Ratio test Secondary impedance test
5.	Report	Reviewing the report	30 reports can be saved and 10 reports can be displayed in each page.
6.	System setting	Set rated voltage and frequency	/
7.	Aux DC	Provide power supply	/
8.	PC control	The test results can be transferred to external PC via USB port.	/
