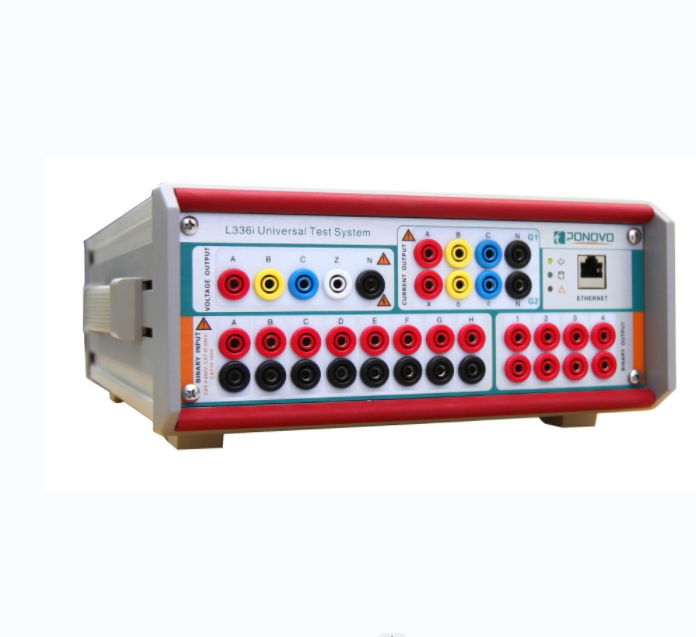

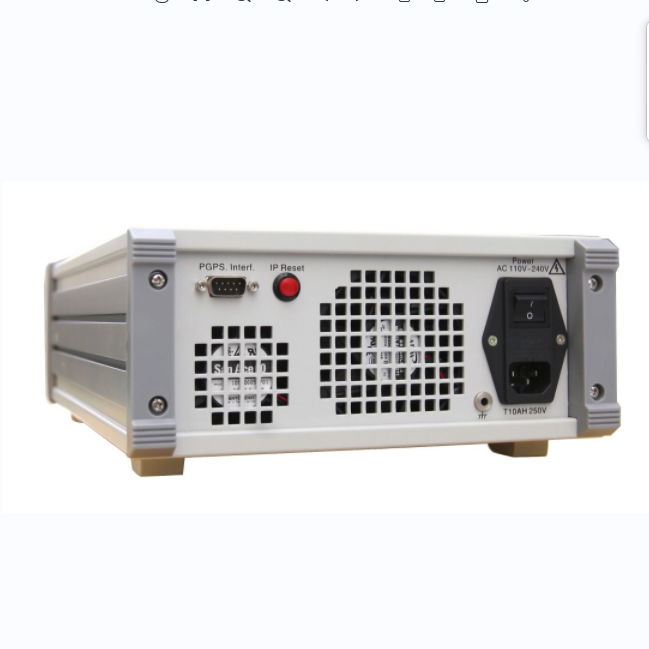

Ponovo L336i SUPER-LIGHT Protection Relay Test Set

New Light Weight Relay Testing Equipment

We are proud to announce the new L336i relay testing system which is

the lightest in weight and the smallest in size in the world!



Equipment

More options for different testing requirement

Standard Version‐L336i: 6×15A, 4×300V

Economic Version‐L336i‐E: 3×20A, 4×300V



Features

.Light weight with only 8.6kg, 1/3 of the weight of traditional testing system

.Tracing the signal generation with digital technology

.Stable signal output with high accuracy

.Binary inputs with adjustable threshold

.Use LAN port for connecting to external PC

.Use powerful PowerTest software with ready test modules, realizing the maximum control flexibility over test process

.Can be upgraded to support the test of IEC61850 compatible relay

.Can support wireless control by smart phone APP (Both IOS and Android) for

testing relays



Real‐Time Outputs Display

Real‐time  output  waveform  display  helps  the  fast

troubleshooting  of  wiring  and  test  circuitry  before  test actual started.

User  can  also  use  this  provision  to  analyze  the  external signals, such as

phase angle, power, harmonic, etc.



IEC 61850 Function

L336i  and  L336i‐E  provides  analog voltage/current  signal  to  relay  and  the

GOOSE  message  from  relay  is  received  and analyzed by relay test set.



Main Specifications

Current
Range	6 x 0~15A
Power(typical)	≥105VA at 15A ≥210VA at 30A
Accuracy	1mA(<0.5A), 0.1%(0.5A~20A),  0.2%(20A~30A)
Voltage
Range	4 x 0~300V
Power(typical)	≥60VA at 150V
Accuracy	2mV(0.2V-2V), 0.1%(2V-150V)
Frequency
Sine signal	1 … 1000Hz
Accuracy	1mHz(20Hz-65Hz), 10mHz(65Hz-450Hz)
Phase angle
Range	0-359.9º
Accuracy (typical)	0.1º
Binary input
Number	8
Type	0-400Vdc threshold or potential free
Binary output	4
IEC61850 GOOSE	optional
Dimension	256*110*395mm
Weight	8.8kg



L336i can be used for various kinds of relay testing including:

IEEE. NO.     DEVICE

2     Time Delay Starting or Closing Relay

21   Distance Relay

24   Volts per Hertz Relay

25   Synchronizing or Synchronism-Check Device

27/27N   Undervoltage Relay

30   Annunciator Relay

32   Directional Power Relay

36   Polarity or Polarizing Voltage Devices

37   Undercurrent or Underpower Relay

40   Field (over/under excitation) Relay

46   Reverse phase or Phase-Balance Current Relay

47   Phase-sequence or phase-balance voltage relay

50/50N   Instantaneous Overcurrent

51/51N   AC Time Overcurrent Relay

52   AC Circuit Breaker

53   Field Excitation Relay

55   Power Factor Relay

56   Field Application Relay

58   Rectification failure relay

59/59N   Overvoltage Relay

60   Voltage or Current Balance Relay

61   Density switch or sensor

62   Time-Delay Stopping or Opening Relay

64   Ground Detector Relay

67/67N   AC Directional Overcurrent Relay

68   Blocking or Out of Step Relay

74   Alarm Relay

76   DC Overcurrent Relay

78   Phase-Angle Measuring Relay

79   AC-Reclosing Relay

81/81U/O/R   Frequency Relay

82   DC load-measuring reclosing relay

85   Carrier or pilot-receiver relay

86   Lock-out relay

87   Differential Protective Relay

91   Voltage Directional Relay

92   Voltage and Power Directional Relay

94   Trip Relay
