This machine is a patented product

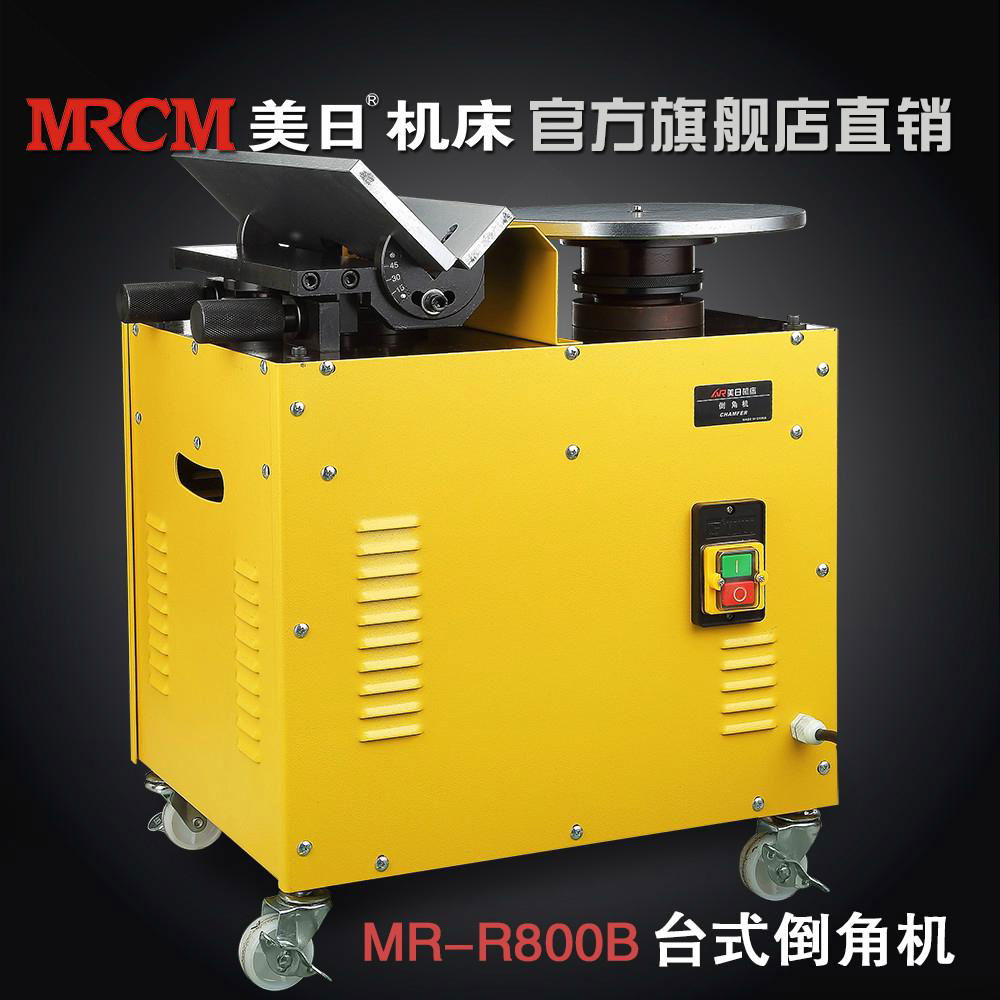

The machine is a composite chamfering machine, straight line chamfer can be adjusted for 15 ° ~ 45 °.
Whether the machine is straight or curved (outside the hole, hole, waist hole) can be easily chamfered, can replace the CNC machining center, general machine equipment can not be processed parts.
No need to clamp, simple operation, chamfering regular, easy adjustment, economical and reliable, greatly improve the efficiency, suitable for batch processing parts business use.
Work table with high-quality die steel made by heat treatment, durable, small friction.
Can be widely used in mold manufacturing, metal machinery, machine tool manufacturing, hydraulic parts, valve manufacturing, textile machinery chamfering and milling, planing and other processing products burr. The use of fast machine chamfering is the trend of the development of machinery industry. To overcome the existing machinery and power tools processing shortcomings, with convenient, fast and accurate advantages, is the metal objects chamfering the best choice.
The machine uses Swedish SKF bearings, imported CNC blade (linear: 2030; curve: 070204).
Technical Parameters:
Chamfer angle: 15 ° to 45 ° (straight line)
Chamfer angle: 45 ° (curve)
Chamfer range: 0 ~ 3mm (straight line)
Chamfer range: 0 ~ 2.5mm (curve)
Speed: 8500rpm (straight line)
Speed: 12000rpm (curve)
Power supply: 750W 380V 3 / 4HP
Machine size: 52 × 44 × 60cm
Packing size: 54 × 46 × 62cm
Net weight / gross weight: 63kg / 75kg
The machine should be in accordance with the following matters for regular inspection and maintenance:
1. After the work of each class, clean up the residual iron on the machine, keep the machine clean.
2. Observe the tightness of the belt and adjust if necessary.
3. Always check whether the fastening screws are loose.
4. Blade wear or damage, adjust the blade using other cutting edge rotation angle, can be strong, if the blade 4 cutting edge has been worn, please replace.
