Appication:



Metal cnc router is suitable for all kinds of metal, such as copper, aluminum, iron, steel, stainless steel, soft steel, alloy, silver, gold.
Also suitable for nonmetal, such as arcylic,wood, MDF, double color board, stone, jade and so on.
It can engrave and cut well on aluminum, copper, alloy,silver, gold.
Engrave well on steel, stainless steel, iron and so on.
For nonmetal, advertising and wood indurstry, it can work well on mini size material.



Introduction:

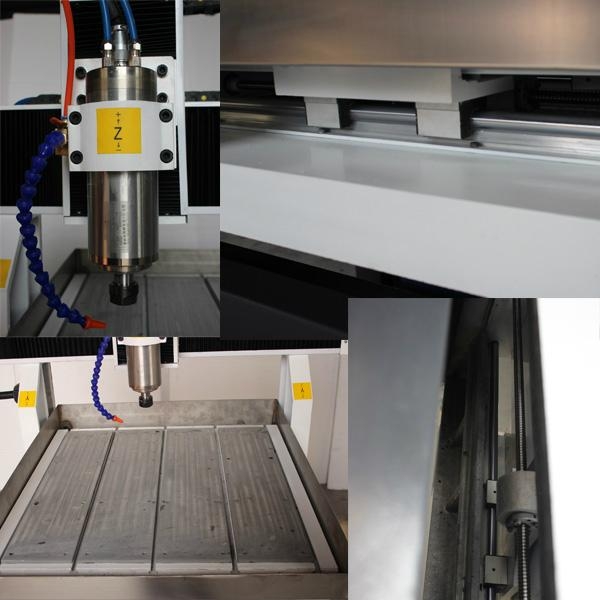

1. Cast iron Lathe bed, cast aluminum Longmen structure and working table.

2. 3-axis (XYZ) are use 57BYG-311 step motor (Jiang su Changzhou) and 3-axis is dust-proof.

3. X,Y,Z axis are use hiwin linear square guideway, the Transmission X,Y axis are ball screw(2510), Z-axis ball screw is 1605.

4. Exchange transformer(AC 30V 300W) power supply, driver are Leadshine M542-05.

5. China 1.5KW water cooling motor spindle and 1.5KW surfar frequency transformer.

6. 3-axis motor line is CNC High soft lines (4*0.75), spindle line is Shielding high soft line (3*1.5)

7. The processing precision is 0.03-0.05mm.

8. Control system is DSP, the Mach3 and PCI Ncstudio are optiona, and Design software is Artcam, Type3.

9. Stainless steel water slot for tools protection.



Parameter:



Model:	ZK-6060
Machine body:	Whole cast iron
Move Mode	Table Move
Guideway:	XYZ-axis use Hiwin linear square guideway
Driving mode :	XYZ-axis use ball screw
X,Y-axis working area :	600*600mm
Z-axis working area:	120 or 200 mm
Max. Feeding height:	150mm or bigger
Cut thickness of material:	≤40mm
Max. Speed:	8000mm/min
Working speed :	0-6000mm/min
Mechanical precision:	0.01mm
Driver type:	Stepper motor (57BYG-311)
Spindle:	1.5 KW variable speed , water-cooled motor
Spindle speed:	0-24000rpm/min
Blade diameter:	3.175mm,4mm,6mm
Control system:	DSP(offline operate)
Command:	G code ,u00,mmg,plt,HPGL
Operating temperature:	0-45°C
Relative humidity:	30%-75%
Compatible Software:	Type 3 software , Artcut , Artcam, Mastercam
Max. Power consumption:	3.2KW
Power source:	AC220/50HZ
Optional parts	Stainless steel water slot





After sale service:



1, We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing the orders for abnormal models, the delivery time is at most 15 days.
2, Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to foreign customers, According to foreign customer's requirement, we will arrange techinians go abroad to install or maintenance the machines,.
3, Within the warranty period and the machine parts were damaged under normal using condition, we will offer new parts for the free
4, We will offer software upfrades for free.
5, After the expiry of warranty, we can renewal of the contract, which will enjoy the same service that during the warranty period.
6, The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.



The other size model:



ZK-1525 1500*2500*200(or higher), ZK-1530 1500*3000*200, ZK-2030 2000*3000*200mm,

ZK-2040 2000*4000*200mm, ZK-3030 300*300*100mm, ZK-4040 400*400*100mm, ZK-6090 600*900*120mm,

ZK-1212 1200*1200*150mm, ZK-1015 100*1500*150mm, ZK-1218 1200*1800*150mm and so on.



Dear customer:



And we also accpect DIY manufacturing, you can share your drawing or design to me, our technician will try best finish that for you.

More details or other question, please send your inquiry to me.
