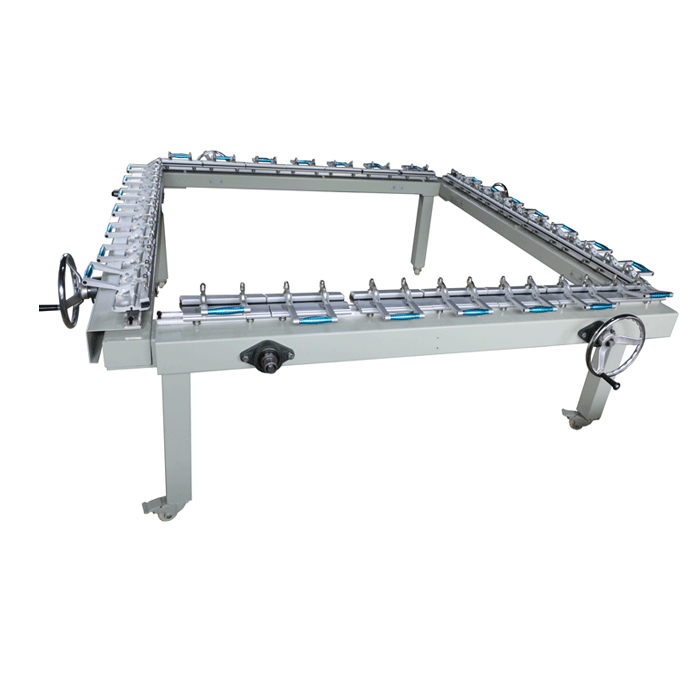

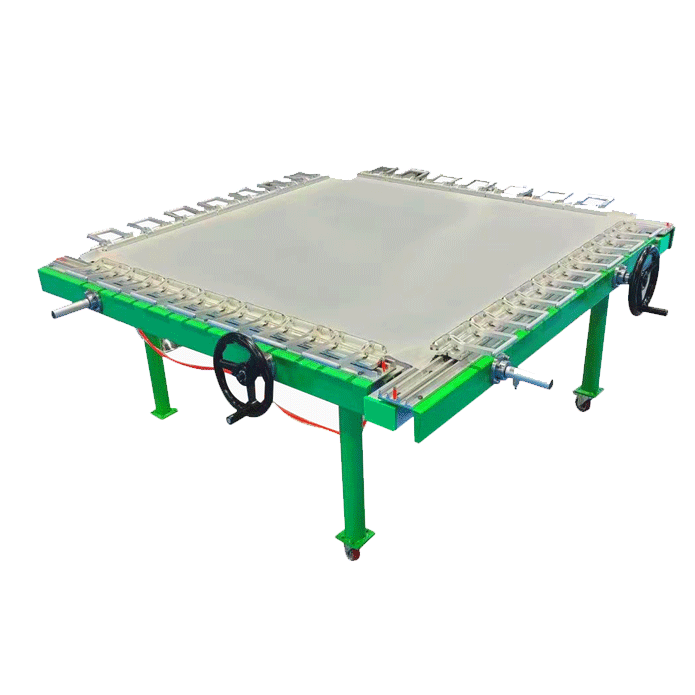

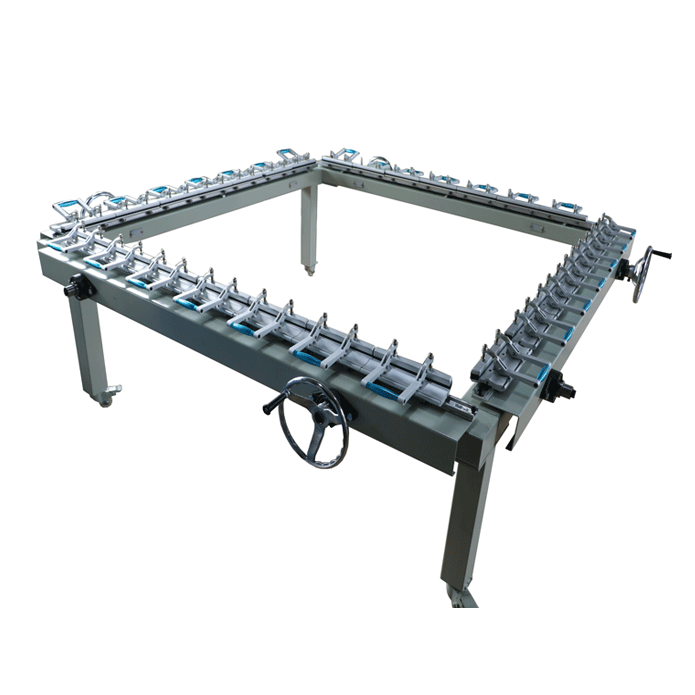

Tighten silk machine( SM-120160TS)

Model:	SM-120160TS
Brand:	KC
Origin:	Made In China
Category:	Industrial Supplies / Plate Making & Printing Machine
Label:	silk tighten machine , Stretching Mac , silk-pull machine
Price:	US $1350 / pic
Min. Order:	1 pic

Inquire Now

Product Description

The stretching screen machine is a device that uses the power of mechanical to tighten the silk mesh to the aluminum frame and maintain tension. It is the first step of making the screen plate. It is often naming by the source of tension: the method of mechanical is called a mechanical stretching machine, and the pneumatic method is called pneumatic stretching machine.
The process of the machine -pulling machine is the process of the silk mesh tension. The robotic arm of the sprocketing machine is continuously extended to the outside until the screen tension reaches the critical state, and then the Aluminum frame that is painted with adhesive mesh glue is up, so that they Stick up together.
Adopting a newly designed self -locking clip structure and avoid rubber tape broken , it has the characteristics of anti -pine and defense frame. It can withstand the maximum tension of 50N/㎝. The entire framework uses aluminum alloy profiles. The wheel synchronization conveys the power to ensure that multiple mesh -sided tensile mesh is synchronized, the tensile is uniform and stable. At a time, it can pull a multi -size mesh frame with different sizes, which is high efficiency.

Stretching Machine //Usage and characters
Guide	Currently on the market the most common type of mechanical tension and pneumatic pulled.; Free Stretching Machine sliding rail can of screen frame of different sizes; Cylinder to force the silk frame on the workbench in close contact with the clamping of the mesh in the frame folder; Rotary handwheel tension in accordance with the appropriate mesh taut surface of the screen frame. Can stretch to more than one screen frame; Collectively referred to all manually tighten the mesh stretching machine to become pneumatic stretching machine for mechanical cylinder drive to pull the silk stretching machine, pneumatic pulling machines suitable for high accuracy and high tension screen plate of the production, while the screen plate of the production of mechanical stretching machine is suitable for most ordinary accuracy and tension.
Application fields	Nylon silk,; PET Silk, Stainless steel silk.
Stretching machine //Parameter
Technical parameters	SM-120160TS	SM-160210TS
	Max tighten area：1200×1600mm; Dimension：1500×1800×800mm; Net weight：95kg; Max silk tension：30N/CM.	Max tighten area：1600×2100mm; Dimension：2000×2300×800mm; Net weight：115kg; Max silk tension：30N/CM.
Works supply	5-Bar Compress air
Package list	Package size: 17901040610mm; Gross weight: 135kg; CBM: 1.136
H.S.Code	8443198000
Certificate	CE
Stretching Machine //Advantage
Function	High-strength aluminum rack; Push-pull free retractable guide rod; Pneumatic given network to make the tension more uniform and more stable to prevent the mesh torn; Manually pull the net, micro adjustment, conducive to the tension of flexibility and control; High-strength aluminum alloy pull the net head, the screening is more stable; Free disassembly, easy to move.

Application:	The stretching screen machine is a device that uses the power of mechanical to tighten the silk mesh to the aluminum frame and maintain tension. It is the first step of making the screen plate. It is often naming by the source of tension: the method of mechanical is called a mechanical stretching machine, and the pneumatic method is called pneumatic stretching machine. The process of the machine -pulling machine is the process of the silk mesh tension. The robotic arm of the sprocketing machine is continuously extended to the outside until the screen tension reaches the critical state, and then the Aluminum frame that is painted with adhesive mesh glue is up, so that they Stick up together. Adopting a newly designed self -locking clip structure and avoid rubber tape broken , it has the characteristics of anti -pine and defense frame. It can withstand the maximum tension of 50N/㎝. The entire framework uses aluminum alloy profiles. The wheel synchronization conveys the power to ensure that multiple mesh -sided tensile mesh is synchronized, the tensile is uniform and stable. At a time, it can pull a multi -size mesh frame with different sizes, which is high efficiency.
