Model: | WEW-300B |
---|---|
Brand: | Liangong |
Origin: | Made In China |
Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
Label: | tensile tester , UTM , TTM |
Price: |
US $9800
/ set
|
Min. Order: | 1 set |

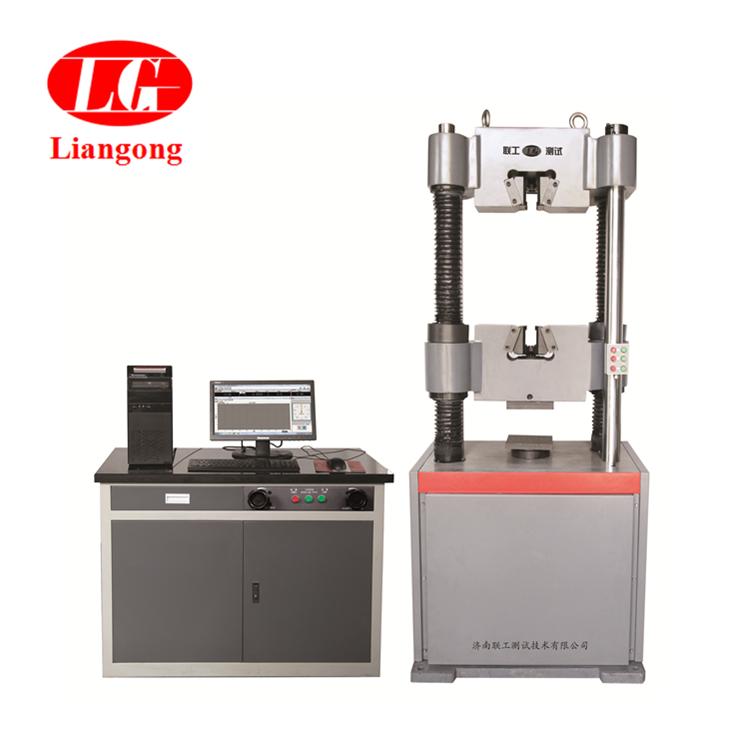

WEW Computer screen display series, all kinds of parametes and curves can display on the computer screen real-timely, which also have the functions of printing test reports and data processing.
It adopts cylinder down-setting host, mainly used for metal, nonmetal tensile,compression, bend and shear test. It is applicable to metallurgy, construction, light industry, aviation, spaceflight, materials,universities and colleges,scientific research institutes and other fields.
The test operation and data processing are in accordance with national standard of GB228-2002.
Model | WEW-300B | WEW-600B | WEW-1000B | WEW-2000B |
Max.test force (kN) | 300 | 600 | 1000 | 2000 |
Measuring range of force value | 2%-100%FS | |||
Relative error of indicating value | ±1% | |||
Deformation measurement device | extensometer | |||
Max.tensile space(including piston stroke) | 600mm | 600mm | 800mm | 1000mm |
Max.compression space(including piston stroke) | 500mm | 500mm | 700mm | 900mm |
Transmission mode | Chain Drive | |||
Safety protection device | software protection and mechanical limit protection | |||
Control function | special software | |||
Clamping diameter range of round sample (mm) | Φ10~Φ32 | Φ13~Φ40 | Φ13~Φ60 | Φ20~Φ70 |
Clamping diameter range of flat sample (mm) | 0~15 | 0~15 | 0~20 | 0~40 |
Upper and lower pressure plate size (mm0 | 170*170 | 205*205 | ||
Bending branch roll width (mm) | 140 | |||
Total power (kW) | 2.0 | 2.1 | 2.5 | 3.0 |
Dimension (mm) Host worktable |
800*600*1980 | 820*620*2100 | 1080*700*2500 | 1100*760*3000 |
1120*600*850 |
