Usage and Characteristics
1. The test machine adopts microcomputer control and high accuracy electro-hydraulic servo va e, drive precision two-way hydraulic cylinder, a variety of automatic control mode of the test force, displacement, deformation, to complete the test a variety of materials, specifications, manhole covers, water grate cover, well grate.

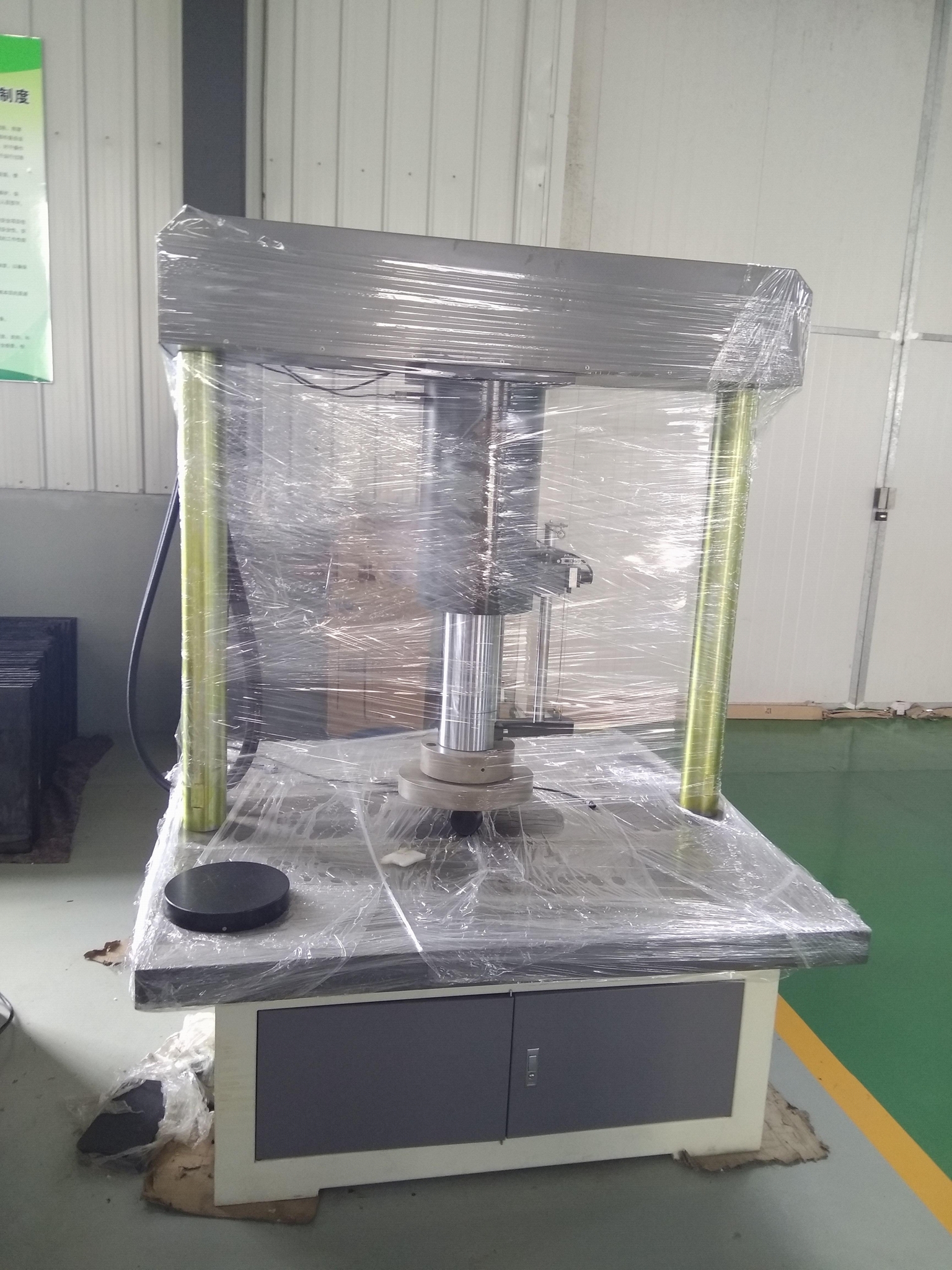

2. The host machine frame adopts two column structure, oil cylinder overhead; big working table 1500x1400mm; loading and unloading the manhole cover is very convenient, good stability.
3. The loading system: uses the high accuracy hydraulic servo va e, ensure that the system is efficient, low noise, fast response; the key components of the oil pump, servo va e are imported.
Main Technical Parameter
Item Technical Parameter
Max. Test Force 600kN
Measuring Range 2%-100%FS
Testing Machine Indicating Accuracy ≤±1%
Compression Space 0-350mm
Effective Width between Two Columns 1200mm
Effective Length Before and After the Workbench 1400mm
Spherical Upper Head Size Φ250*40mm
Solid Block Extensible Configuration
Piston Stroke 0-200mm
Rate of Loading 0.02%—2%FS/s
Deformation Measurement Accuracy Digital Display Micrometer0-10;0.01mm
Overall Dimension (Don’t include the piston stroke) 1500*1400*1980mm
Servo Oil Source Control Cabinet Size 1120*600*849mm
Bench Height Distance 400mm
Machine Power 2.2kW
