6-40mm Steel bar cold bend tests and rebend tester

6-40mm Steel bar cold bend tests and rebend tester
Model:GW-40B
Brand:Liangong
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:bending tester , steel bending tester , rebar bending tester
Price: US $7300 / set
Min. Order:1 set
Inquire Now

Product Description

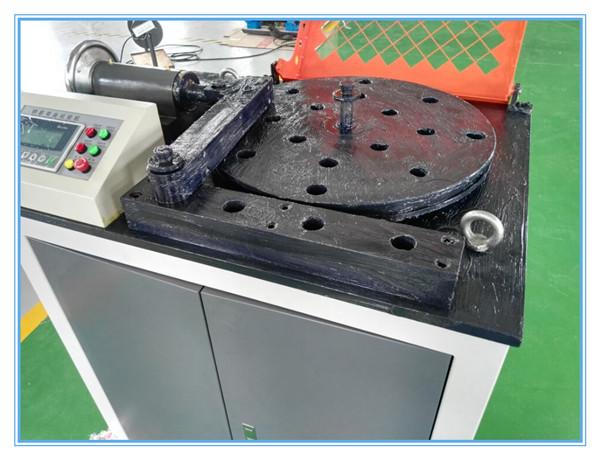

6-40mm Steel bar cold bend tests and rebend tester GW-40B

Overview

GW Type Steel Bar Bending Testing Machines is special equipments which process cold bend tests and plane rebend tests. Its main technical parameters meet GB1499.2-2007 <The second part of Steel tube for the reinforcement of concrete: hot rolled ribbed steel bars>, YB/T5126-2003 <Program of steel bars plane rebend tests> and satisfy the stipulation and requirement of ISO10065:1900 about cold bend tests and plane rebend tests. It is the ideal testing equipment which is used for testing bend or rebend performance of steel bars for Steel industries and Building Units.

The steel bar bending testing machine has lots of advantages like tight structure, easy to operate, direct digital display of bend angle, easy maintenance and lubrication, steady and safe running, and low noise and so on.

Technical parameters

Model GW-40B GW-50B
Range of diameter of steel bars φ 6-φ40mm φ 6-φ50mm
Angle of bend 0°-180° with the arbitrary set 0°-180° with the arbitrary set
Angle of rebend   0°-180° with the arbitrary set 0°-180° with the arbitrary set
Rotational speed of worktable    ≤1.4r/min
Distance of roller center   245mm 366mm
Diameter of worktable  φ 560mm  φ 860mm
Outline size of the host   1000*750*1200mm 1320*1185*1380mm
Weight  750kg 2000kg
Power 380V 50Hz 1.5kw 380V 50Hz 3kw
6-40mm Steel bar cold bend tests and rebend tester  16-40mm Steel bar cold bend tests and rebend tester  26-40mm Steel bar cold bend tests and rebend tester  36-40mm Steel bar cold bend tests and rebend tester  46-40mm Steel bar cold bend tests and rebend tester  5
